9.2 Typical Application
The following design procedure can be used to select component values for the TPS65251.
A. VIN pins require local decoupling capacitors.

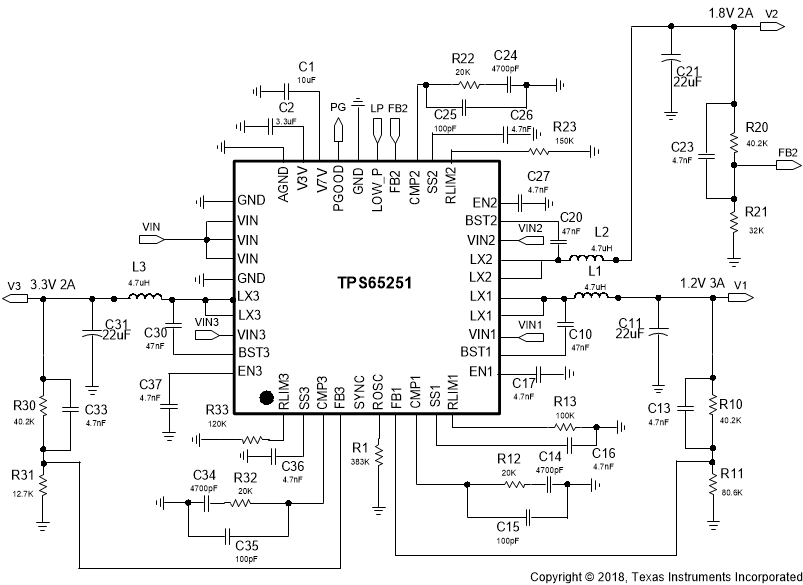

Figure 21. Typical Application Circuit
