8.2.1 DiSEqc1.x Support

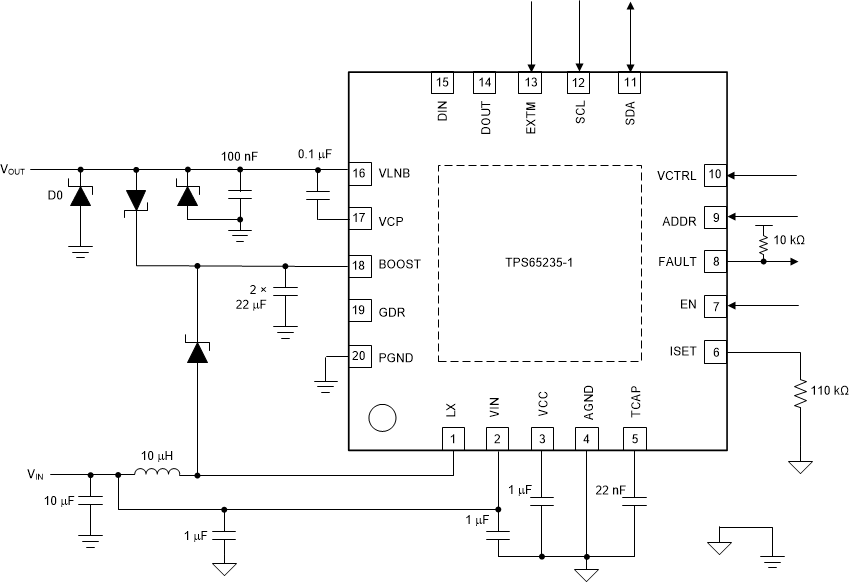

TPS65235-1 can operate in I2C and non-I2C interface mode. Figure 8-1 shows the application with the device in I2C interface mode to support DiSEqC 1.x application. In non-I2C mode, the SCL, SDA, and ADDR pins can be floating.
Figure 8-1 Application for DiSEqc1.x Support
