8.2.2 DiSEqc2.x Support
The TPS65235-1 can support both DiSEqC 1.x application and DiSEqC 2.x application. Figure 8-18 shows the application for supporting DiSEqC 2.x application.

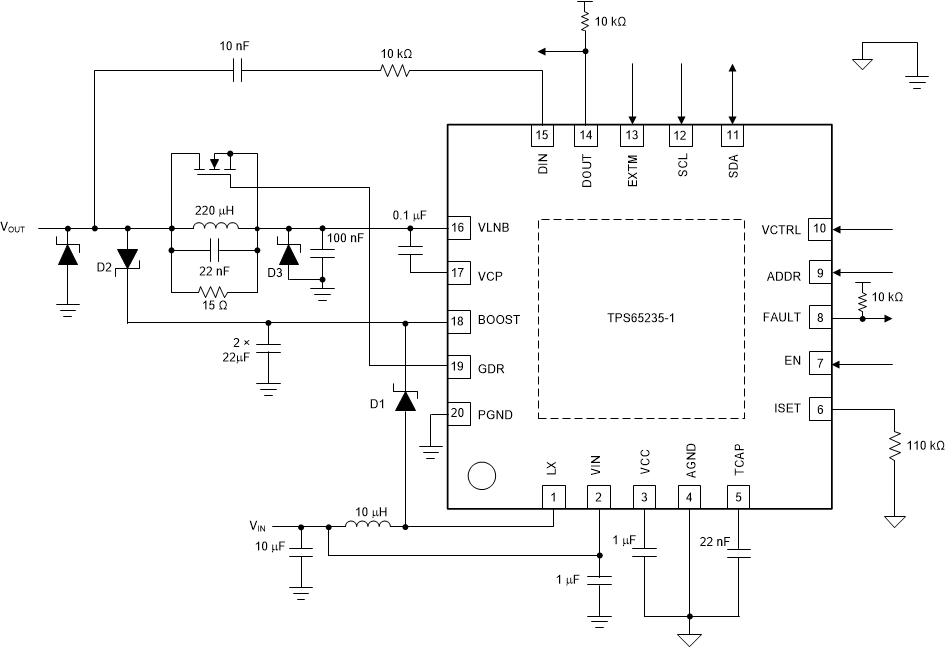

Figure 8-18 Application Schematic for DiSEqc2.x Support
