6.7 Typical Characteristics

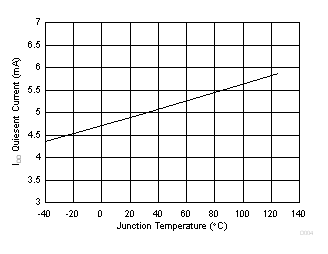

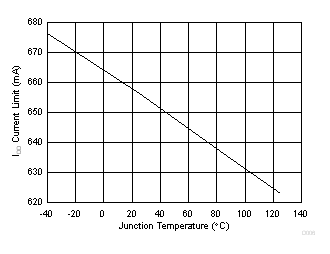

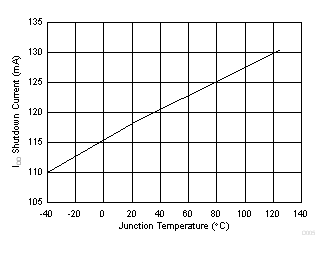

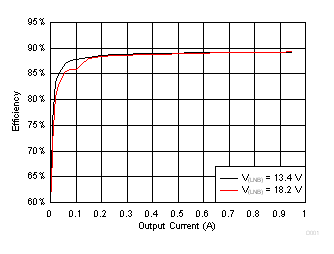

TA = 25°C, VIN = 12 V, fSW = 1 MHz, CBoost = (2 × 22 μF / 35 V) (unless otherwise noted)
| L = 4.7 μH |

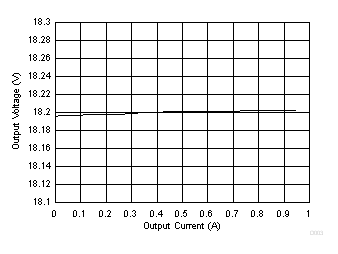

| VVLNB =18.2 V |

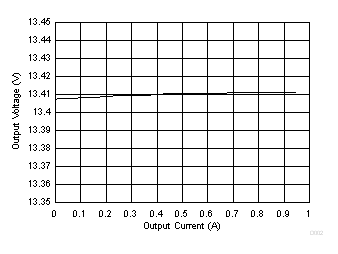

| VVLNB = 13.4 V |
| ILOAD = 650 mA |
