10.2 Layout Example
The bottom layer is a large GND plane connected by vias.

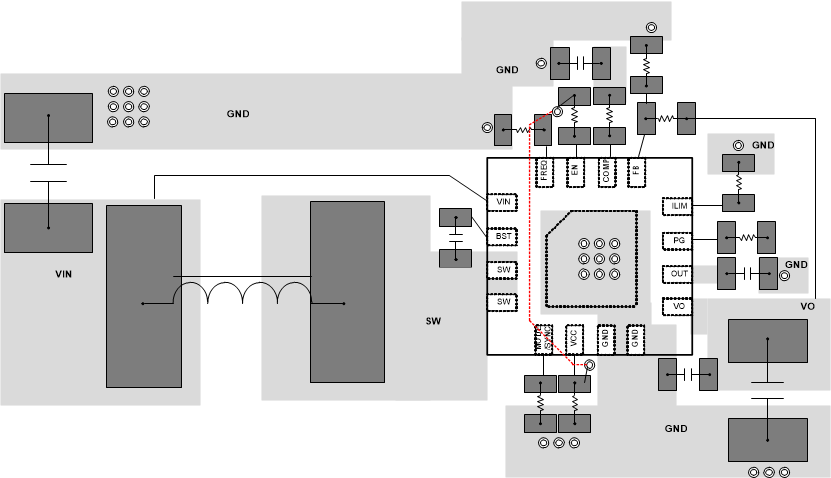

Figure 10-1 Recommended
Layout
