ZHCSE52B September 2015 – May 2019 TPS57140-EP
PRODUCTION DATA.
- 1 特性
- 2 應用范圍
- 3 說明
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
- 6 Specifications
-
7 Detailed Description
- 7.1 Overview
- 7.2 Functional Block Diagram
- 7.3
Feature Description
- 7.3.1 Fixed Frequency PWM Control
- 7.3.2 Slope-Compensation Output Current
- 7.3.3 Bootstrap Voltage (Boot)
- 7.3.4 Low-Dropout Operation
- 7.3.5 Error Amplifier
- 7.3.6 Voltage Reference
- 7.3.7 Adjusting the Output Voltage
- 7.3.8 Enable and Adjusting UVLO
- 7.3.9 Slow-Start or Tracking Pin (SS/TR)
- 7.3.10 Overload Recovery Circuit
- 7.3.11 Constant Switching Frequency and Timing Resistor (RT/CLK Pin)
- 7.3.12 Overcurrent Protection and Frequency Shift
- 7.3.13 Selecting the Switching Frequency
- 7.3.14 How to Interface to RT/CLK Pin
- 7.3.15 Power Good (PWRGD Pin)
- 7.3.16 Overvoltage Transient Protection (OVTP)
- 7.3.17 Thermal Shutdown
- 7.3.18 Small-Signal Model for Loop Response
- 7.3.19 Simple Small-Signal Model for Peak-Current-Mode Control
- 7.3.20 Small-Signal Model for Frequency Compensation
- 7.4 Device Functional Modes
-
8 Application and Implementation
- 8.1 Application Information
- 8.2
Typical Application
- 8.2.1 Design Requirements
- 8.2.2
Detailed Design Procedure
- 8.2.2.1 Selecting the Switching Frequency
- 8.2.2.2 Output Inductor Selection (LO)
- 8.2.2.3 Output Capacitor
- 8.2.2.4 Catch Diode
- 8.2.2.5 Input Capacitor
- 8.2.2.6 Slow-Start Capacitor
- 8.2.2.7 Bootstrap Capacitor Selection
- 8.2.2.8 UVLO Set Point
- 8.2.2.9 Output Voltage and Feedback Resistors Selection
- 8.2.2.10 Compensation
- 8.2.3 Application Curves
- 9 Power Supply Recommendations
- 10Layout
- 11器件和文檔支持
- 12機械、封裝和可訂購信息
6.5 Electrical Characteristics
TJ = –55°C to 150°C, VIN = 3.5 to 42 V (unless otherwise noted)| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | ||
|---|---|---|---|---|---|---|---|
| SUPPLY VOLTAGE (VIN PIN) | |||||||
| Operating input voltage | 3.5 | 42 | V | ||||
| Internal UVLO threshold | No voltage hysteresis, rising and falling | 2.5 | V | ||||
| Shutdown supply current | EN = 0 V, 25°C, 3.5 V ≤ VIN ≤ 60 V | 1.5 | 4 | μA | |||
| EN = 0 V, 125°C, 3.5 V ≤ VIN ≤ 60 V | 1.9 | 6.5 | |||||
| Operating: nonswitching supply current | VSENSE = 0.83 V, VIN = 12 V, 25°C | 116 | 140 | ||||
| ENABLE AND UVLO (EN PIN) | |||||||
| Enable threshold voltage | No voltage hysteresis, rising and falling, 25°C | 1.15 | 1.25 | 1.36 | V | ||
| Input current | Enable threshold 50 mV | –3.8 | μA | ||||
| Enable threshold –50 mV | –0.9 | ||||||
| Hysteresis current | –2.9 | μA | |||||
| VOLTAGE REFERENCE | |||||||
| Voltage reference | TJ = 25°C | 0.790 | 0.8 | 0.808 | V | ||
| 0.780 | 0.8 | 0.819 | |||||
| HIGH-SIDE MOSFET | |||||||
| On-resistance | VIN = 3.5 V, BOOT-PH = 3 V | 300 | mΩ | ||||
| VIN = 12 V, BOOT-PH = 6 V | 200 | 410 | |||||
| ERROR AMPLIFIER | |||||||
| Input current | 50 | nA | |||||
| Error amplifier transconductance (gm) | –2 μA < ICOMP < 2 μA, VCOMP = 1 V | 97 | μS | ||||
| Error amplifier transconductance (gm) during slow start | –2 μA < ICOMP < 2 μA, VCOMP = 1 V,
VVSENSE = 0.4 V |
26 | μS | ||||
| Error amplifier dc gain | VVSENSE = 0.8 V | 10 000 | V/V | ||||
| Error amplifier bandwidth | 2700 | kHz | |||||
| Error amplifier source/sink | V(COMP) = 1 V, 100-mV overdrive | ±7 | μA | ||||
| COMP to switch current transconductance | 6 | S | |||||
| CURRENT LIMIT | |||||||
| Current-limit threshold | VIN = 12 V, TJ = 25°C | 1.8 | 2.7 | A | |||
| THERMAL SHUTDOWN | |||||||
| Thermal shutdown | 182 | °C | |||||
| TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK PIN) | |||||||
| Switching-frequency range using RT mode | VIN = 12 V | 100 | 2500 | kHz | |||
| fSW | Switching frequency | VIN = 12 V, RT = 200 kΩ | 450 | 581 | 720 | kHz | |
| Switching-frequency range using CLK mode | VIN = 12 V | 300 | 2200 | kHz | |||
| Minimum CLK pulse duration | 40 | ns | |||||
| RT/CLK high threshold | VIN = 12 V | 1.9 | 2.2 | V | |||
| RT/CLK low threshold | VIN = 12 V | 0.45 | 0.7 | V | |||
| RT/CLK falling-edge to PH rising-edge delay | Measured at 500 kHz with RT resistor in series | 60 | ns | ||||
| PLL lock in time | Measured at 500 kHz | 100 | μs | ||||
| SLOW START AND TRACKING (SS/TR) | |||||||
| Charge current | VSS/TR = 0.4 V | 2 | μA | ||||
| SS/TR-to-VSENSE matching | VSS/TR = 0.4 V | 45 | mV | ||||
| SS/TR-to-reference crossover | 98% nominal | 1 | V | ||||
| SS/TR discharge current (overload) | VSENSE = 0 V, V(SS/TR) = 0.4 V | 112 | μA | ||||
| SS/TR discharge voltage | VSENSE = 0 V | 54 | mV | ||||
| POWER GOOD (PWRGD PIN) | |||||||
| VVSENSE | VSENSE threshold | VSENSE falling | 92% | ||||
| VSENSE rising | 94% | ||||||
| VSENSE rising | 109% | ||||||
| VSENSE falling | 107% | ||||||
| Hysteresis | VSENSE falling | 2% | |||||
| Output-high leakage | VSENSE = VREF, V(PWRGD) = 5.5 V, 25°C | 10 | nA | ||||
| On-resistance | I(PWRGD) = 3 mA, VSENSE < 0.79 V | 50 | Ω | ||||
| Minimum VIN for defined output | V(PWRGD) < 0.5 V, II(PWRGD) = 100 μA | 0.95 | 1.5 | V | |||
1. Electromigration fail mode = Time at temperature with bias
2. Silicon operating life design goal is 10 years at 105°C junction temperature (does not include package interconnect life).
3. The predicted operating lifetime versus junction temperature is based on reliability modeling and available qualification data.

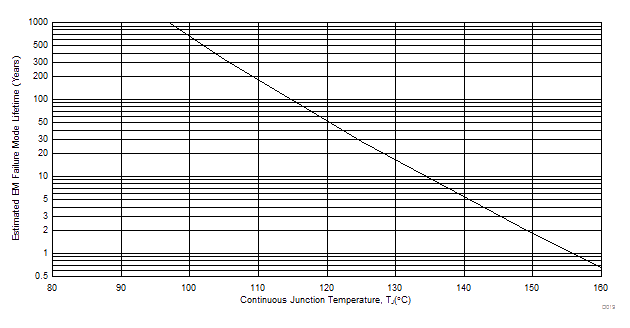

Figure 1. Predicted Lifetime Derating Chart for TPS57140-EP
