8.2 Typical Application
The TPS552882-Q1 provides a small size solution for USB PD power supply application with the input voltage ranging from 9 V to 36 V.

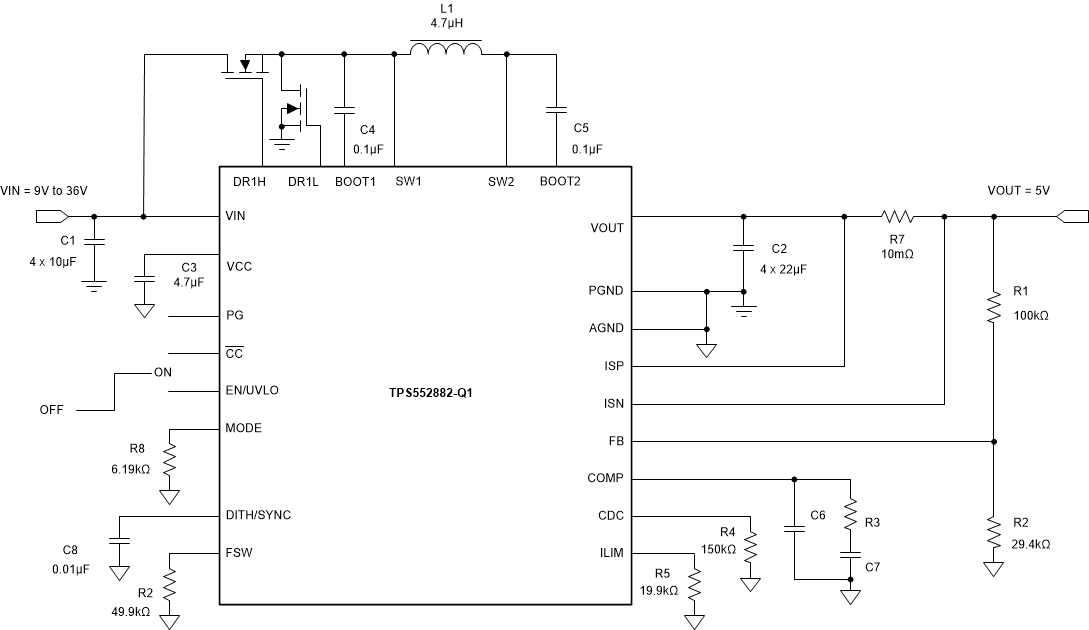

Figure 8-1 5-V Power
Supply With 9-V to 36-V Input Voltage
