6.3.7.1 Current Limit (ILIM) Functionality

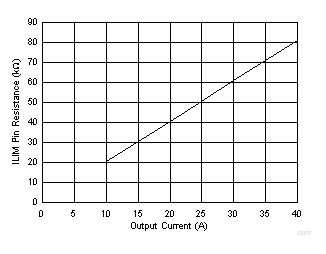

Figure 6-4 Current Limit Resistance vs OCP Valley Overcurrent LimitThe ILIM pin sets the OCP level. Connect the ILIM pin to GND through the voltage setting resistor, RILIM. To provide both good accuracy and a cost-effective solution, the TPS549B22 device supports temperature compensated internal MOSFET RDS(on) sensing.
Also, the TPS549B22 device performs both positive and negative inductor current limiting with the same magnitudes. The positive current limit normally protects the inductor from saturation that causes damage to the high-side FET and low-side FET. The negative current limit protects the low-side FET during OVP discharge.
The voltage between GND pin and SW pin during the OFF time monitors the inductor current. The current limit has 1200 ppm/°C temperature slope to compensate the temperature dependency of the on-resistance (RDS(on)). The GND pin is used as the positive current sensing node.
The TPS549B22 device uses cycle-by-cycle over-current limiting control. The inductor current is monitored during the OFF-state and the controller maintains the OFF-state during the period that the inductor current is larger than the overcurrent ILIM level. VILIM sets the valley level of the inductor current.
