6.3.6 EN_UVLO Pin Functionality
The EN_UVLO pin drives an input buffer with accurate threshold and can be used to program the exact required turnon and turnoff thresholds for switcher enable, VDD UVLO or VIN UVLO (if VIN and VDD are tied together). If desired, an external resistor divider can be used to set and program the turnon threshold for VDD or VIN UVLO.

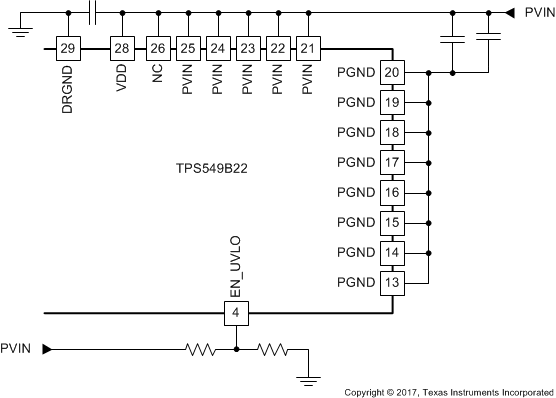

Figure 6-3 shows how to program the input voltage UVLO using the EN_UVLO pin.
Figure 6-3 Programming the UVLO Voltage
