8.2.5 24-V to 4.2-V GSM Power Supply
This application circuit is also designed to power GSM-GPRS modules. For a more-detailed example, see Creating GSM-GPRS Power Supply, application report SLVA412.

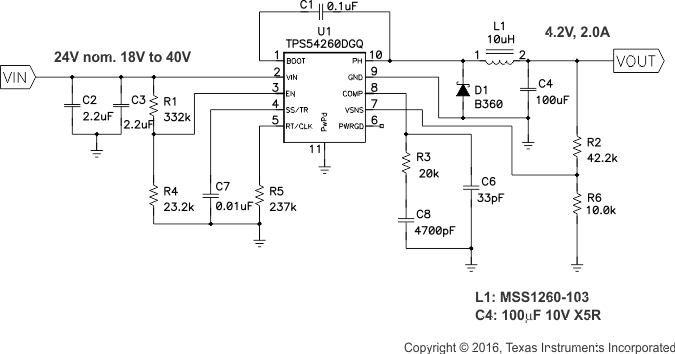

Figure 66. 24-V to 4.2-V GSM Power Supply
