8.2.2 Inverting Power Supply
This application circuit shows how to use the TPS54260 to convert a positive-input voltage to a negative-output voltage. Ideal applications are amplifiers requiring a negative power supply. For a more-detailed example, see Create an Inverting Power Supply From a Step-Down Regulator, application report SLVA317.

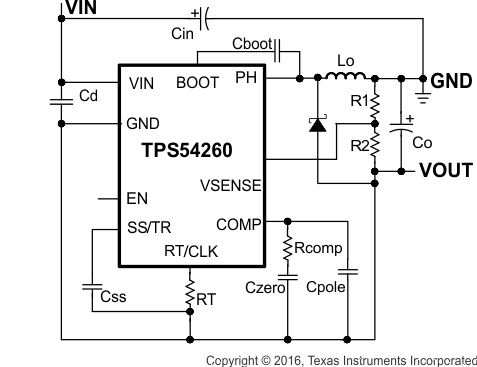

Figure 63. TPS54260 Inverting Power Supply from SLVA317 Application Note
