3 說明
TPS541620 是一款高度集成的非隔離式雙路直流/直流轉換器，具有較高的工作頻率，采用 3mm × 5mm 封裝。該器件可配置為兩個單獨的 6A 軌道，也可合并驅動一個 12A 電流負載。該器件實現了具有可選斜坡幅度配置的固定頻率高級電流模式控制 (ACM)，可優化環路帶寬。兩個模式選擇引腳（MODE1 和 2）用于選擇開關頻率、配置、時鐘相位延遲和內部補償。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS541620 | VQFN-HR (25) | 3mm × 5mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

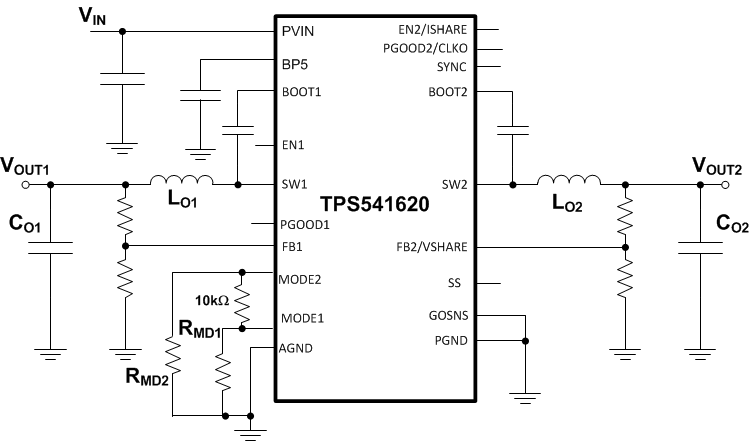

簡化原理圖（雙路輸出）
