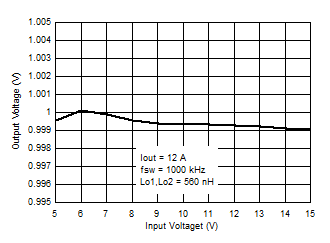

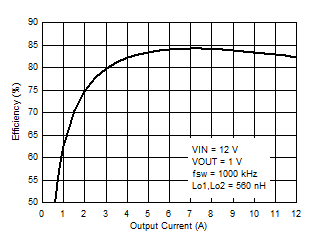

Figure 8-34 Efficiency
Figure 8-36 Line Regulation

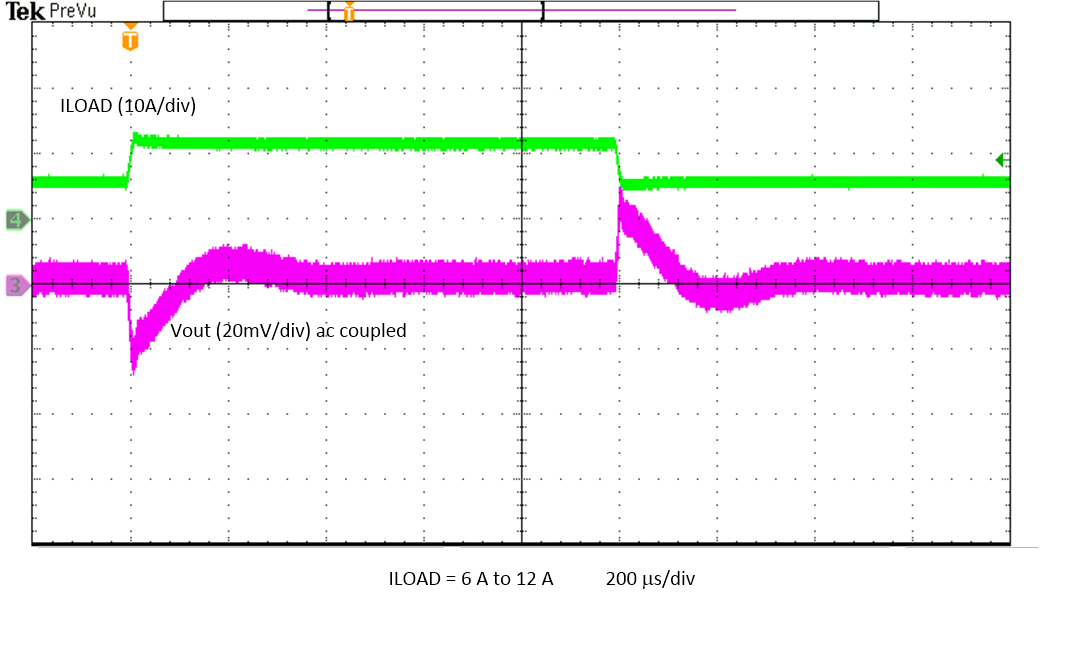

Figure 8-38 Load
Transient

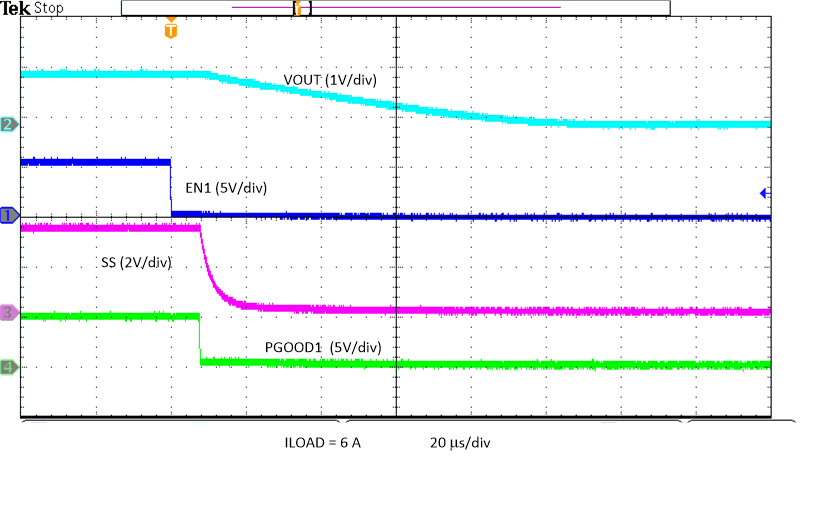

Figure 8-40 Power

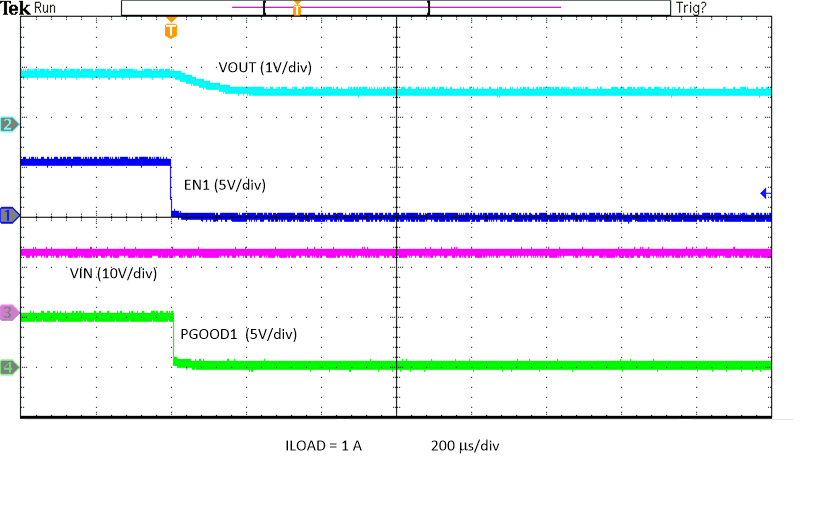

Down with EN
Figure 8-42 Power

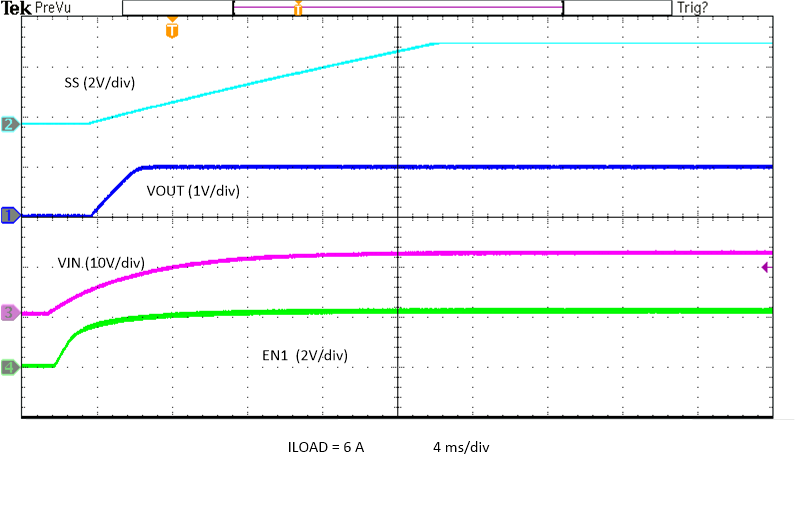

Up with EN – Prebias
Figure 8-44 Power
Down with VIN

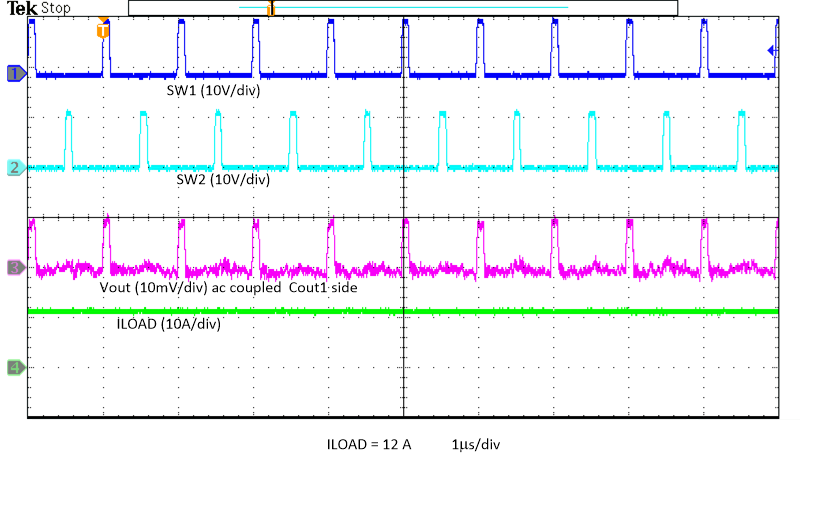

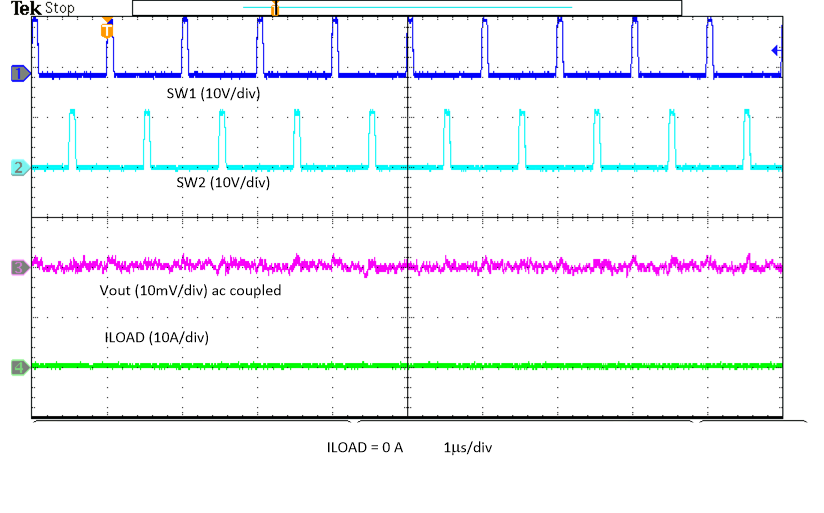

Figure 8-46 Output Ripple – 12-A Load
Figure 8-48 Input

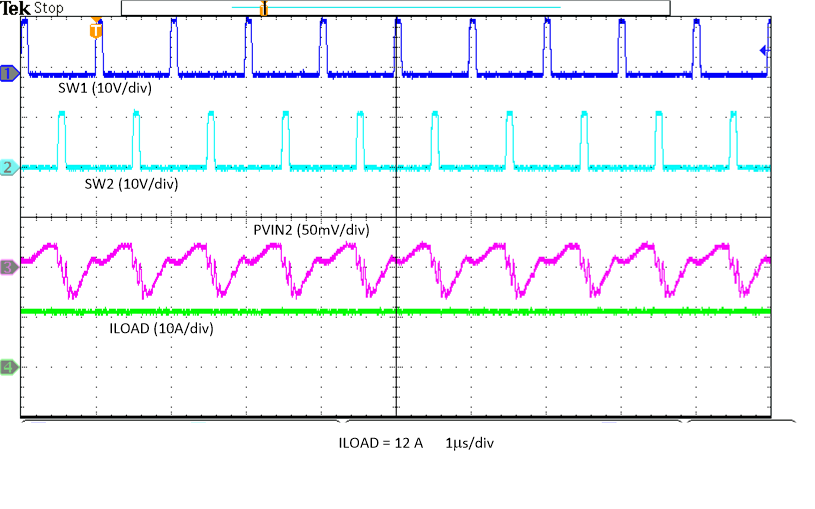

Ripple PVIN2 - 12-A Load

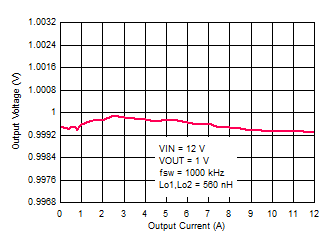

Figure 8-35 Load
Regulation

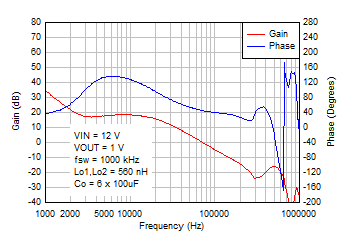

Figure 8-37 Bode Plot
Figure 8-39 Power

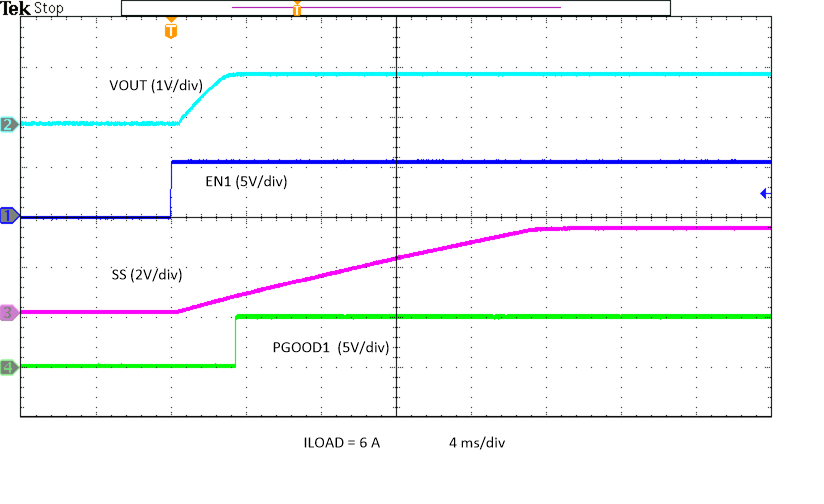

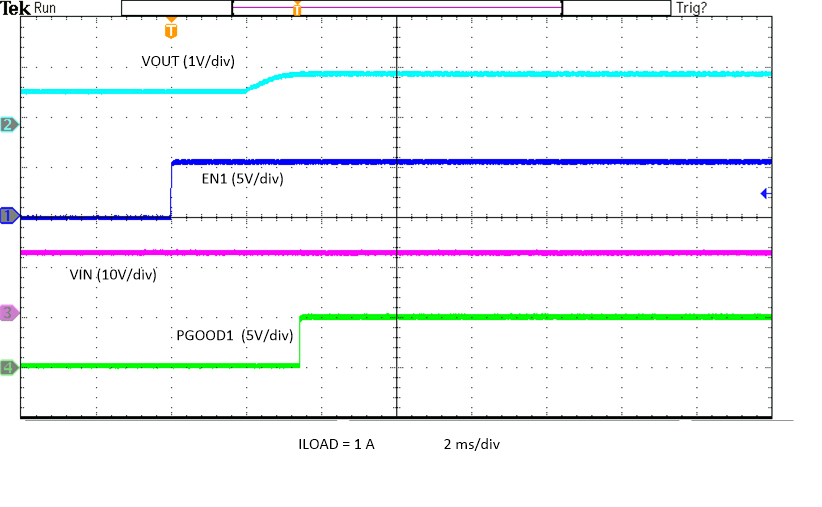

Up with EN

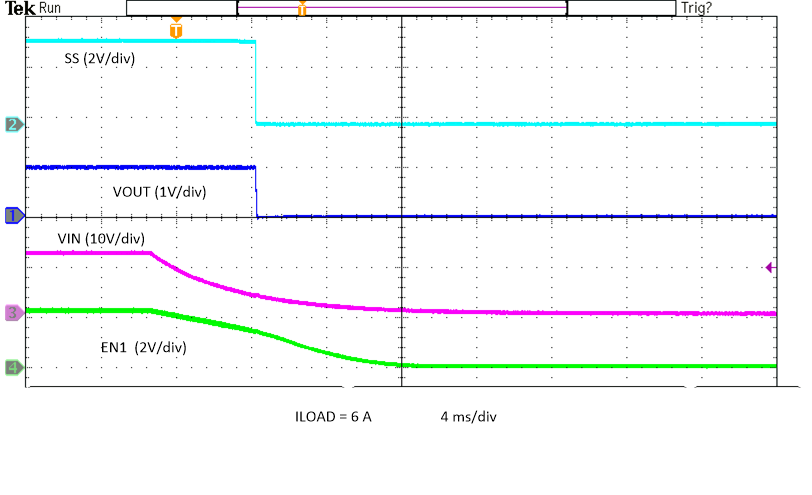

Figure 8-41 Power
Up with VIN
Figure 8-43 Power
Down with EN – Prebias
Figure 8-45 Output Ripple – No Load
Figure 8-47 Input

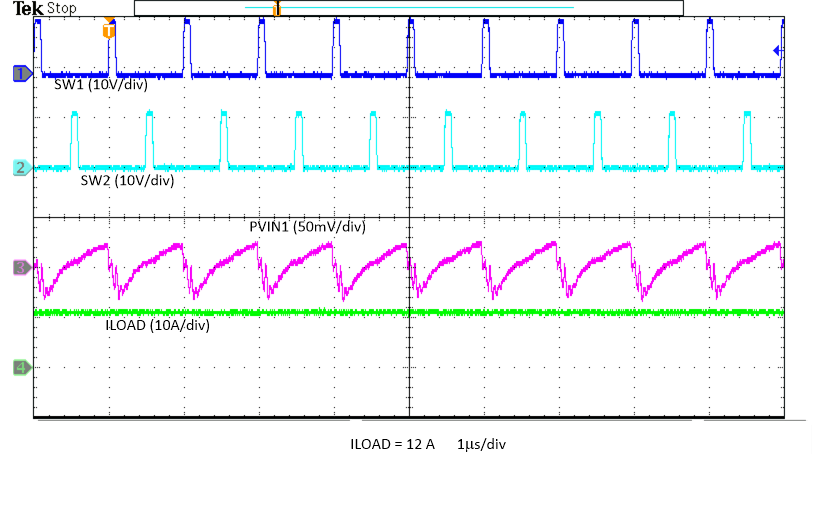

Ripple PVIN1 – 12-A Load

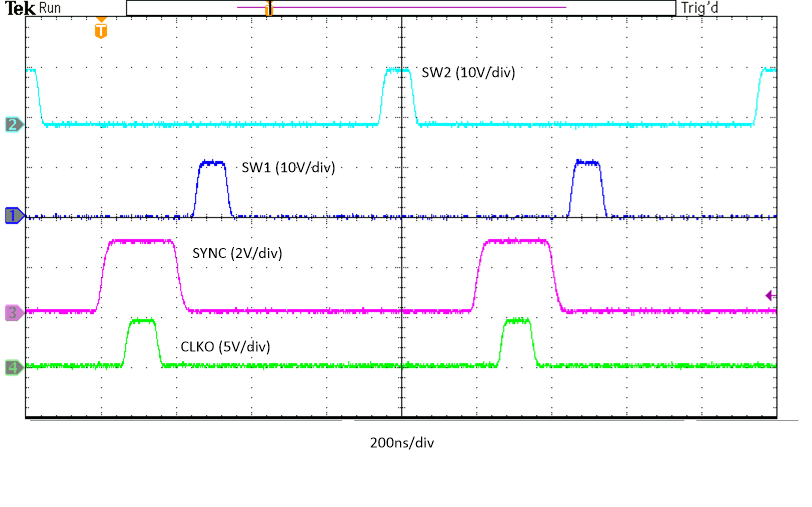

Figure 8-49 Sync
In to SW1, SW2 and CLKO Delay
