8.2.3 Application Curves

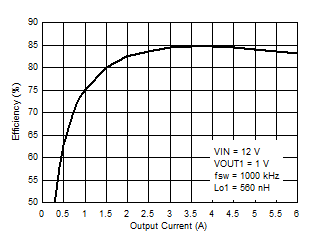

Figure 8-3 VOUT1 Efficiency

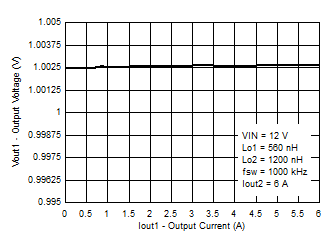

Figure 8-5 VOUT1 Load Regulation
Figure 8-7 VOUT1 Cross Regulation
Figure 8-9 Line Regulation
VOUT1

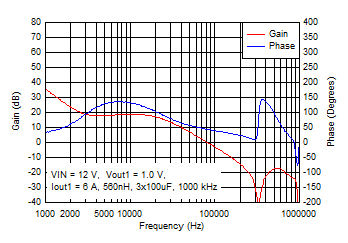

Figure 8-11 VOUT1 Bode
Plot

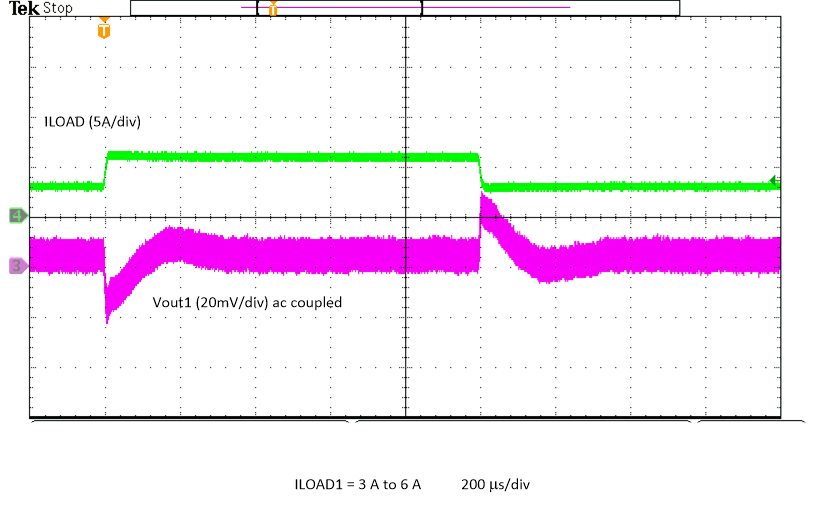

Figure 8-13 VOUT1 Load Transient
Figure 8-15 Power

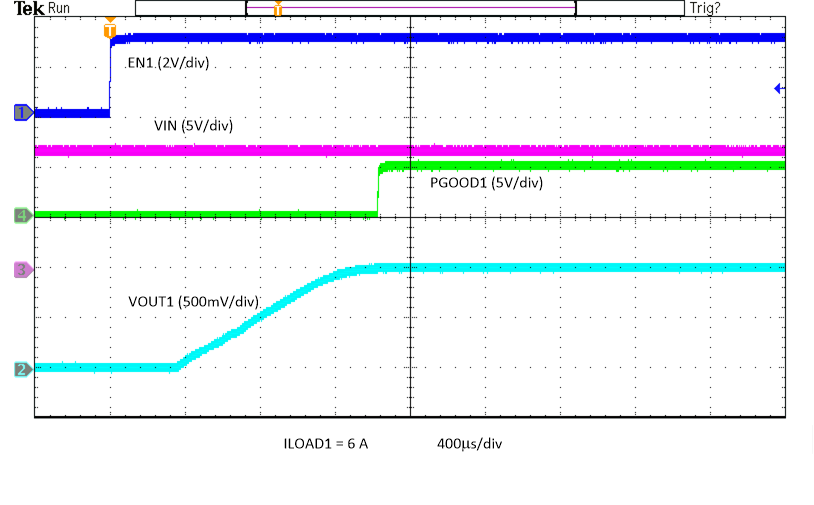

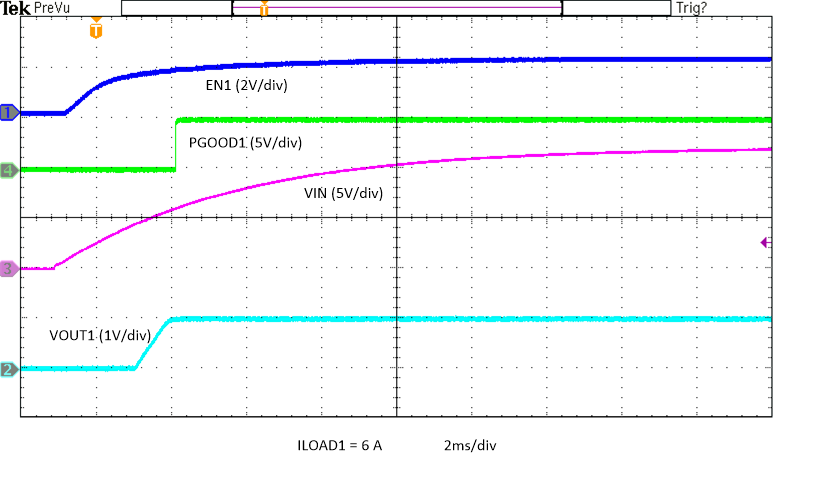

Up with EN 1

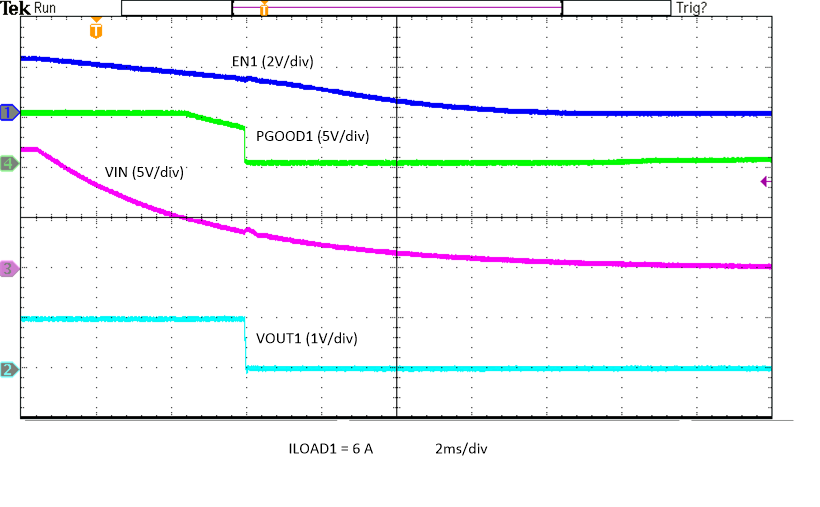

Figure 8-17 Power

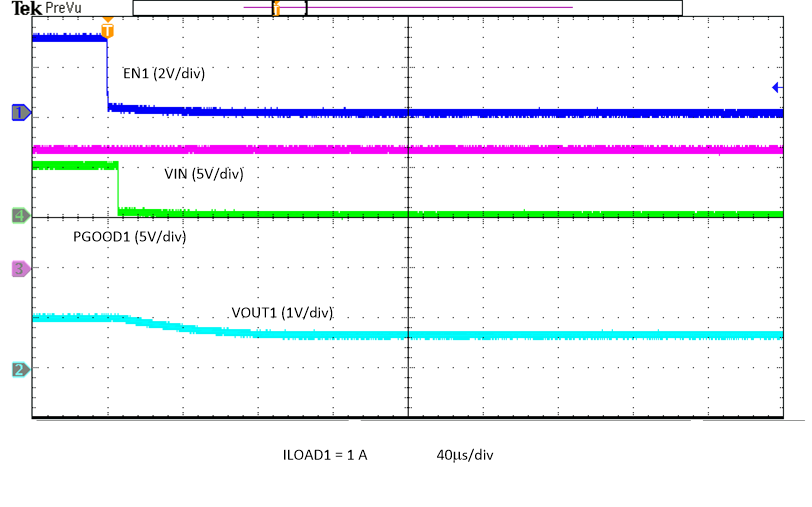

Down with EN 1
Figure 8-19 Power
Up with EN 1 with Pre Bias
Figure 8-21 Power
Down with EN 1 with Pre Bias
Figure 8-23 Power
Up with VIN VOUT1
Figure 8-25 Power

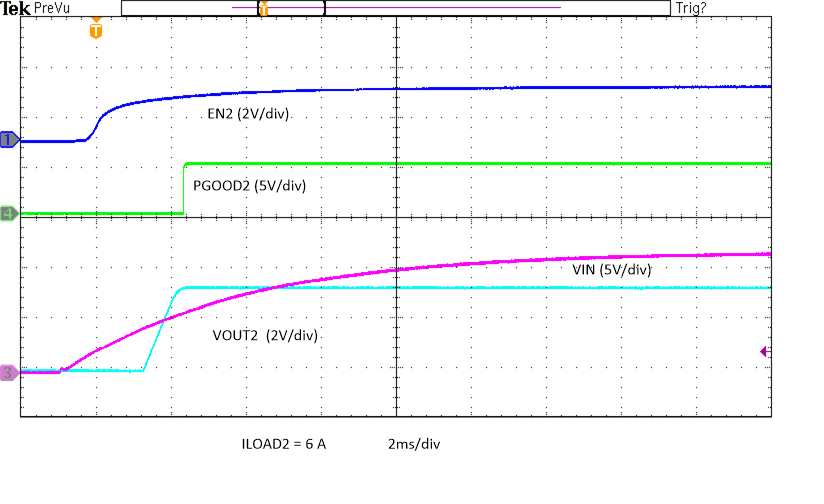

Up with VIN VOUT2
Figure 8-27 Sync
In to SW1 and SW2 Delay
Figure 8-29 VOUT2 Output Ripple – 6-A Load
Figure 8-31 Input
Ripple PVIN2 – 6-A Load

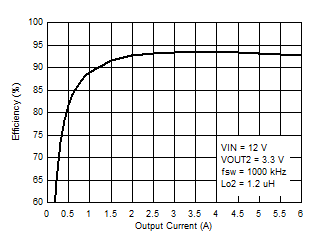

Figure 8-4 VOUT2 Efficiency

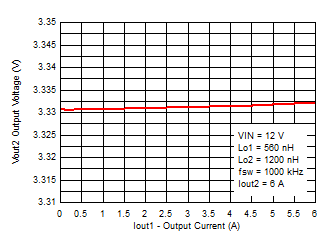

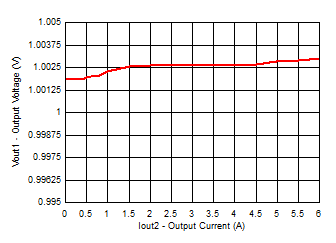

Figure 8-6 VOUT2 Load Regulation
Figure 8-8 VOUT2 Cross Regulation

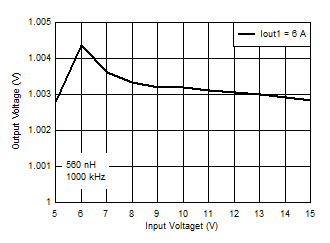

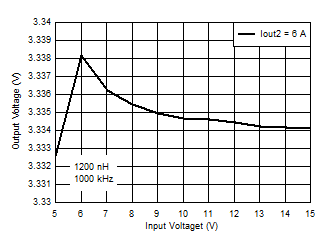

Figure 8-10 Line Regulation
VOUT2
Figure 8-12 VOUT2 Bode
Plot

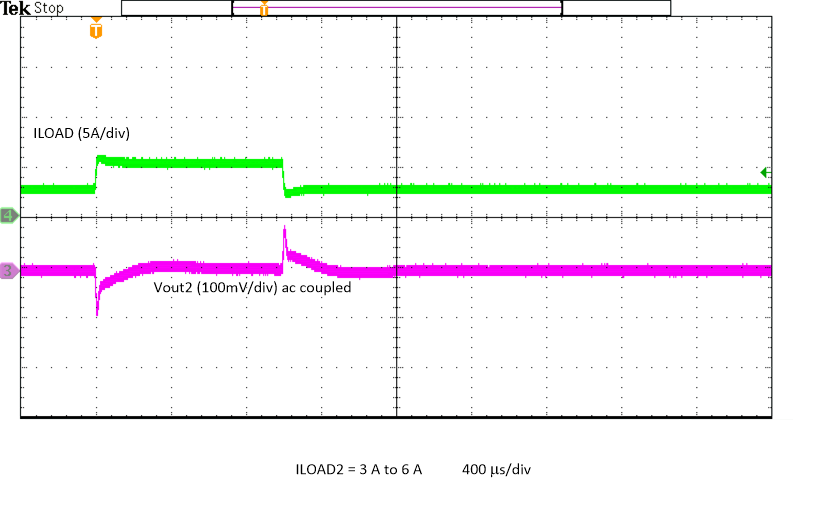

Figure 8-14 VOUT2 Load Transient
Figure 8-16 Power

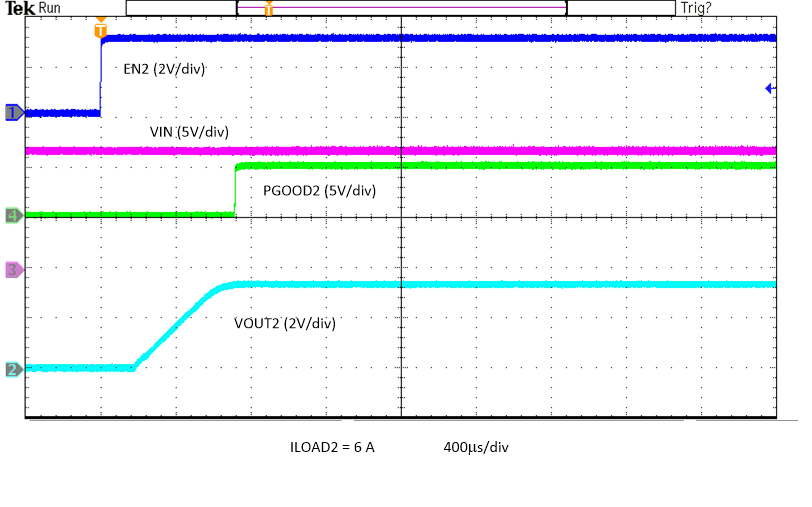

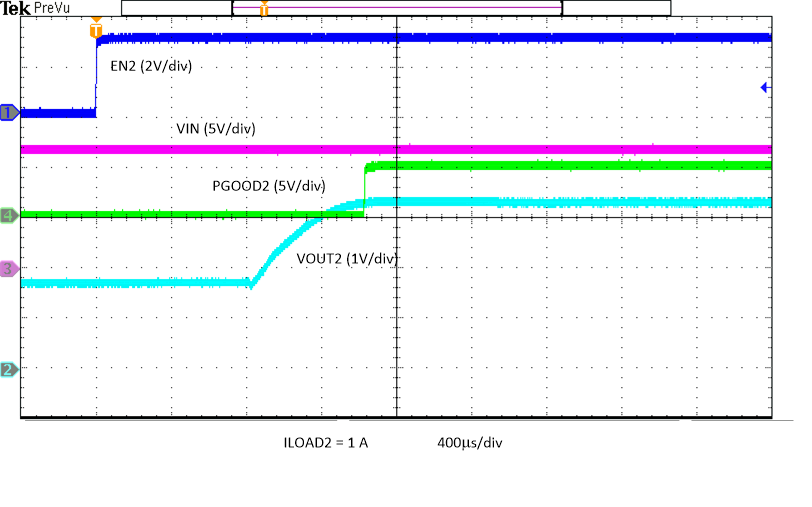

Up with EN 2
Figure 8-18 Power

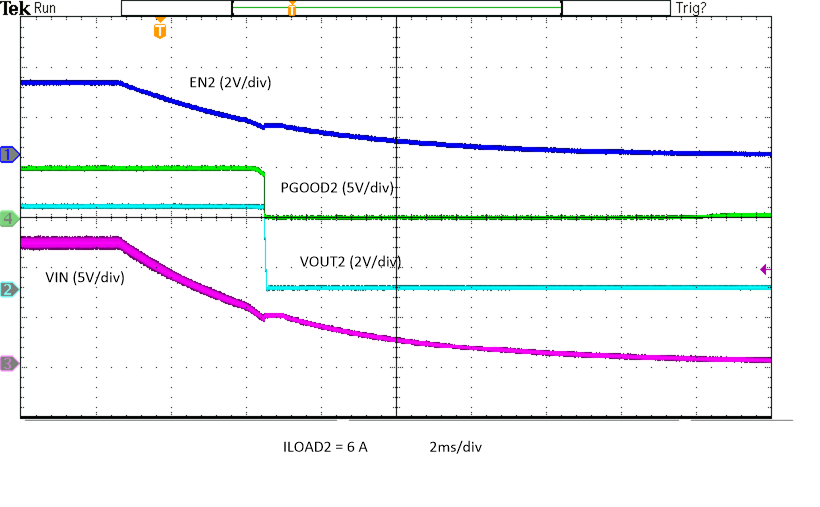

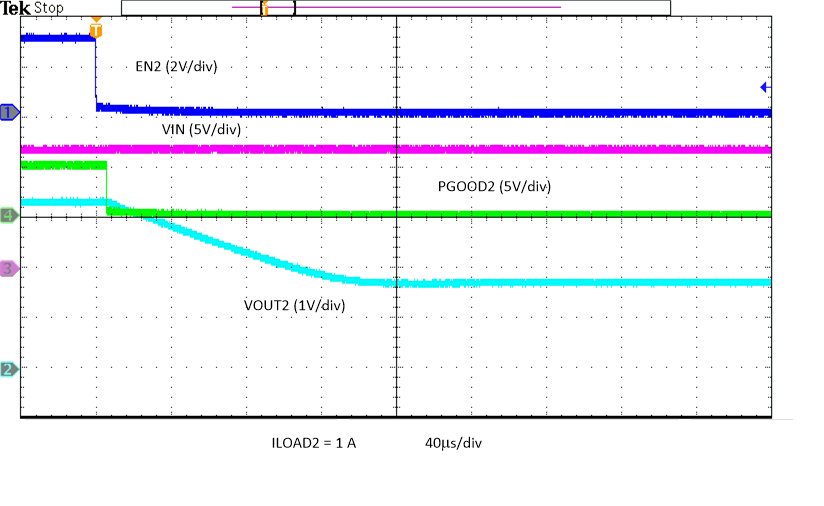

Down with EN 2
Figure 8-20 Power
Up with EN 2 with Pre Bias
Figure 8-22 Power
Down with EN 2 with Pre Bias
Figure 8-24 Power
Down with VIN VOUT1
Figure 8-26 Power

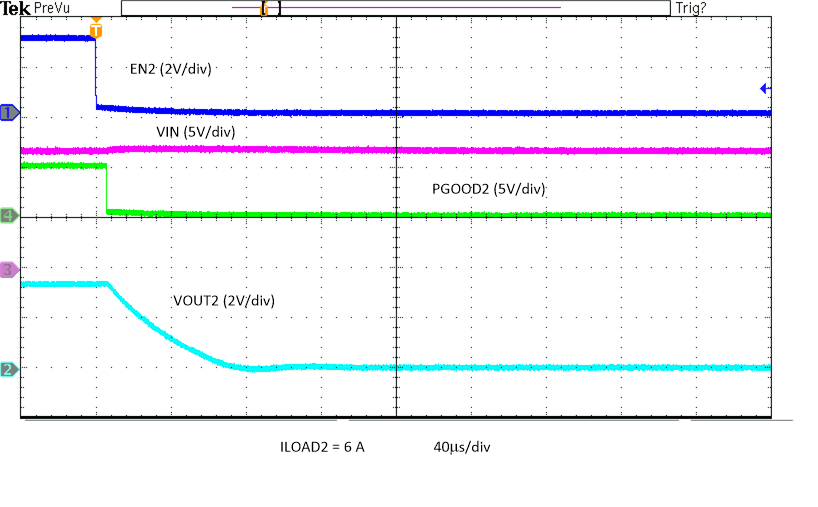

Down with VIN VOUT2

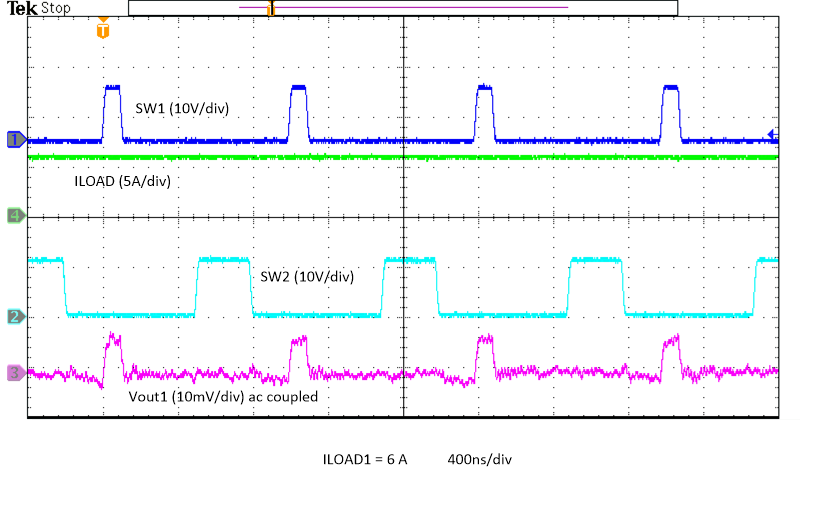

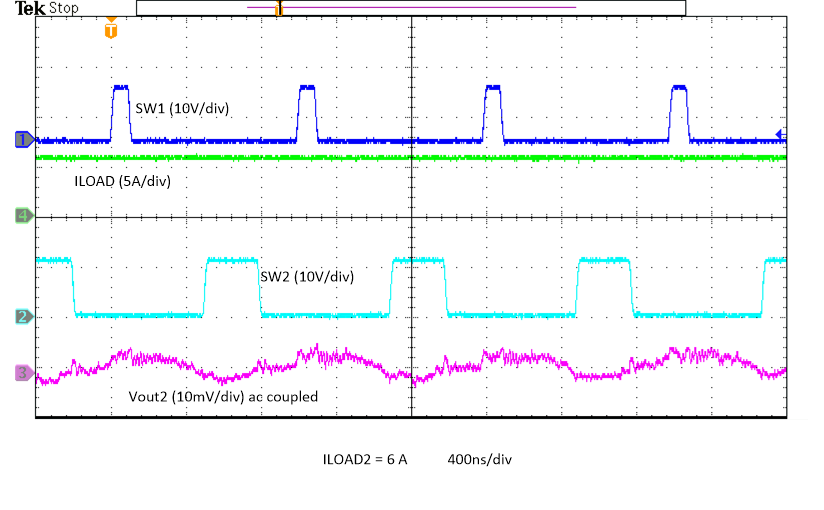

Figure 8-28 VOUT1 Output Ripple – 6-A Load
Figure 8-30 Input

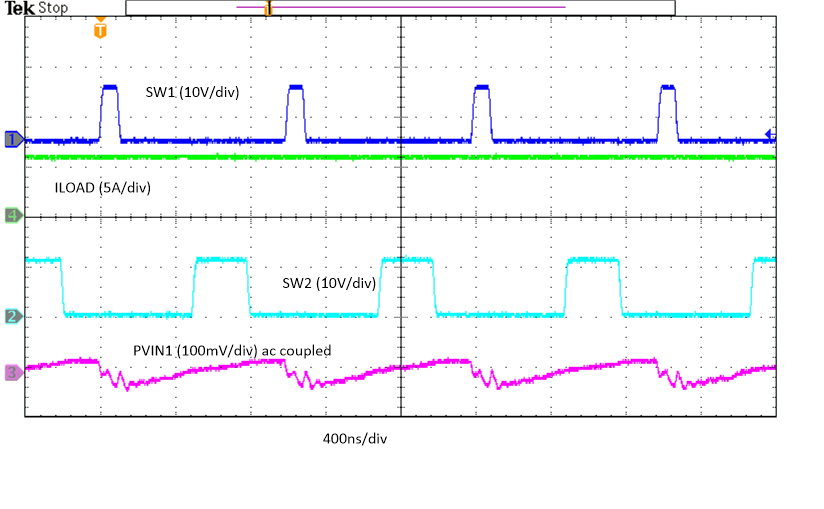

Ripple PVIN1 – 6-A Load
