6.8 Typical Characteristics
all typical characteristics curves are taken at 25°C with 1.8 V ≤ VDD ≤ 6.5 V (unless other wise noted)

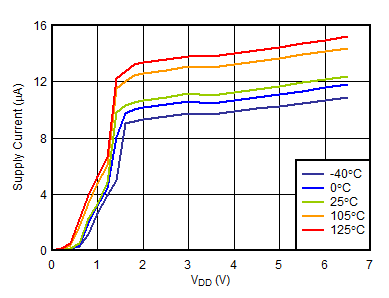

Figure 6-3 Supply Current vs VDD

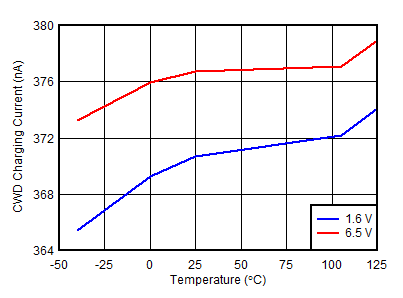

Figure 6-5 CWD Charging Current vs Temperature
Figure 6-7 Normalized Watchdog Timeout (tWD) Accuracy (SET1 = 1, CWD = 10kΩ)
| VDD = 1.8 V |

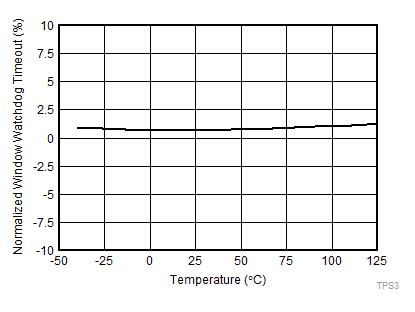

Figure 6-6 Normalized Watchdog Timeout (tWD) Accuracy (SET1 = 1, CWD = NC)
