10.2 Layout Example
EN can also be left floating and is internally pulled-up to VDD
ENOUT can also be left floating or tied to
WDO

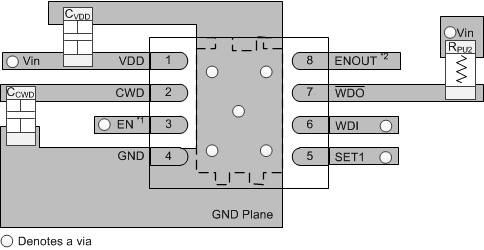

Figure 10-1 TPS3431 Recommended Layout
