8.2.3 Application Curves Design 1
Unless otherwise stated, application curves were taken at TA = 25°C.

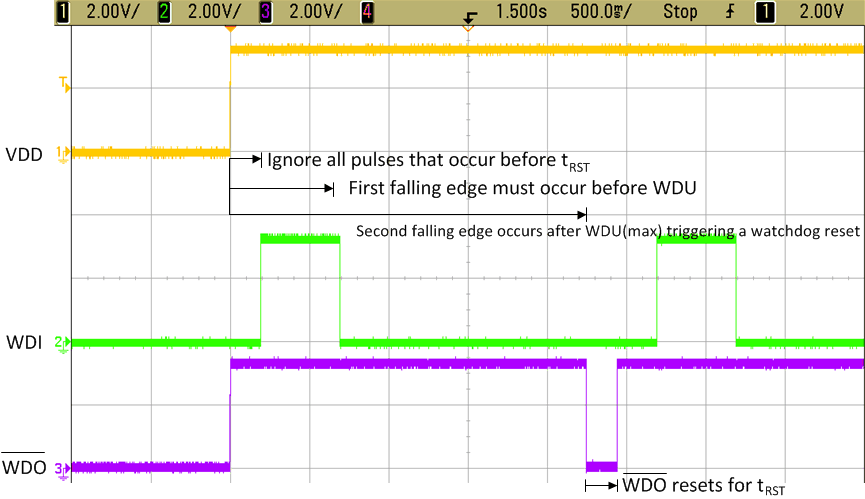

Figure 8-4 WDO
Fault Caused by WDI Pulse Arriving Too Late (After
tWD(max))

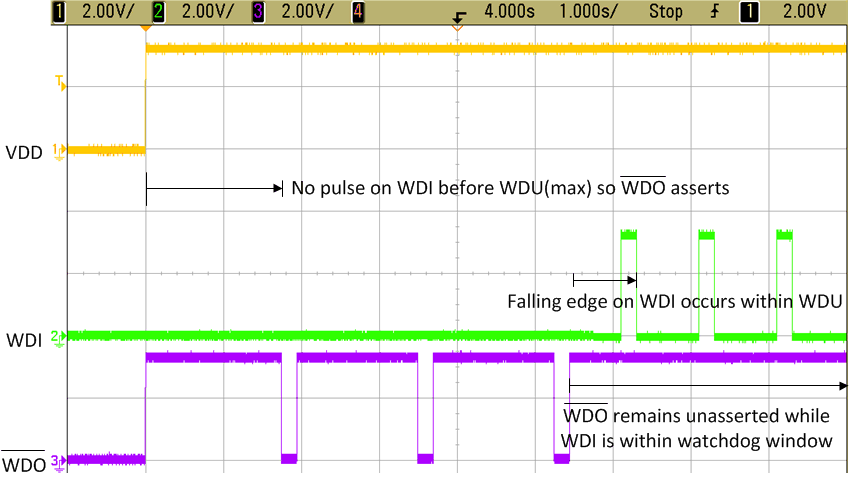

Figure 8-5 WDO
Fault Caused by missing WDI Pulses Followed by Correct Timing WDI
Pulses
