6.7 Timing Diagrams

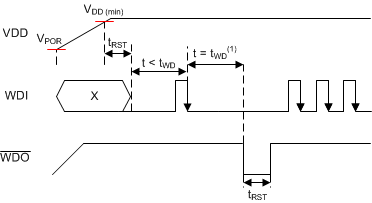

Figure 6-1 Timing
DiagramSee Figure 6-2 for WDI timing
requirements.
Figure 6-2 Watchdog Timing
Diagram
