8.2 Typical Application
EN can also be left floating and is internally pulled-up to VDD
ENOUT can also be left floating or tied to
WDO

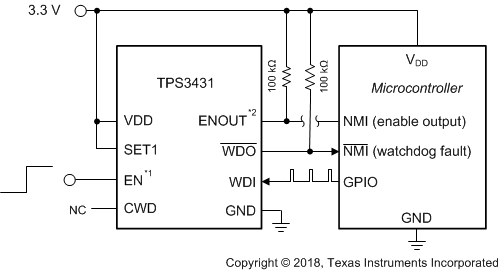

Figure 8-2 Monitoring a Microcontroller with Standard Watchdog Timer
