7.8 Typical Characteristics

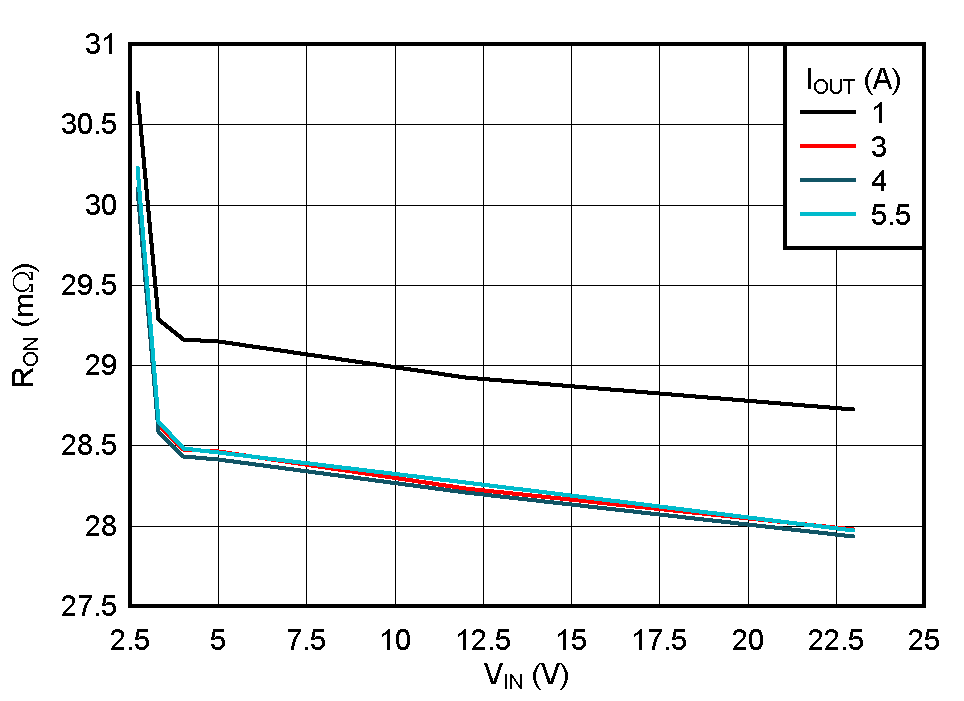

Figure 7-2 ON-Resistance vs Supply
Voltage

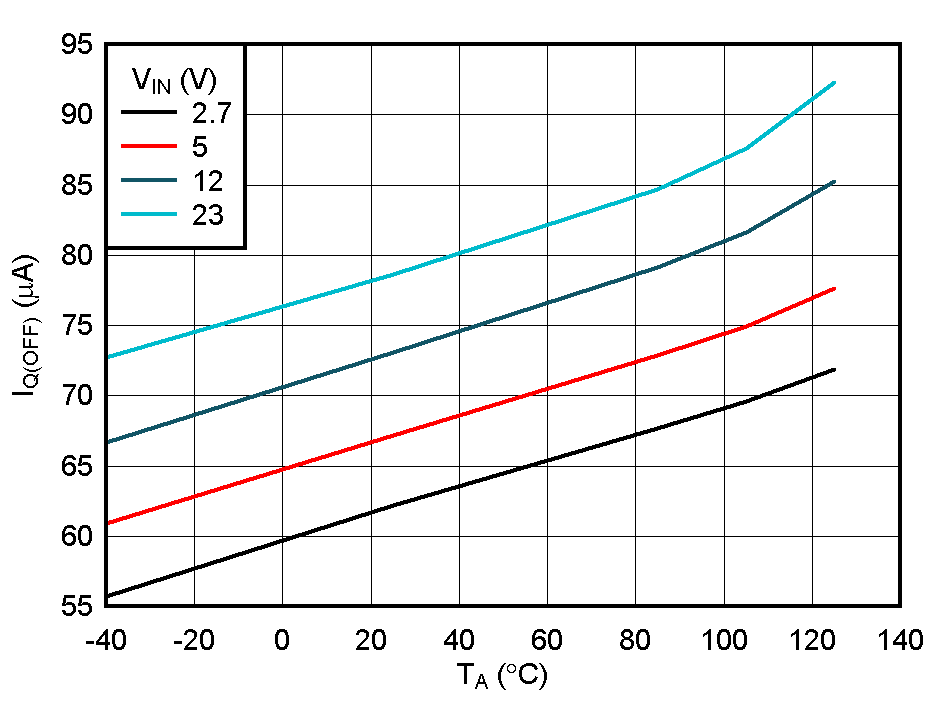

Figure 7-4 IN OFF State (UVLO)
Current vs Temperature

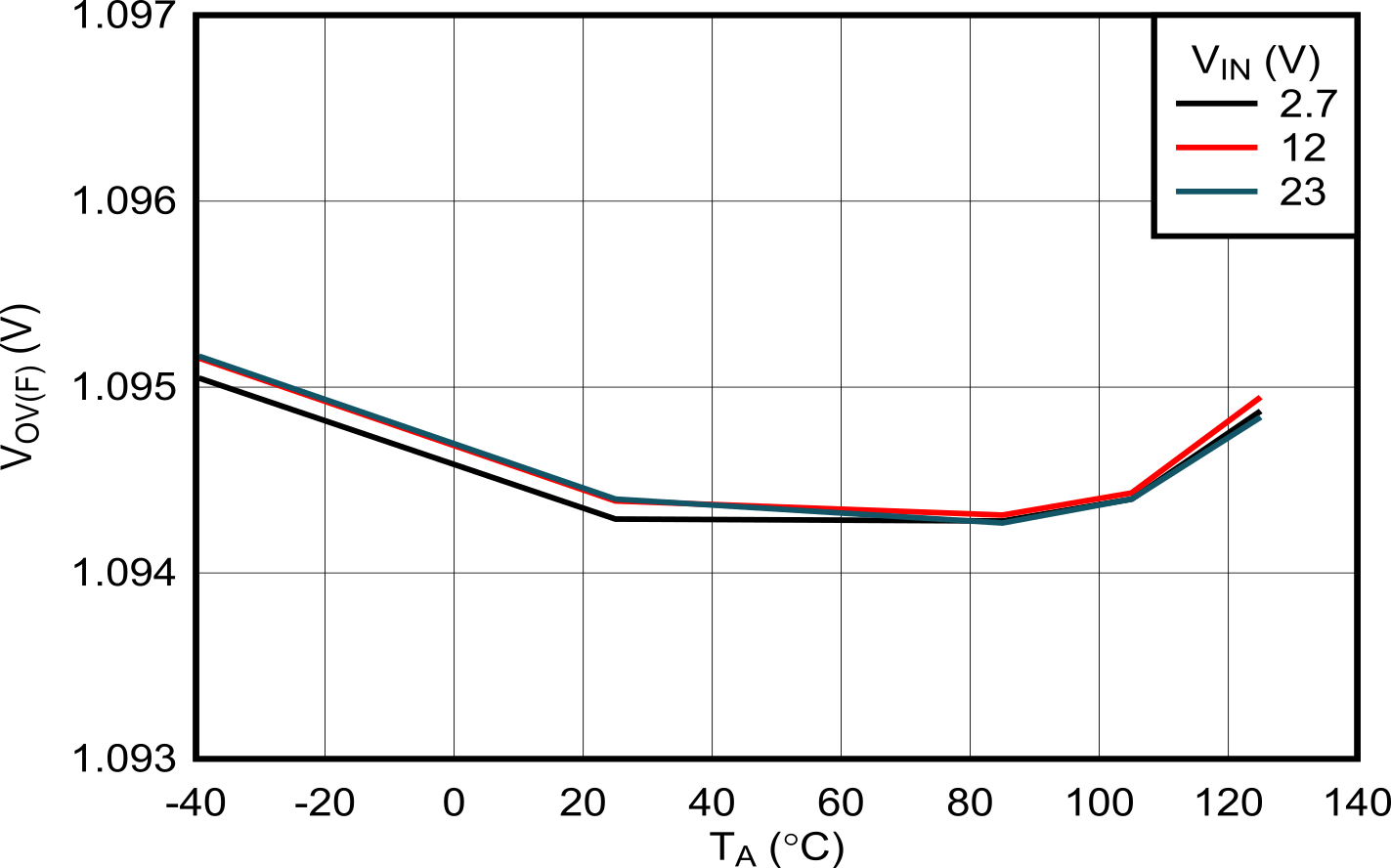

Figure 7-6 IN Undervoltage Threshold
vs Temperature

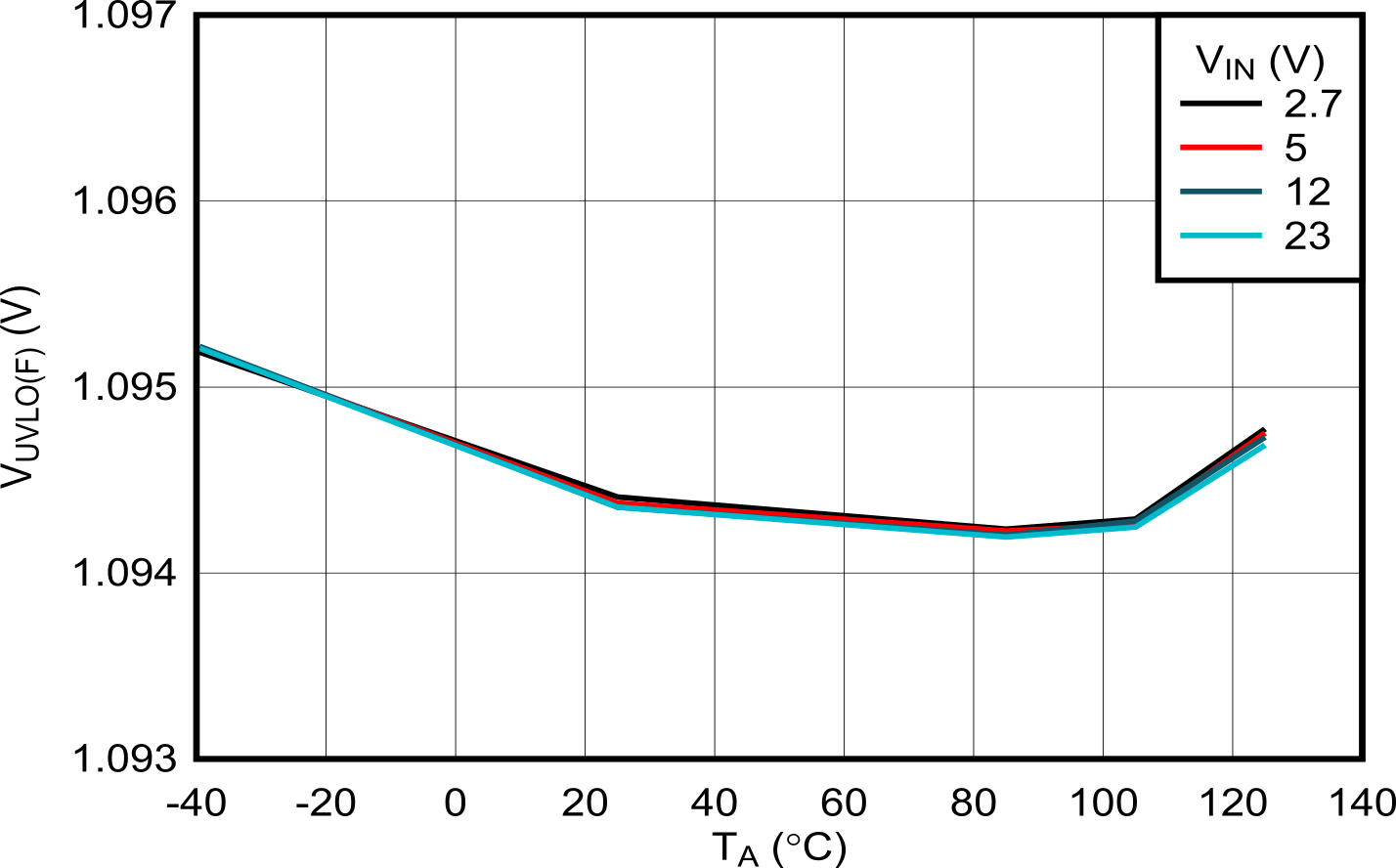

Figure 7-8 EN/UVLO Falling Threshold
vs Temperature
Figure 7-10 OVLO Rising Threshold vs
Temperature

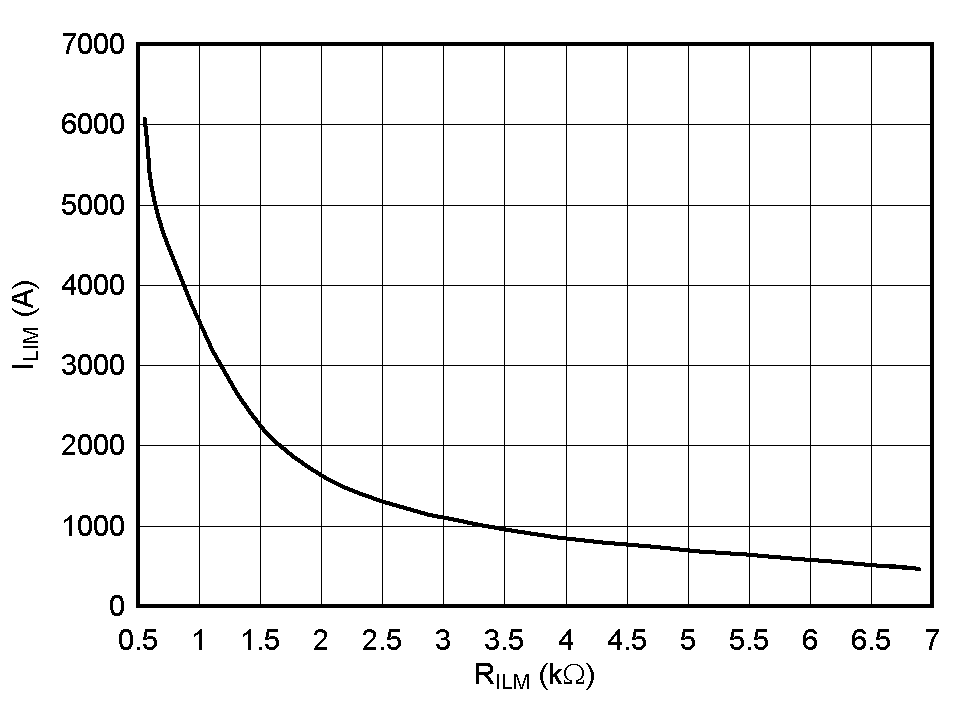

Figure 7-12 Overcurrent Threshold vs
ILM ResistorFigure 7-14 Analog Current Monitor
Gain Accuracy

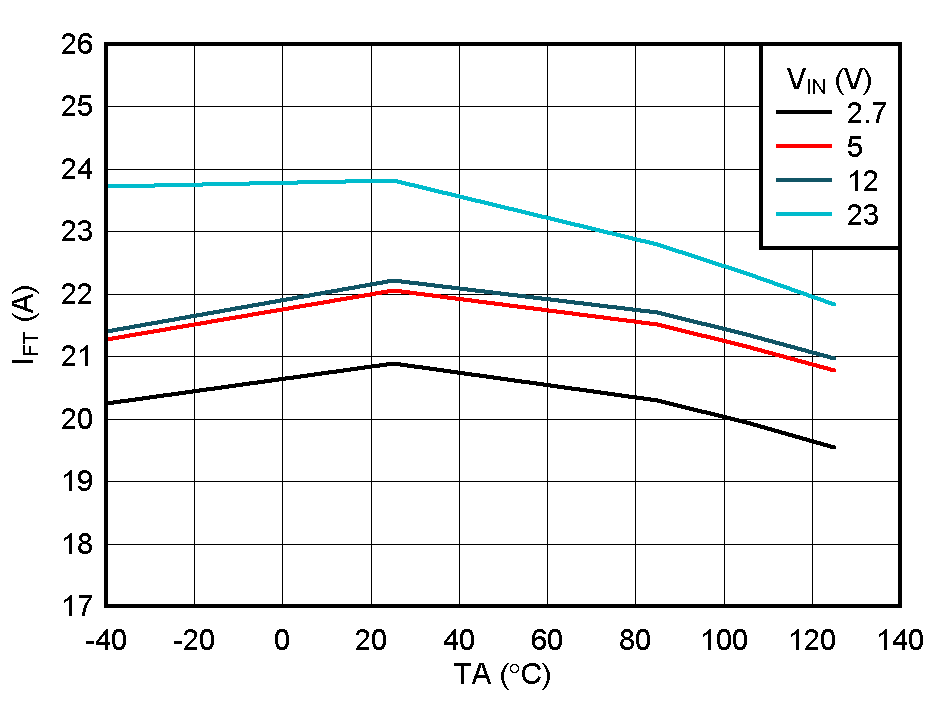

Figure 7-16 Steady State Fixed
Fast-Trip Current Threshold vs Temperature

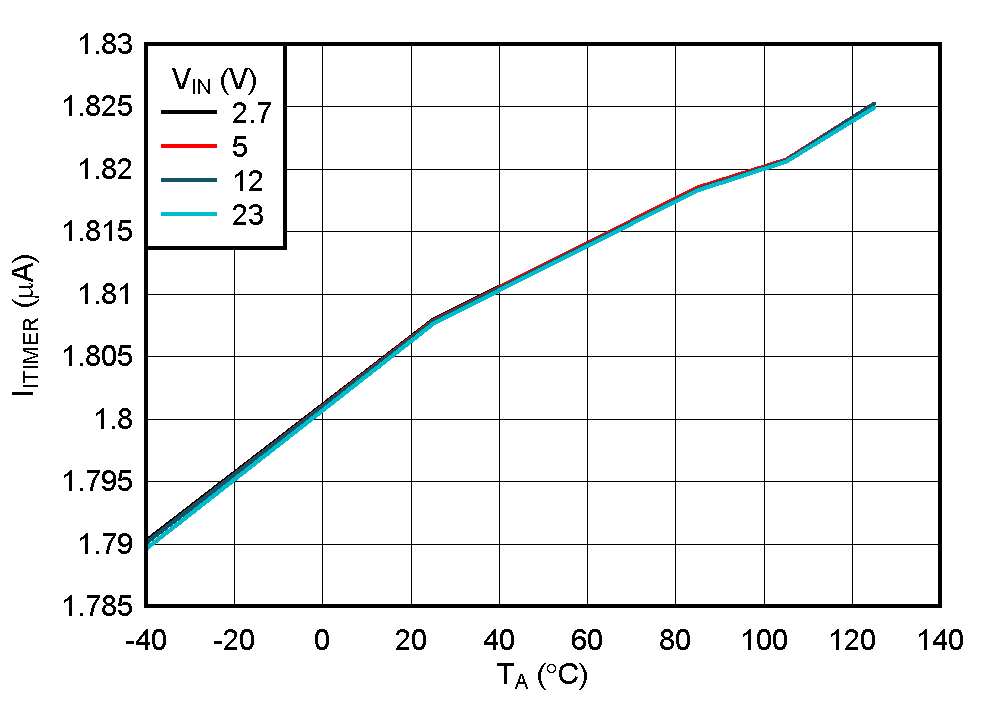

Figure 7-18 ITIMER Discharge Current
vs Temperature
Figure 7-20 ITIMER Internal Pullup
Voltage vs Temperature
Figure 7-22 PGTH Threshold vs
TemperatureFigure 7-24 Time to Thermal Shut-Down
During Inrush State
| VIN = 12 V, COUT = 30 μF, CdVdt = Open, VEN/UVLO stepped up to 1.4 V |

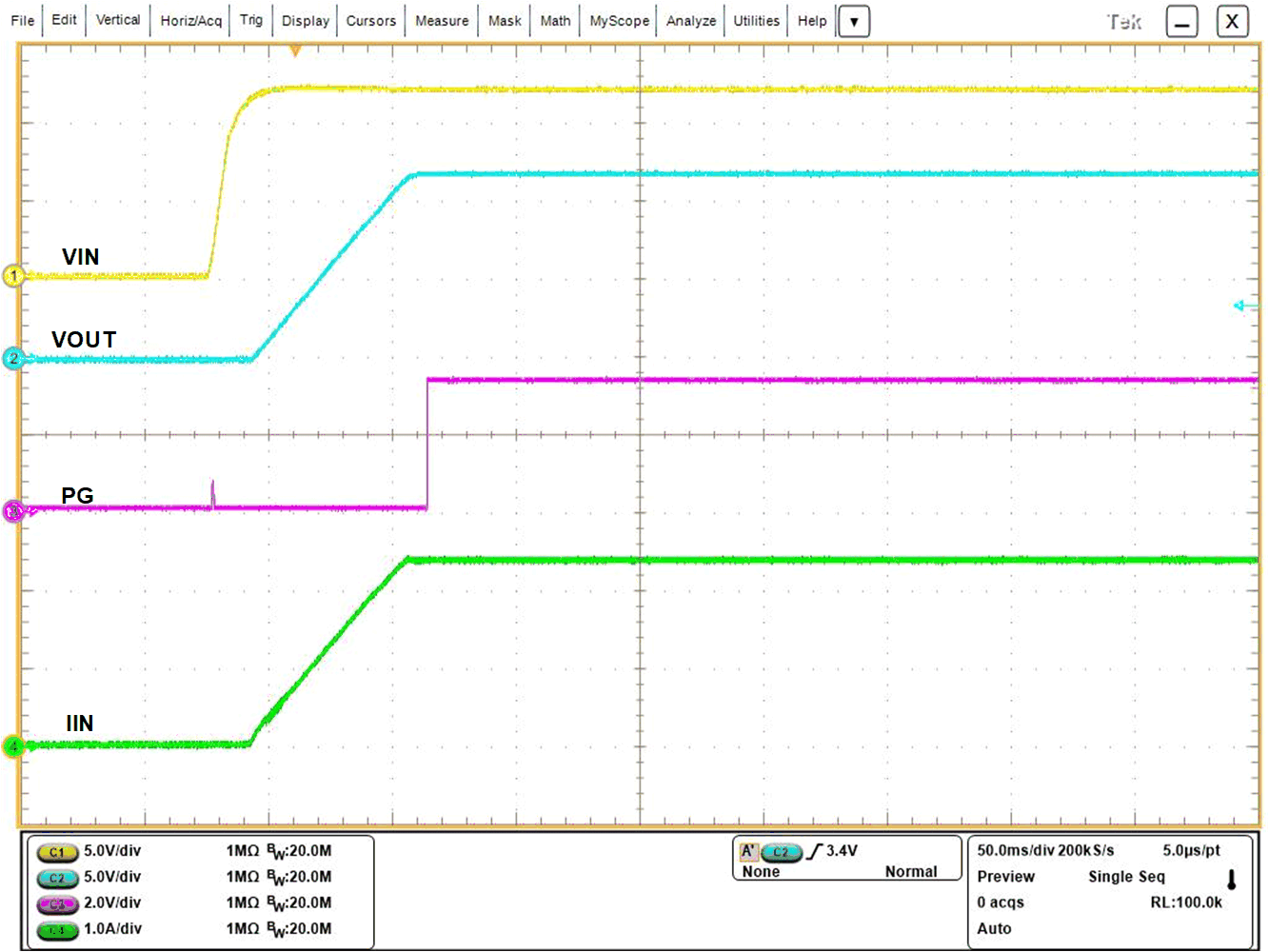

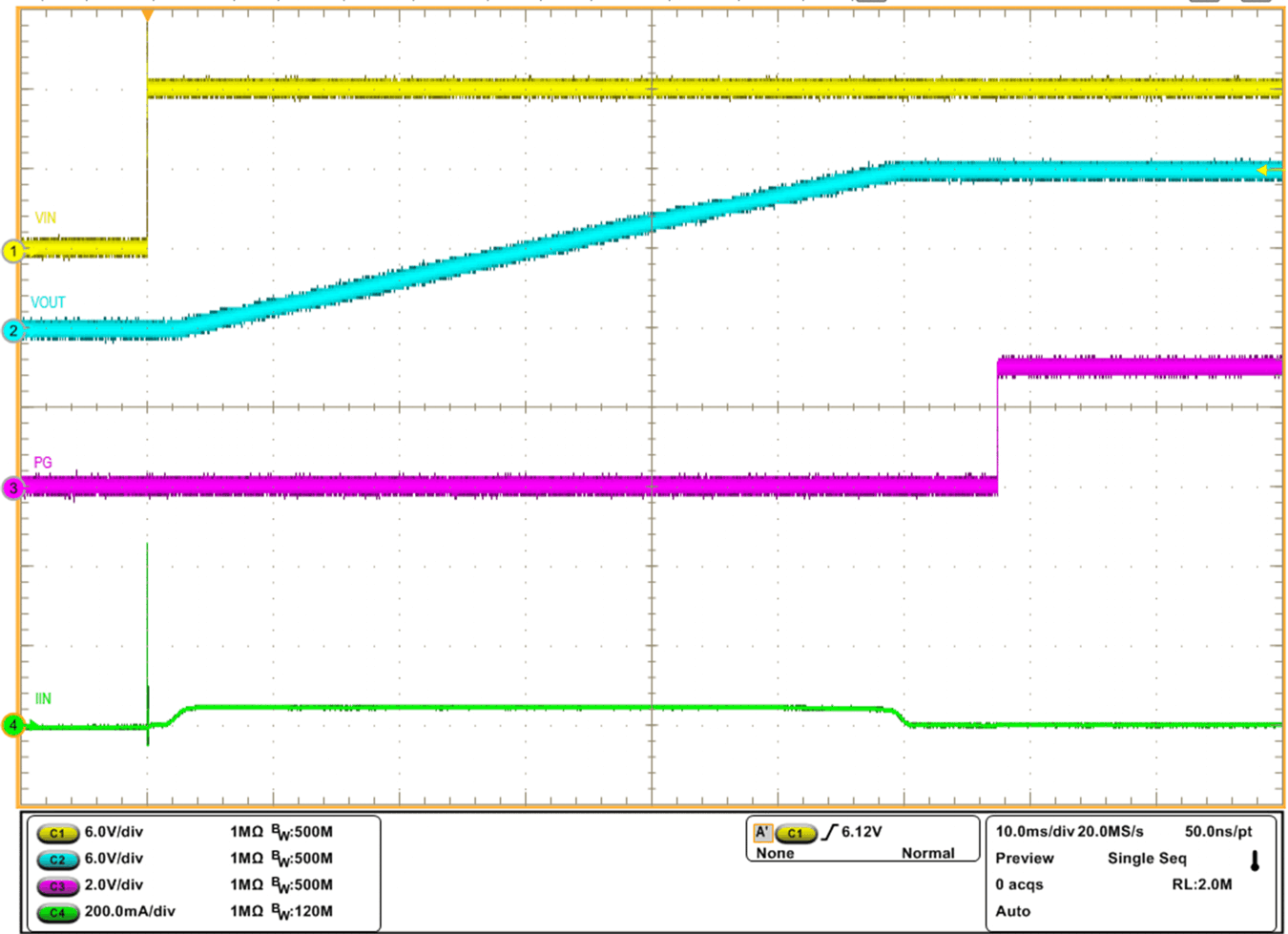

| COUT = 220 μF, CdVdt = 10 nF, EN/UVLO connected to IN through resistor ladder, 12 V hot-plugged to IN |
| VIN = 12 V, COUT = 470 μF, ROUT = 5 Ω, CdVdt = 3300 pF, VEN/UVLO stepped up to 1.4 V |

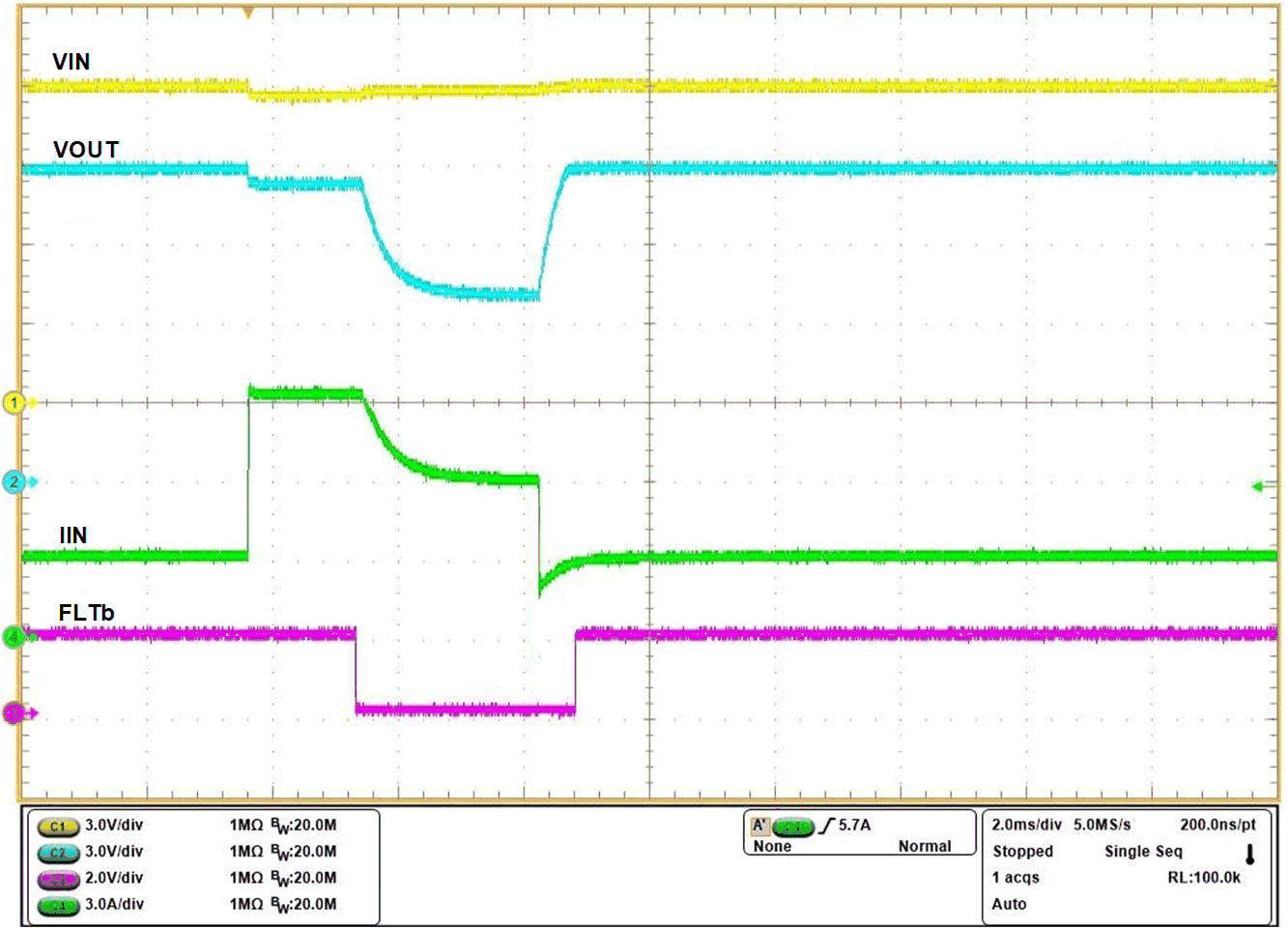

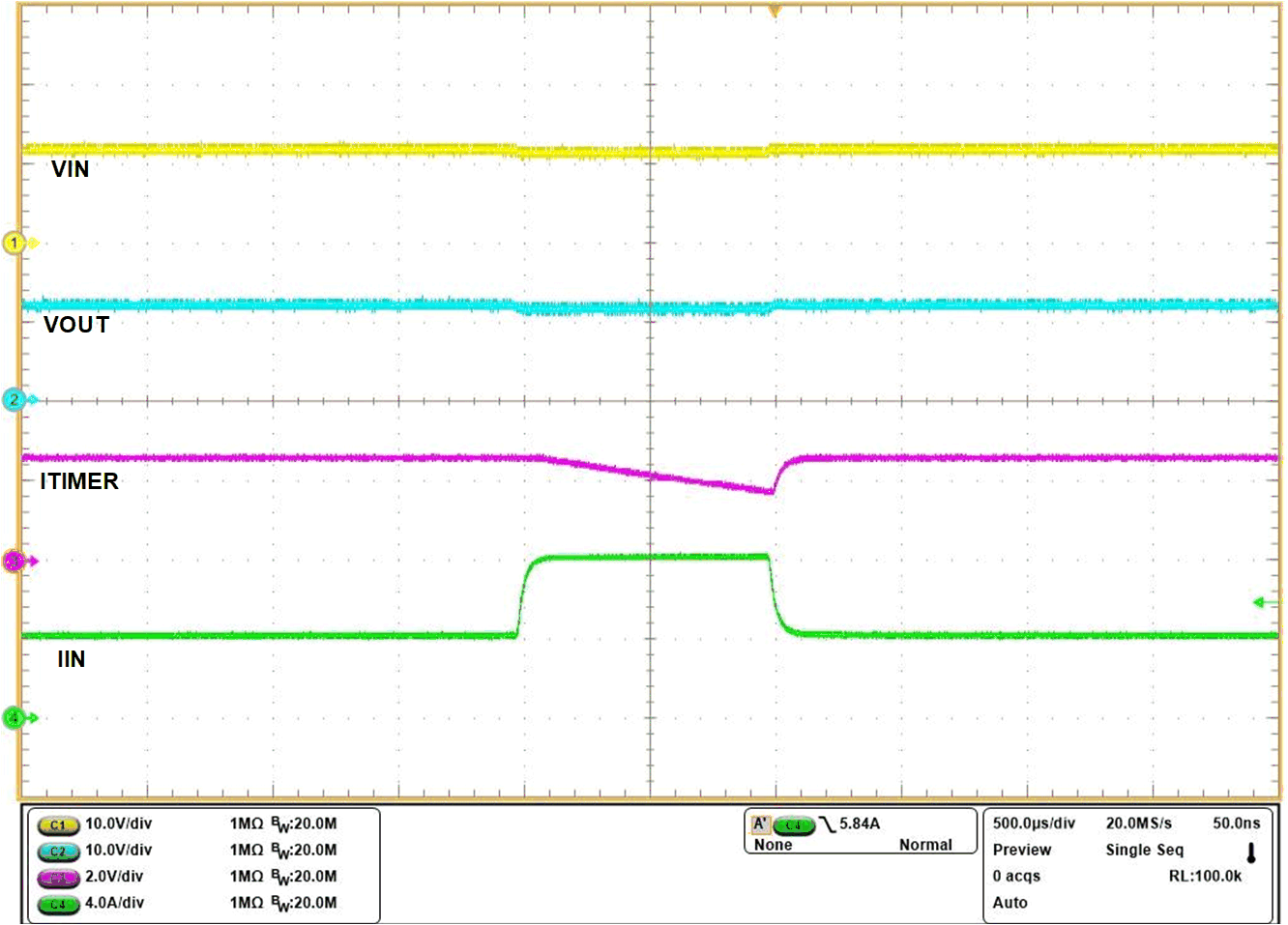

| VIN = 12 V, CITIMER = 2.2 nF, COUT = 470 μF, RILM = 549 Ω, IOUT ramped from 4 A → 8 A→ 4 A within 1 ms |

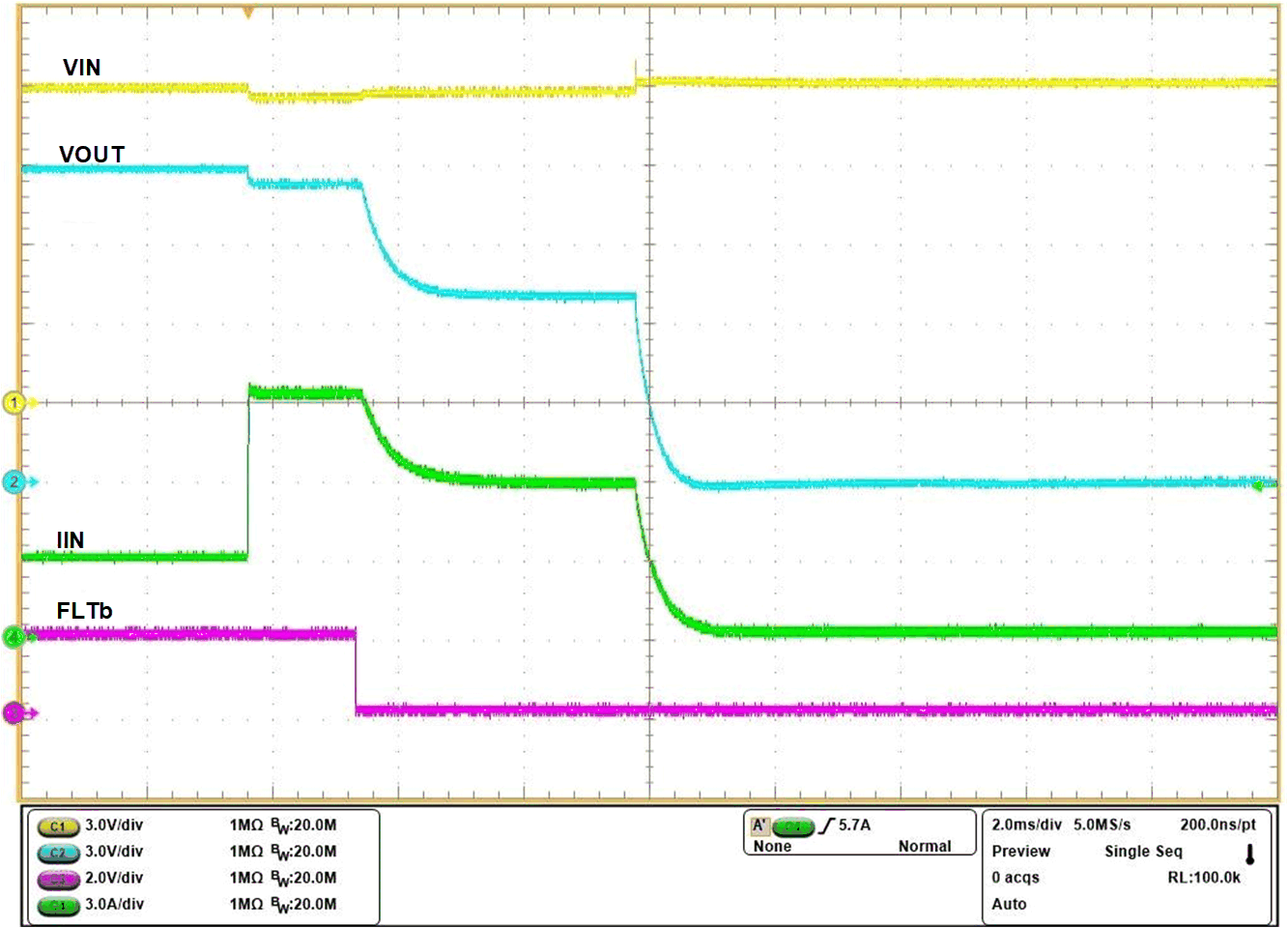

| VIN = 12 V, CITIMER = 2.2 nF, COUT = 220 μF, RILM = 549 Ω, IOUT stepped from 3 A → 9 A |

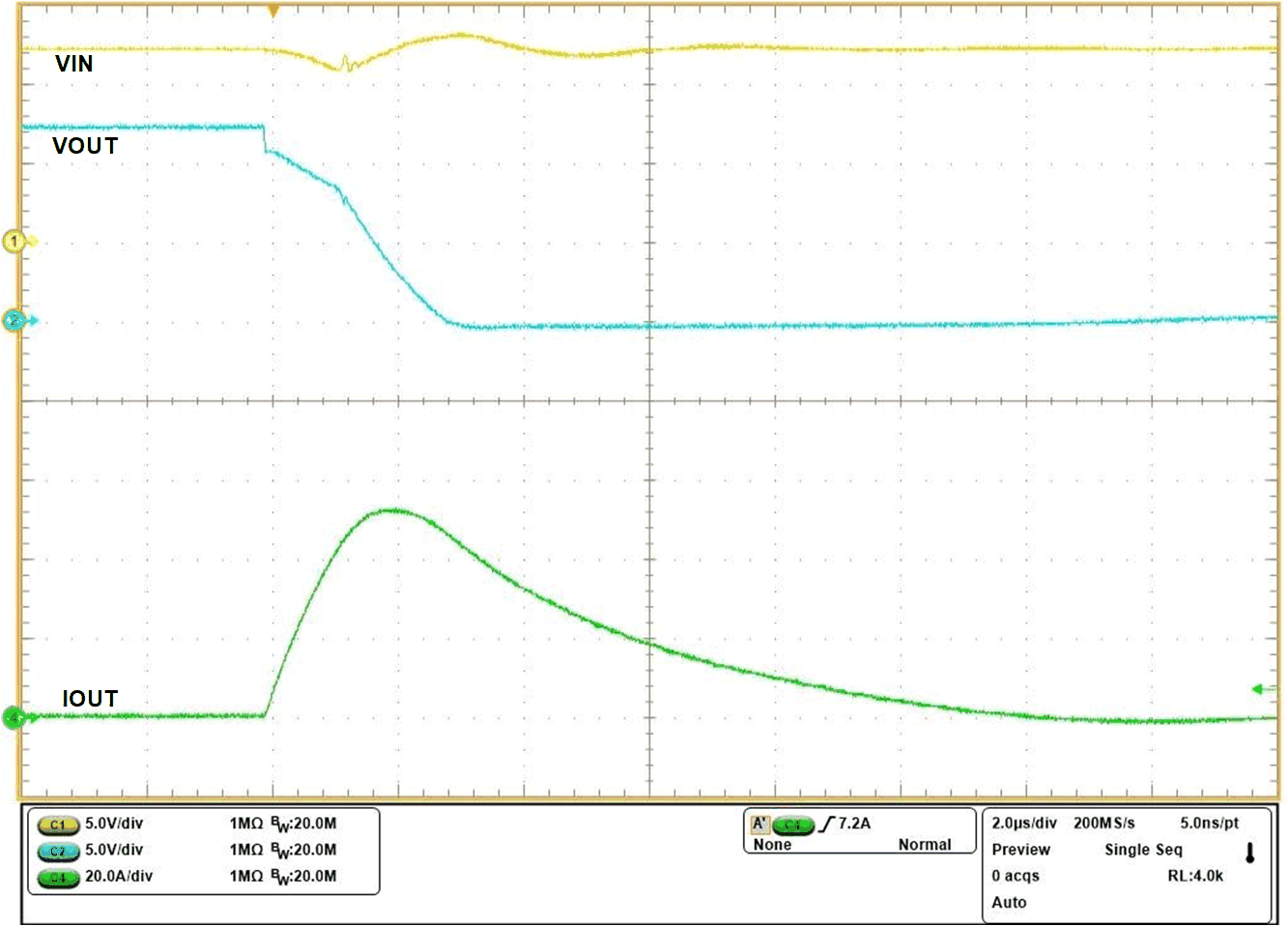

| VIN = 12 V, RILM = 549 Ω, VEN/UVLO = 3.3 V, OUT stepped from Open → Short-circuit to GND |

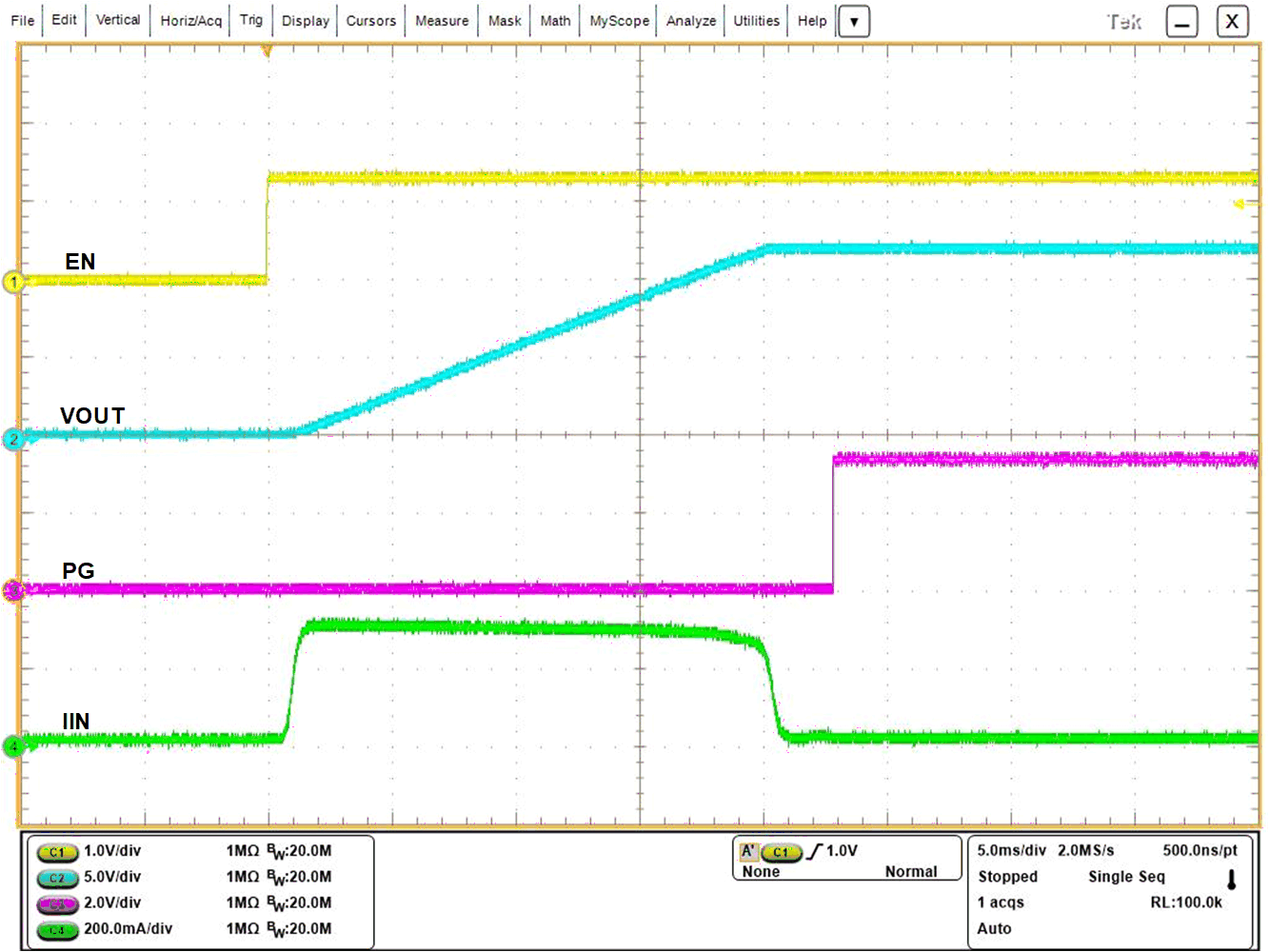

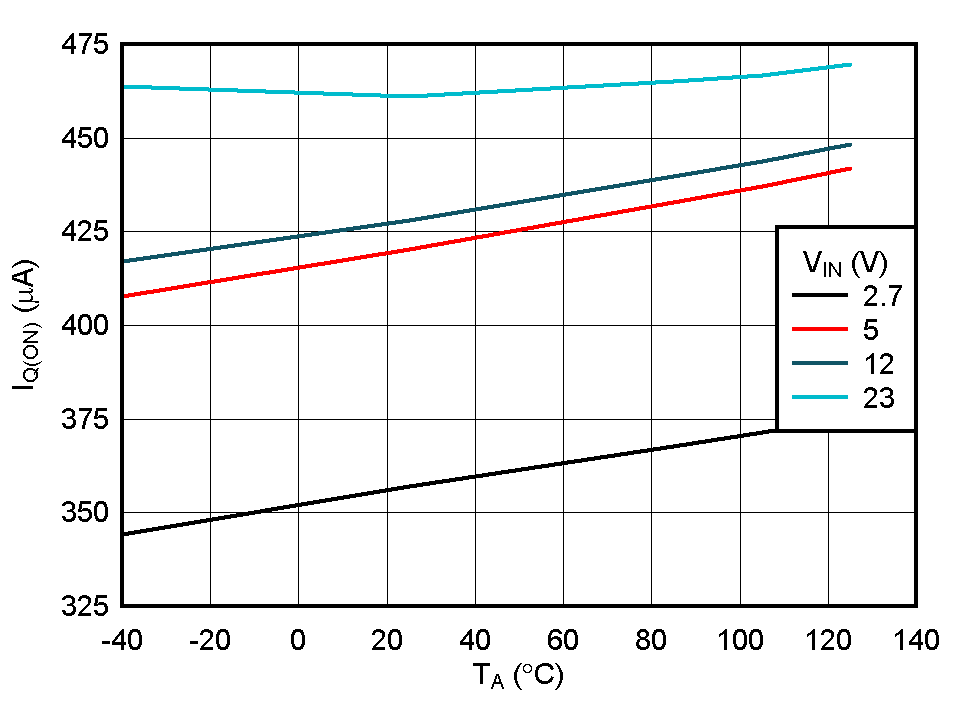

Figure 7-3 IN Quiescent Current vs
Temperature

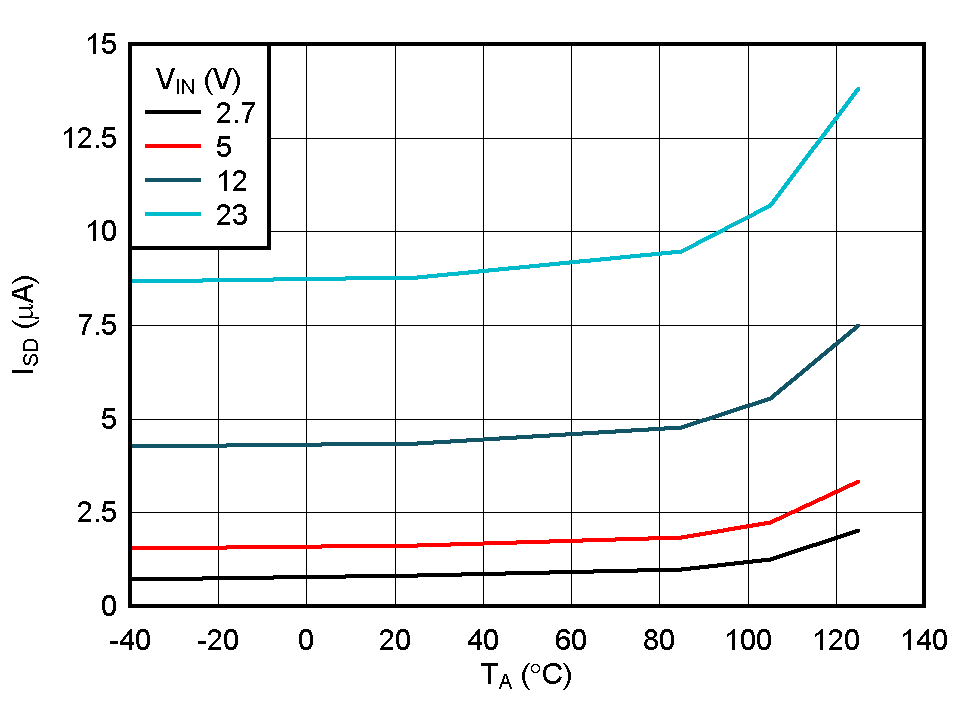

Figure 7-5 IN Shutdown Current vs
Temperature

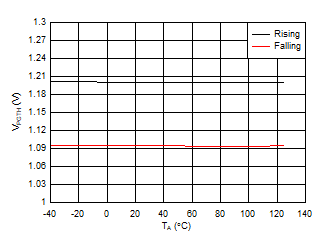

Figure 7-7 EN/UVLO Rising Threshold
vs Temperature
Figure 7-9 EN/UVLO Shutdown Falling
Threshold vs Temperature
Figure 7-11 OVLO Falling Threshold vs
TemperatureFigure 7-13 Overcurrent Threshold
Accuracy (Across Process, Voltage, and Temperature)
Figure 7-15 Scalable Fast-Trip
Threshold: Current Limit Threshold (ILIM) Ratio vs
Temperature

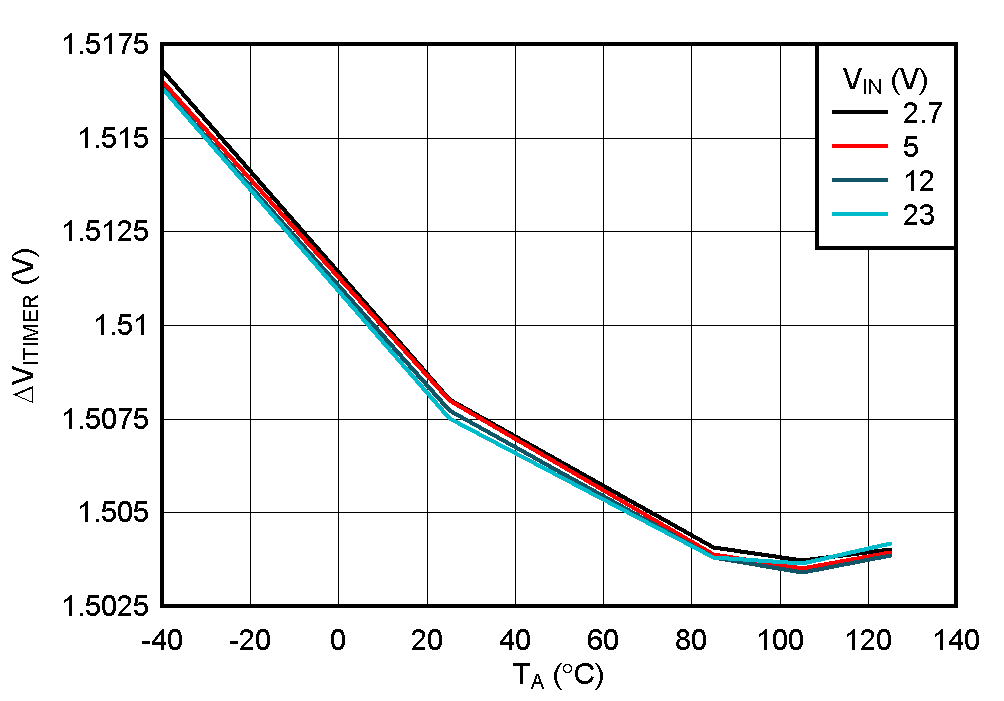

Figure 7-17 ITIMER Discharge
Differential Voltage Threshold vs Temperature

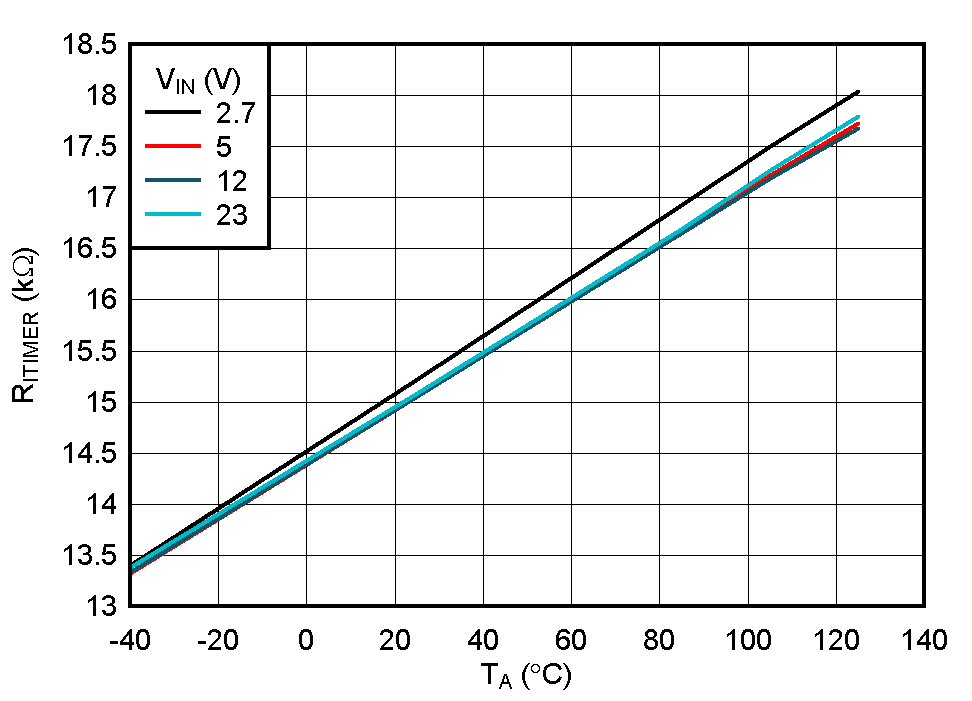

Figure 7-19 ITIMER Internal Pullup
Resistance vs Temperature

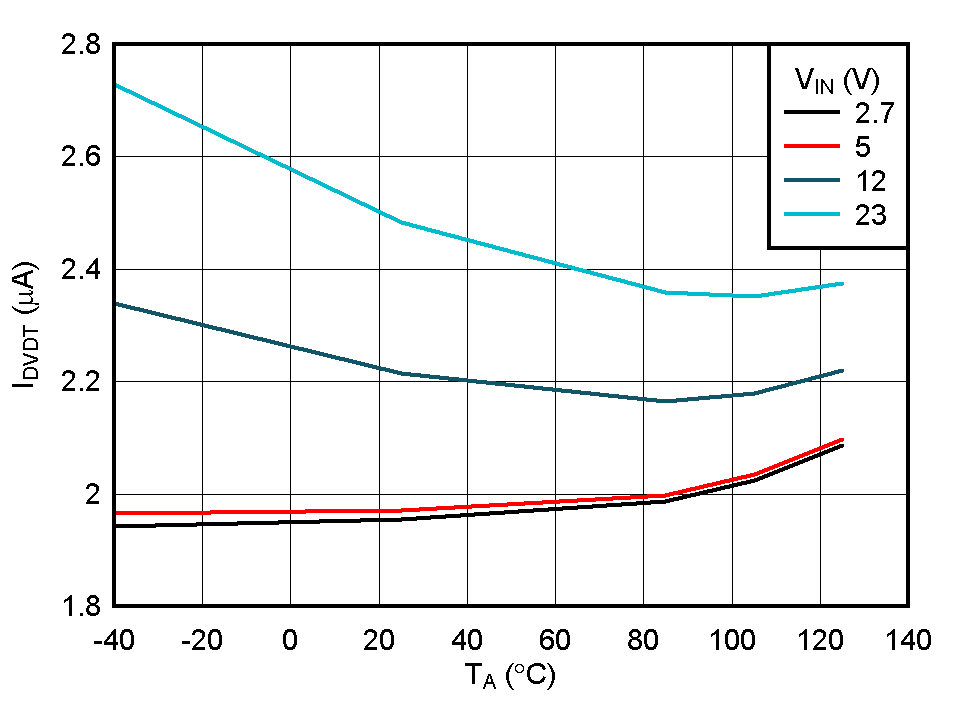

Figure 7-21 DVDT Charging Current vs
Temperature
Figure 7-23 PG Low Voltage Without
Input Supply vs TemperatureFigure 7-25 Time to Thermal Shut-Down
During Steady State

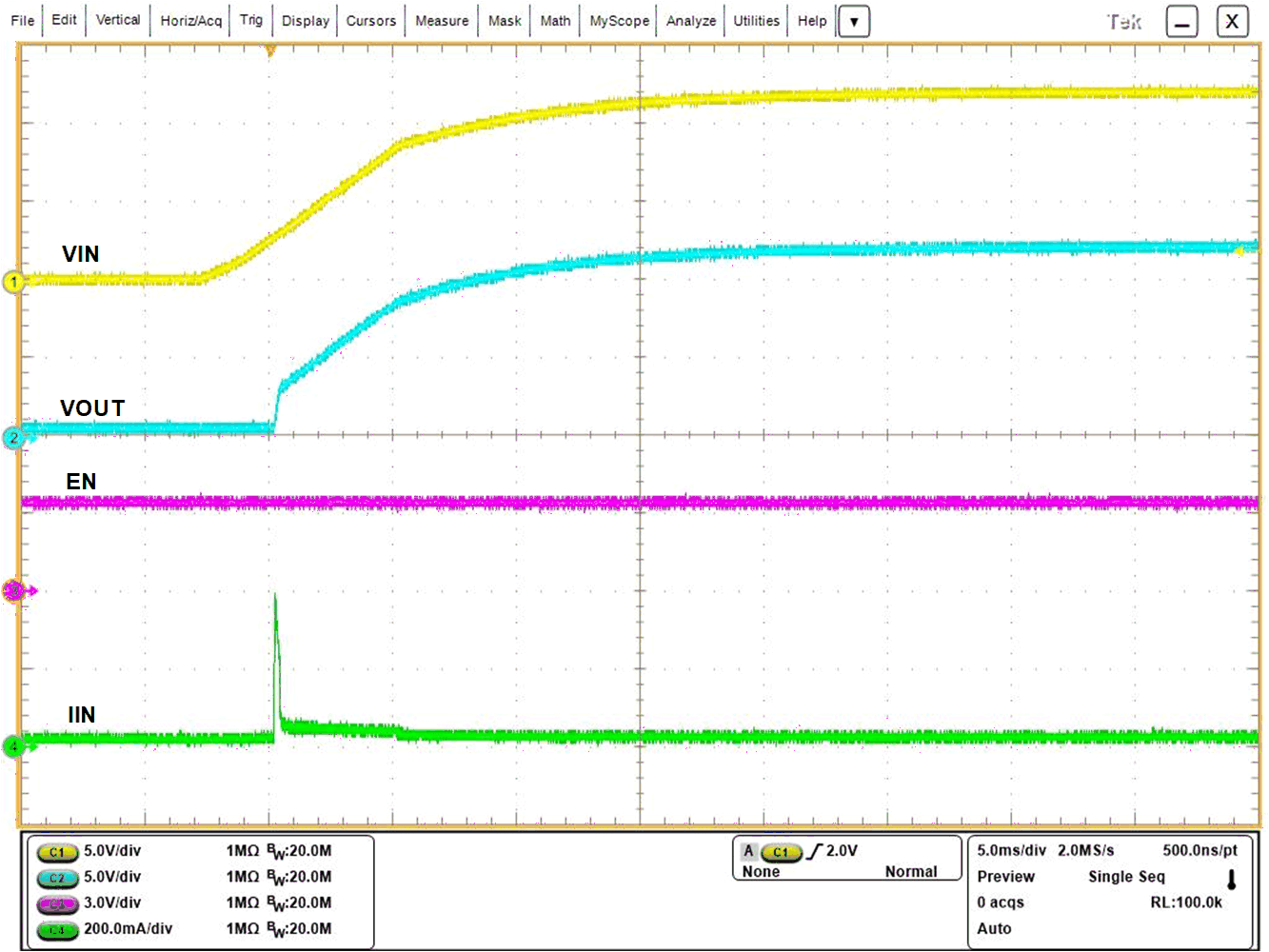

| VEN/UVLO = 3.3 V, COUT = 30 μF, CdVdt = Open, VIN ramped up to 12 V |

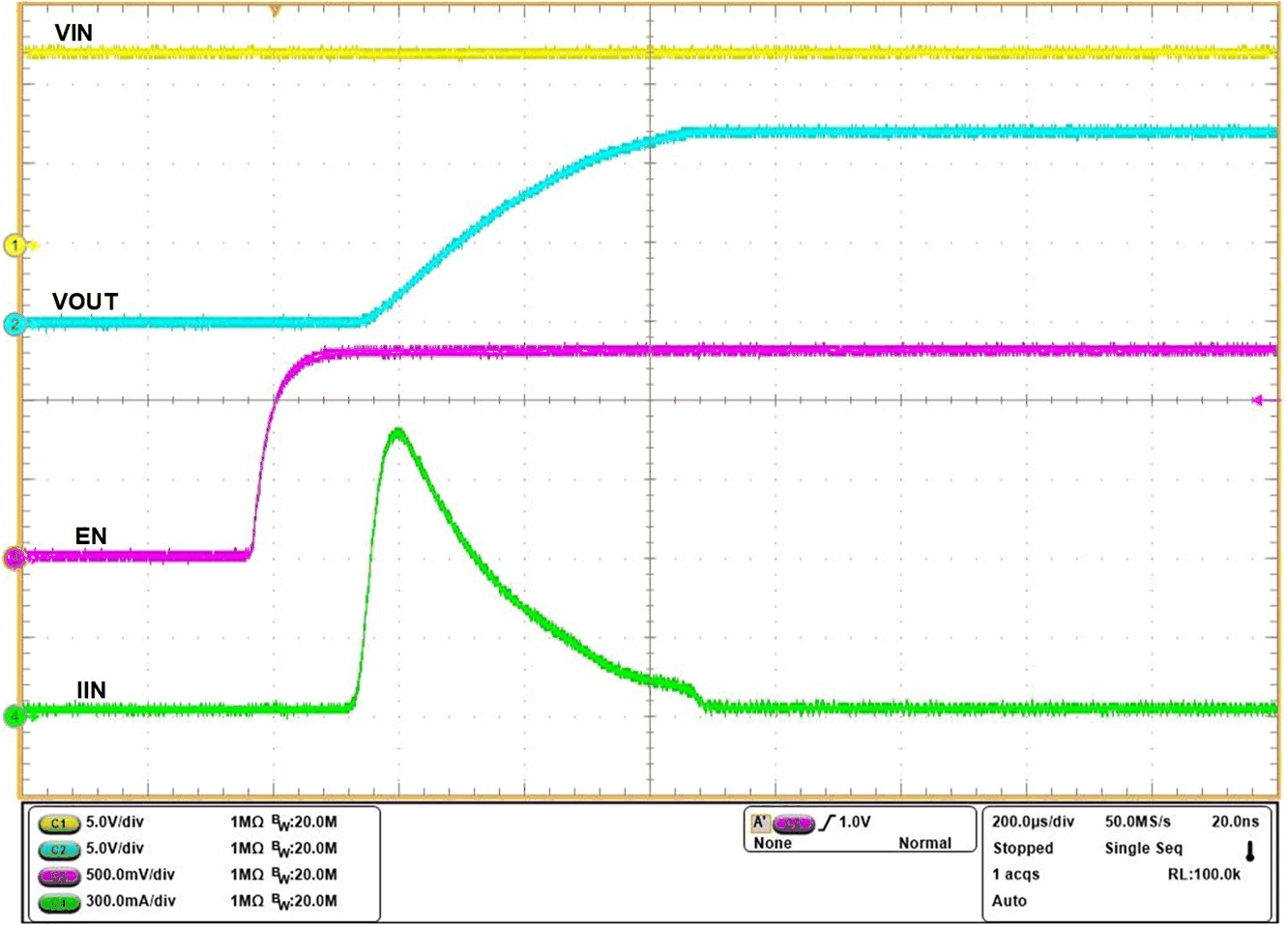

| VIN = 12 V, COUT = 470 μF, CdVdt = 3300 pF, VEN/UVLO stepped up to 1.4 V |

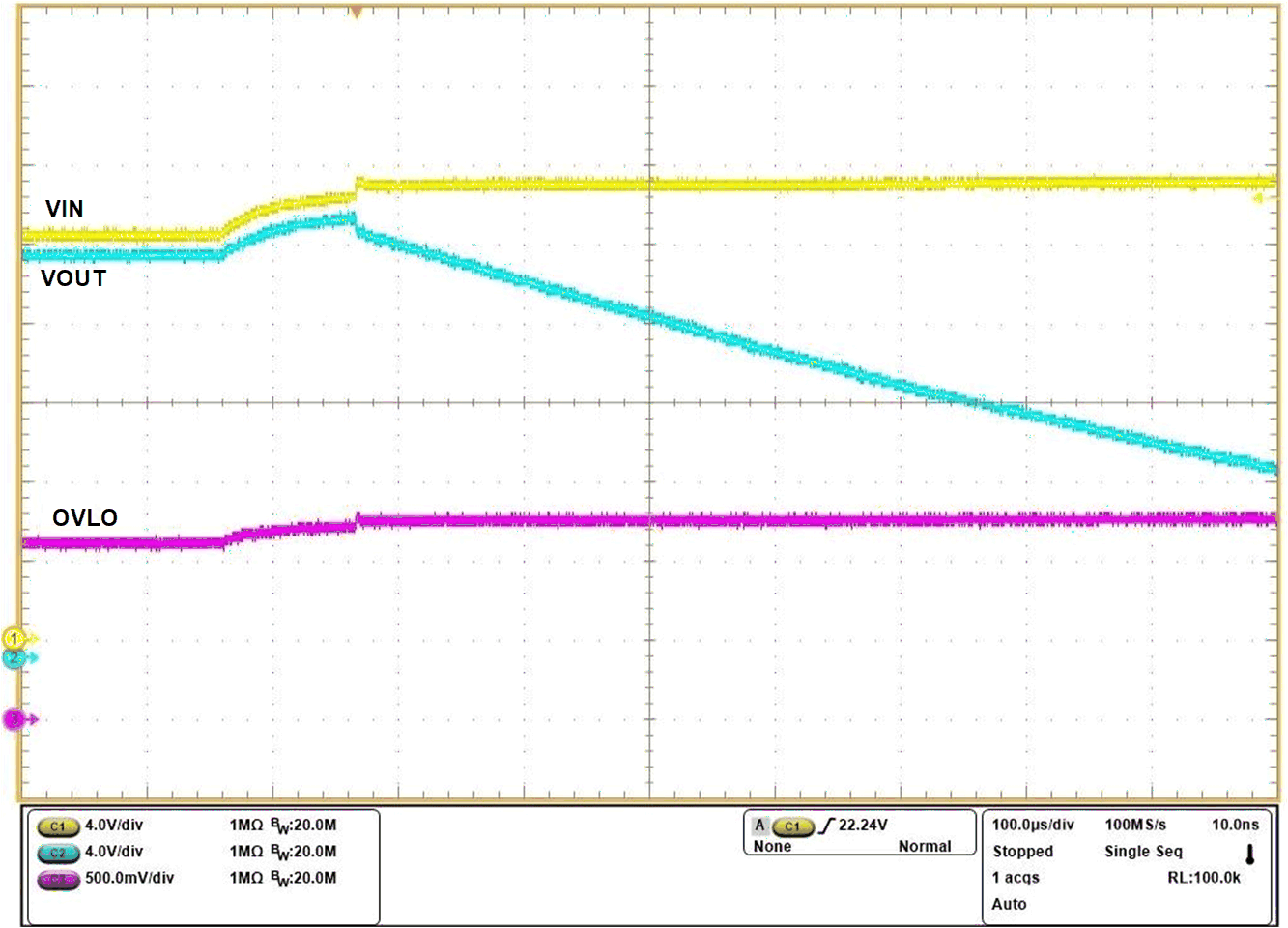

| COUT = 220 μF, IOUT = 4 A, VIN Overvoltage threshold set to 22 V, VIN ramped up from 20 V to 23 V |
| VIN = 12 V, CITIMER = 2.2 nF, COUT = 220 μF, RILM = 549 Ω, IOUT stepped from 3 A → 9 A → 3 A within 5 ms |
| VIN = 12 V, RILM = 549 Ω, VEN/UVLO = 3.3 V, OUT stepped from Open → Short-circuit to GND |
| VIN = 5 V, COUT = Open, OUT short-circuit to GND, RILM = 750 Ω, VEN/UVLO stepped from 0 V to 3.3 V |
