7.7 Typical Characteristics
Conditions are –40°C ≤ TA = TJ ≤ 125°C, V(IN) = 12 V, V(EN/UVLO) = 2 V, V(OVP) = V(DEVSLP) = V(PGTH) = 0 V, R(ILIM) = 150 kΩ, C(OUT) = 1 μF, C(dVdT) = OPEN, PGOOD =
FLT = IMON = OPEN. (unless stated otherwise)

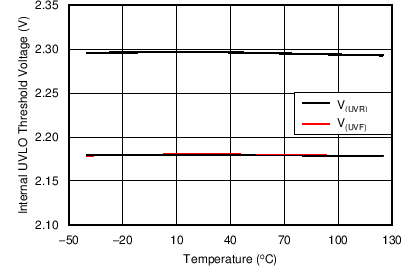

Figure 7-1 UVLO Threshold Voltage vs Temperature

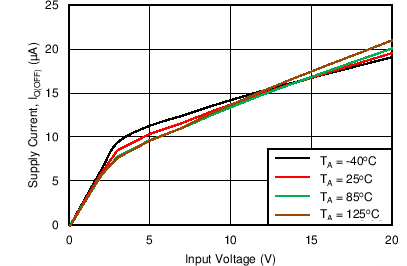

Figure 7-3 Input Supply Current vs Supply Voltage at Shutdown

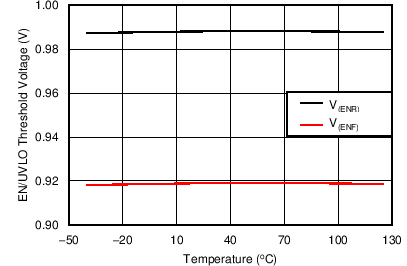

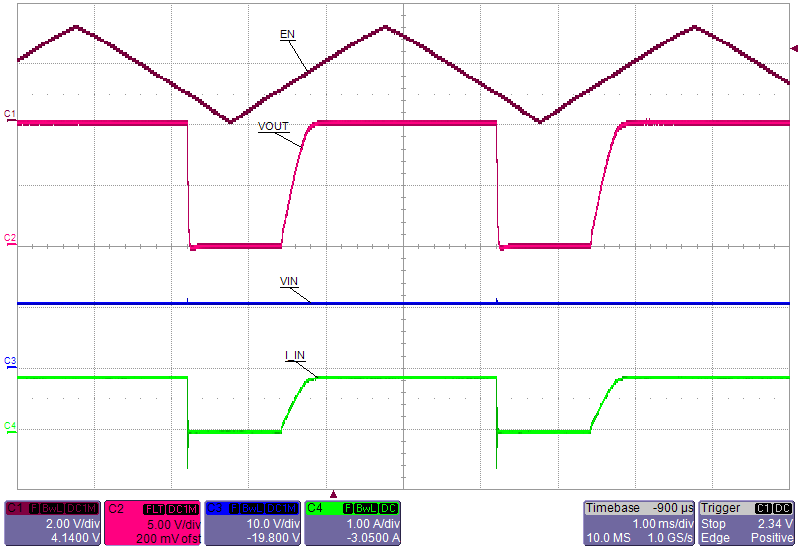

Figure 7-5 EN Threshold Voltage vs Temperature

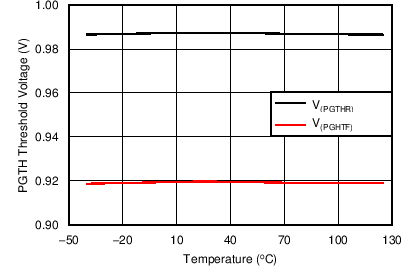

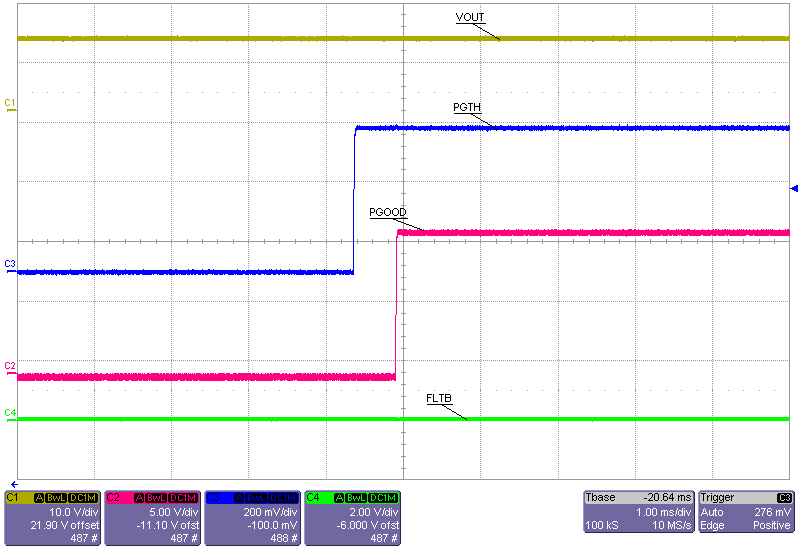

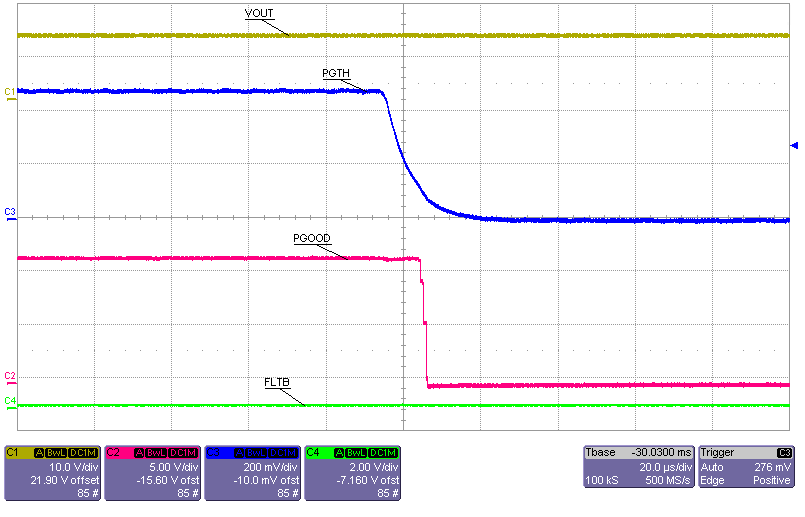

Figure 7-7 PGTH Threshold Voltage vs Temperature

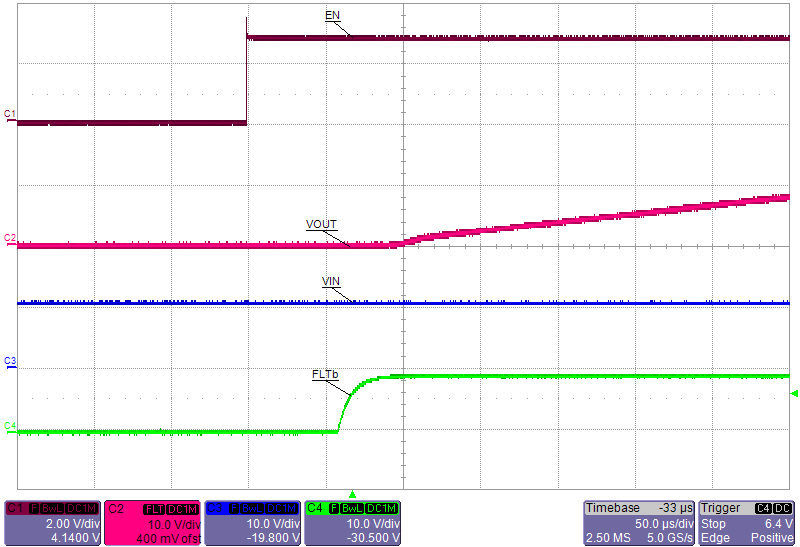

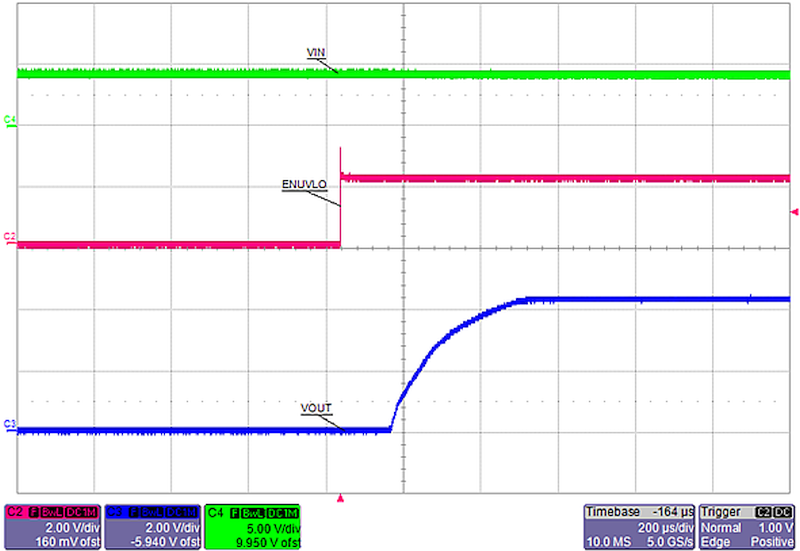

Figure 7-9 Enable Turn ON Delay vs Temperature

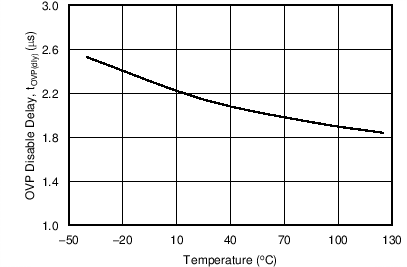

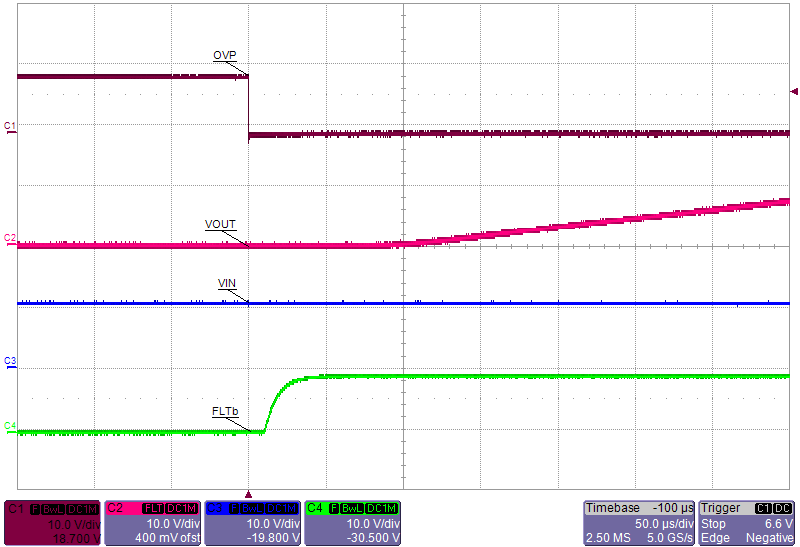

Figure 7-11 OVP Disable Delay vs Temperature

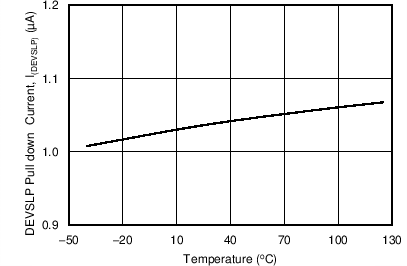

Figure 7-13 DEVSLP Pull Down Current vs Temperature

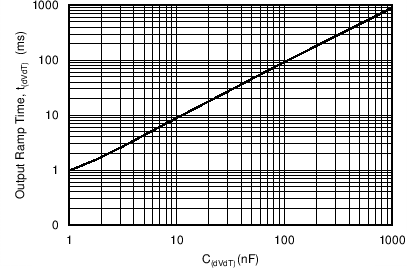

Figure 7-15 Output Ramp Time vs C(dVdT)

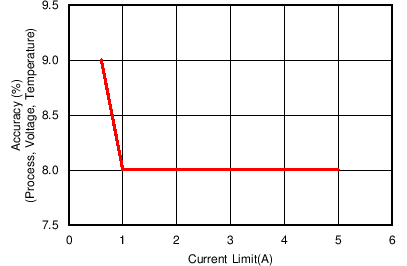

Figure 7-17 Current Limit Accuracy vs Current Limit
Figure 7-19 Current Limit (% Normalized) vs R(LIMIT) Resistor

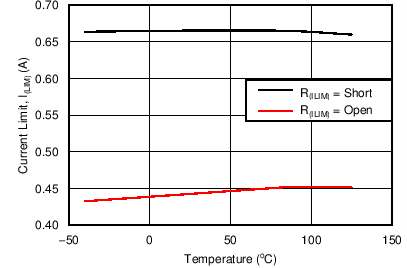

Figure 7-21 Current Limit for R(ILIM) = Open and Short vs Temperature

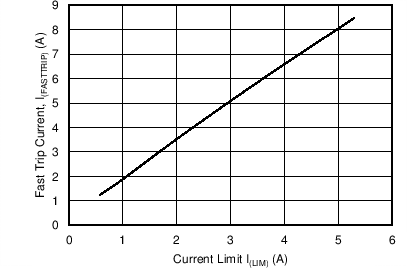

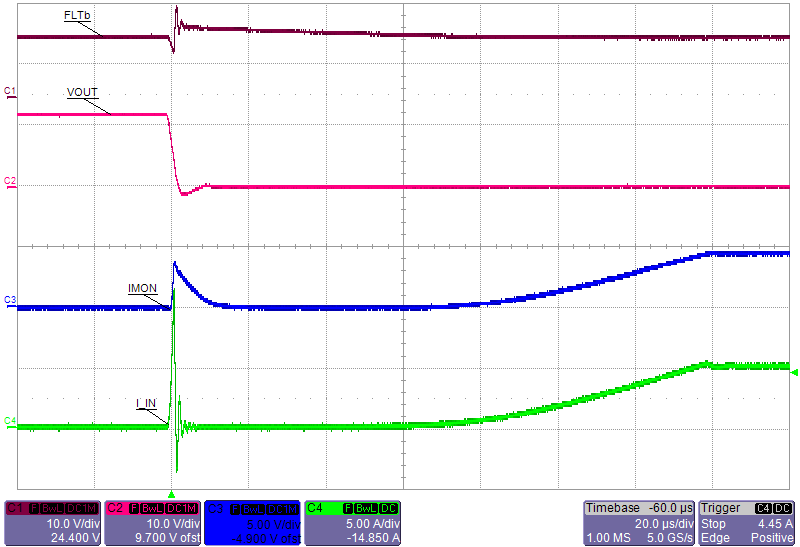

Figure 7-23 Fast Trip Threshold vs Current Limit
Figure 7-25 GAIN(IMON) vs Temperature

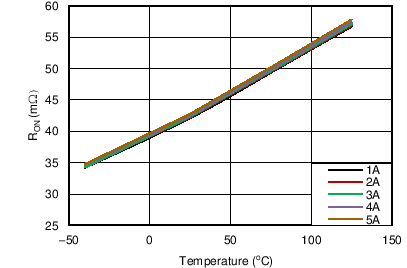

Figure 7-27 RON vs Temperature Across Load Current

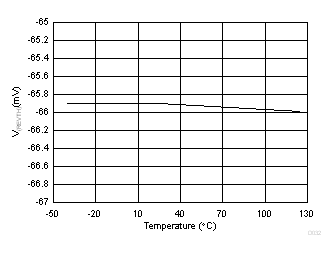

Figure 7-29 V(REVTH) vs Temperature
| Taken on 2-Layer board, 2 oz.(0.08-mm thick) with GND plane area: 14 cm2 (Top) and 20 cm2 (bottom) |
| V(IN) = 11 V |
| R( FLT)=100 kΩ |
| V(IN) = 12 V | RL = 12 Ω | R( FLT)=100 kΩ |
| V(IN) = 12 V | RL = 12 Ω | R( FLT)= 100 kΩ |
| R( FLT)= 100 kΩ | R(IMON) = 16.9 kΩ | R(ILIM) = 17.8 kΩ |

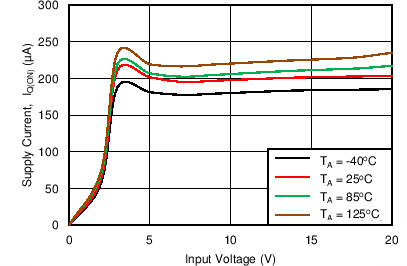

Figure 7-2 Input Supply Current vs
Supply Voltage During Normal Operation

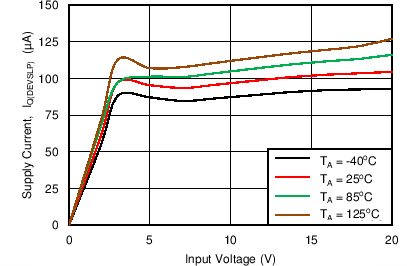

Figure 7-4 Input Supply Current vs Supply Voltage in DevSleep Mode
Figure 7-6 OVP Threshold Voltage vs Temperature
Figure 7-8 EN Threshold Voltage for Low IQ Mode vs Temperature

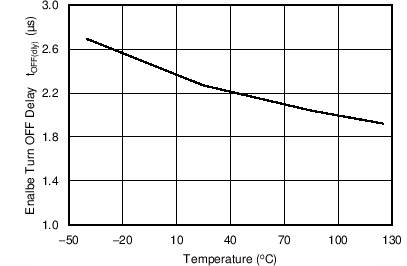

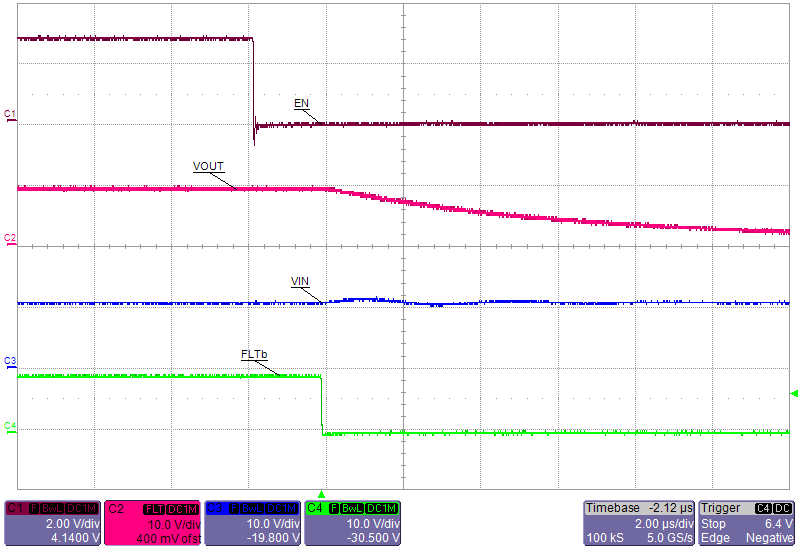

Figure 7-10 Enable Turn OFF Delay vs Temperature

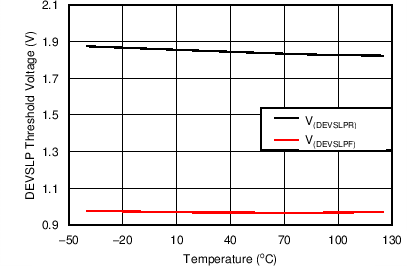

Figure 7-12 DEVSLP Threshold Voltage vs Temperature

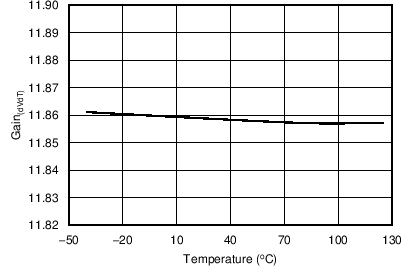

Figure 7-14 GAIN(dVdT) vs Temperature

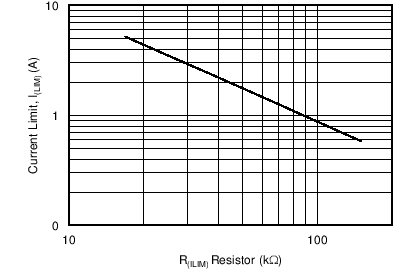

Figure 7-16 Current Limit vs Current Limit Resistor

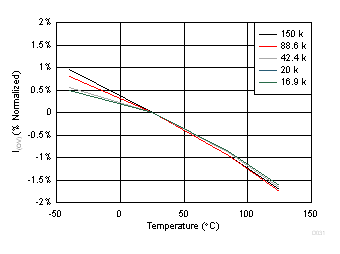

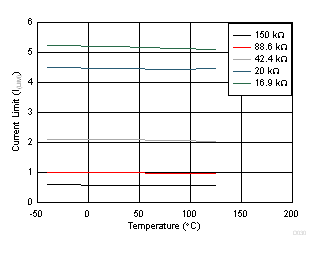

Figure 7-18 Current Limit vs Temperature Across R(ILIM)

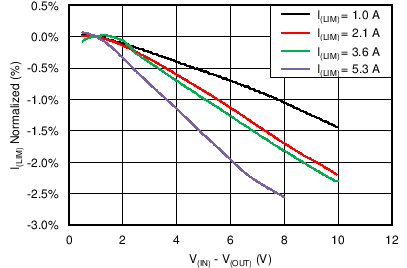

| Thermal shutdown occurs when I(LIM) = 5.3 A | [V(IN) - V(OUT)] > 8 V | |

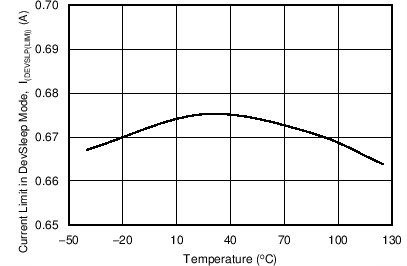

Figure 7-22 Current Limit in DevSleep Mode vs Temperature

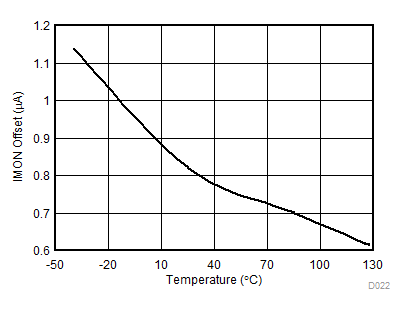

Figure 7-24 IMON Offset vs Temperature

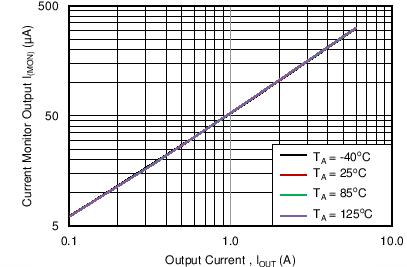

Figure 7-26 Current Monitor Output vs Output Current

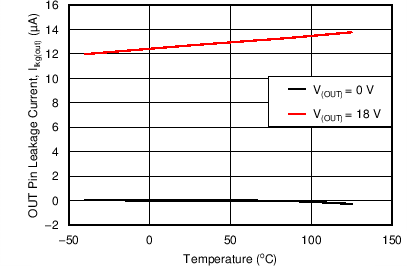

Figure 7-28 OUT Leakage Current in Off State vs Temperature

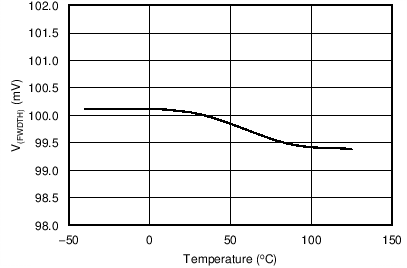

Figure 7-30 V(FWDTH) vs Temperature
| V(IN) = 4.5 V |
| R( FLT)=100 kΩ |
| V(IN) = 12 V | RL = 12 Ω | R( FLT)=100 kΩ |
| V(IN) = 12 V | RL = 12 Ω | R( FLT)= 100 kΩ |
| R( FLT) = 100 kΩ | R(IMON) = 16.9 kΩ | R(ILIM) = 17.8 kΩ |
