7.4.5 Push-Button Power On Response
The port behavior of the TPS23861 to a commanded power on from the push-button register varies depending upon both the detect and class enable registers.
Table 8. Summarized Response(1)
| OPERATING MODE | DETECT EN BIT | CLASS EN BIT | PORT BEHAVIOR |
|---|---|---|---|
| Off | x | x | Port does not power on |
| Manual | x | x | Port immediately powers on |
| Semi-Auto | 0 | 0 | Port does not power on |
| 1 | 0 | Port powers on after completion of next good detect | |
| 0 | 1 | Port does not power on | |
| 1 | 1 | Port powers on after completion of next good detect and classification | |
| Auto | x | x | Pushbutton power on ignored. Port follows Auto Mode rules |
(1) Response to a push-button power on.

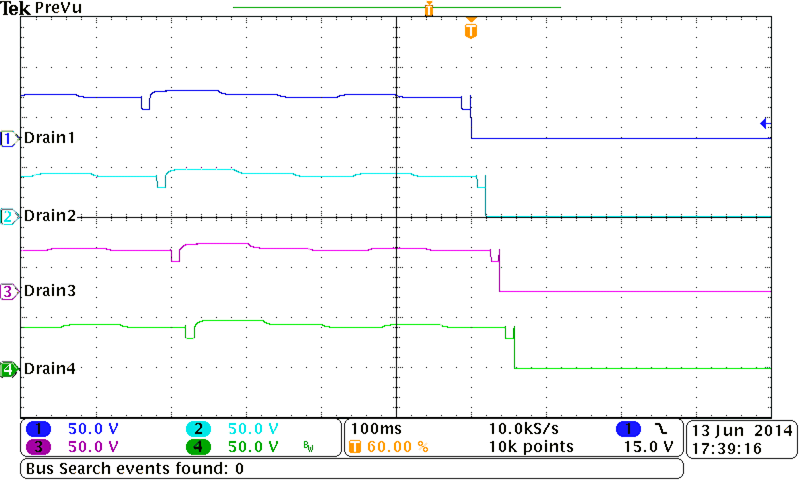

Figure 45. Semi-Auto Sequenced Turn On
