6.8.1 Typical AC Scope Captures at TA = 25ºC, CT = 1 nF

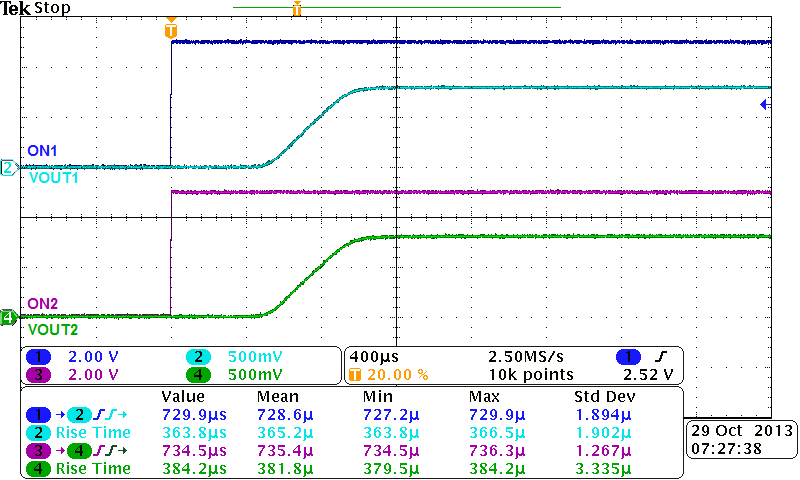

Figure 23. Turnon Response Time (VIN = 0.8 V, VBIAS = 2.5 V, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω)

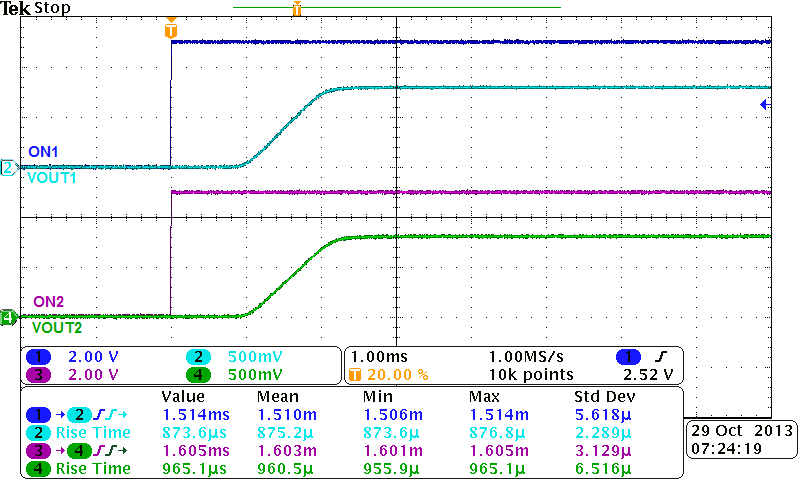

Figure 24. Turnon Response Time (VIN = 0.8 V, VBIAS = 5 V, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω)

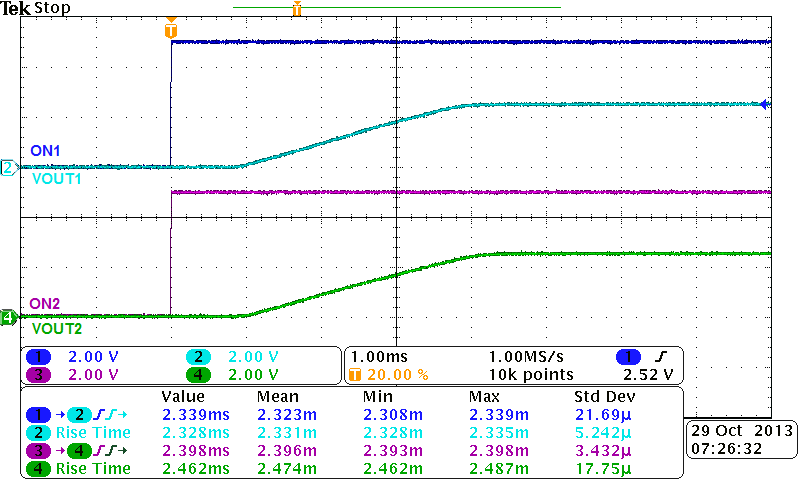

Figure 25. Turnon Response Time (VIN = 2.5 V, VBIAS = 2.5 V, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω)
Figure 27. Turnoff Response Time (VIN = 0.8 V, VBIAS = 2.5 V, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω)

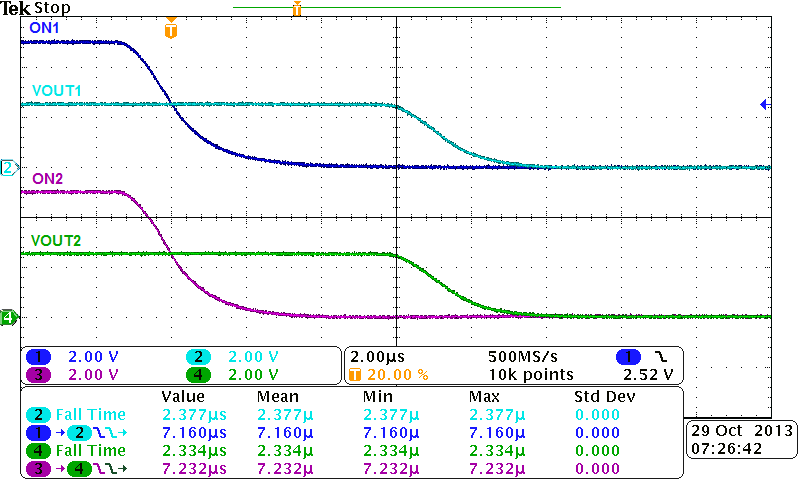

Figure 29. Turnoff Response Time (VIN = 2.5 V, VBIAS = 2.5 V, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω)

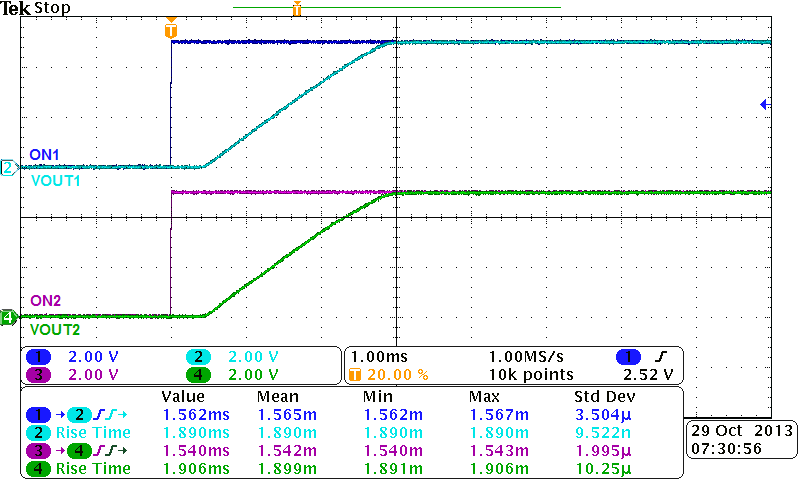

Figure 26. Turnon Response Time (VIN = 5 V, VBIAS = 5 V, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω)

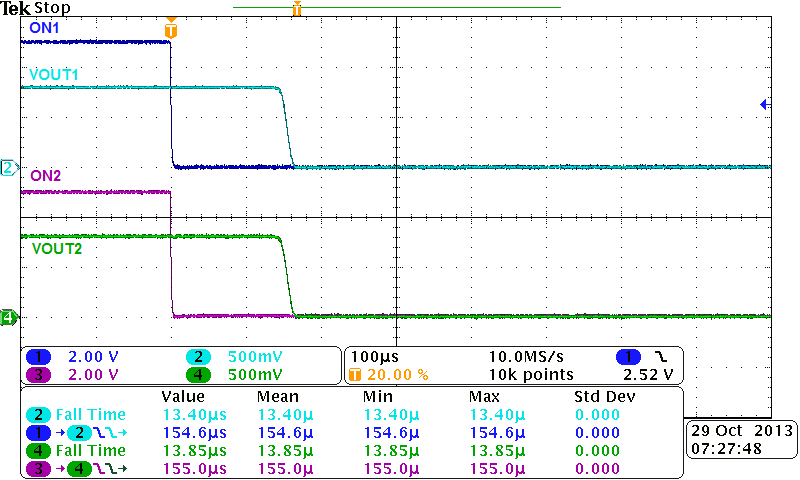

Figure 28. Turnoff Response Time (VIN = 0.8 V, VBIAS = 5 V, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω)
Figure 30. Turnoff Response Time (VIN = 5 V, VBIAS = 5 V, CIN = 1 µF, CL = 0.1 µF, RL = 10 Ω)
