6.8 Typical Characteristics

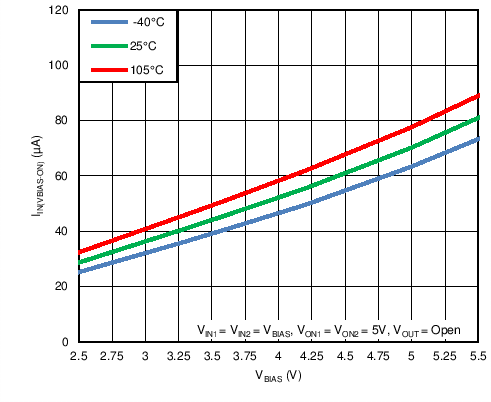

Figure 1. Quiescent Current vs. VBIAS (Both Channels)

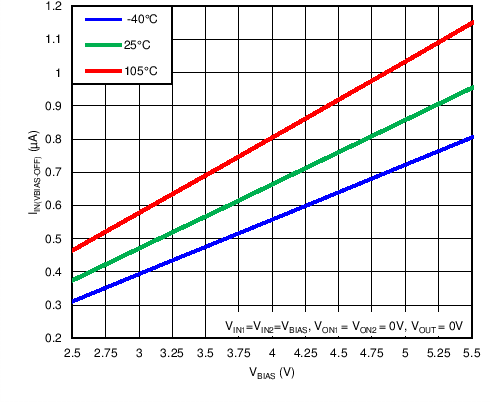

Figure 3. Shutdown Current vs. VBIAS (Both Channels)

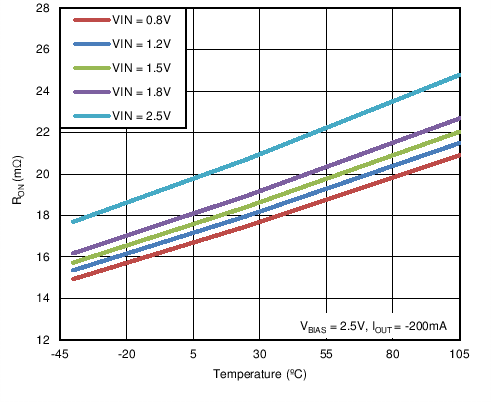

Figure 5. RON vs. Temperature (VBIAS = 2.5 V, Single Channel)

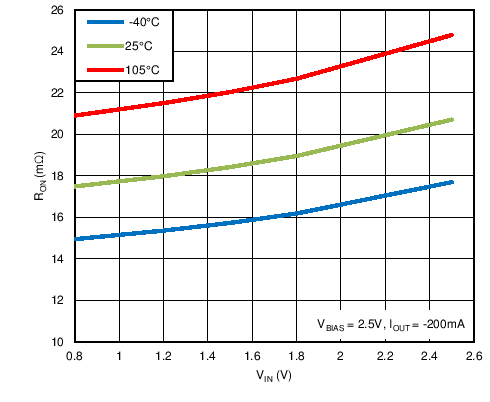

Figure 7. RON vs. VIN (VBIAS = 2.5 V, Single Channel)

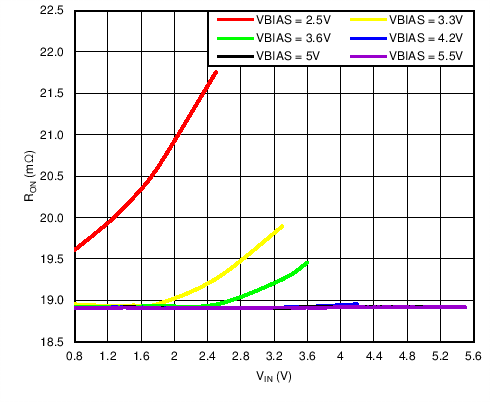

Figure 9. RON vs. VIN (TA = 25°C, Single Channel)

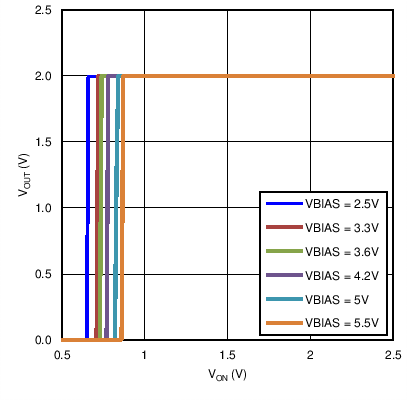

Figure 11. VOUT vs. VON (TA = 25°C, Single Channel)

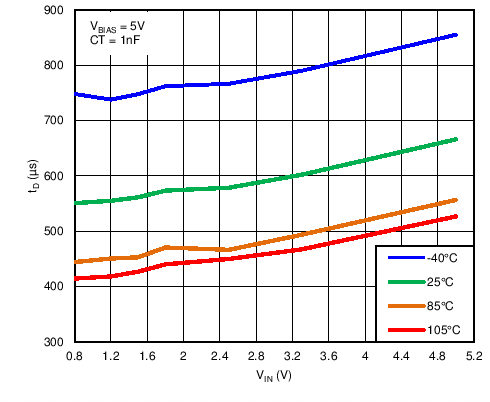

Figure 13. tD vs. VIN (VBIAS = 5 V, CT = 1 nF)

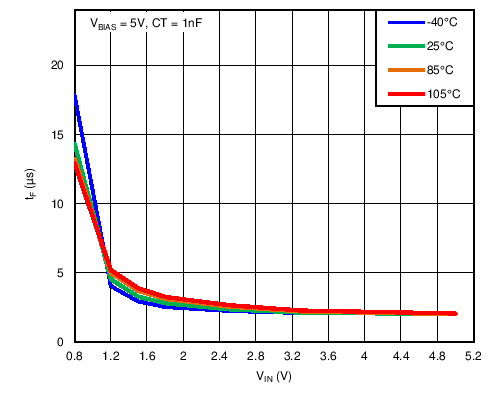

Figure 15. tF vs. VIN (VBIAS = 5 V, CT = 1 nF)

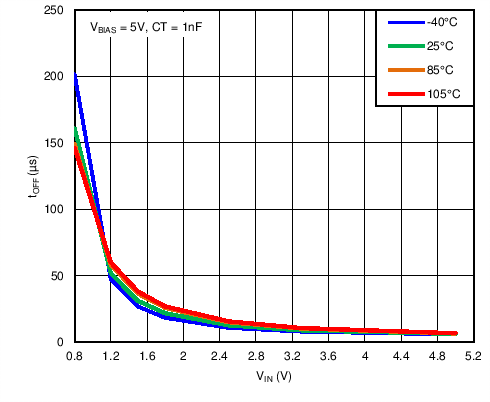

Figure 17. tOFF vs. VIN (VBIAS = 5 V, CT = 1 nF)

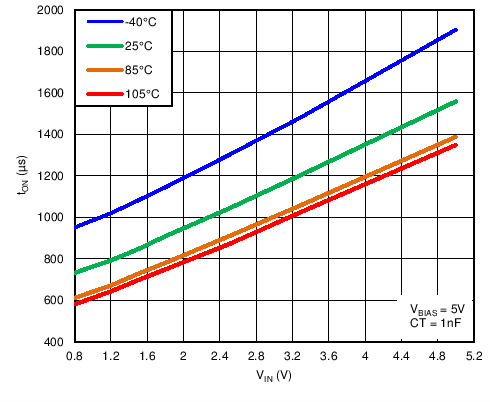

Figure 19. tON vs. VIN (VBIAS = 5 V, CT = 1 nF)

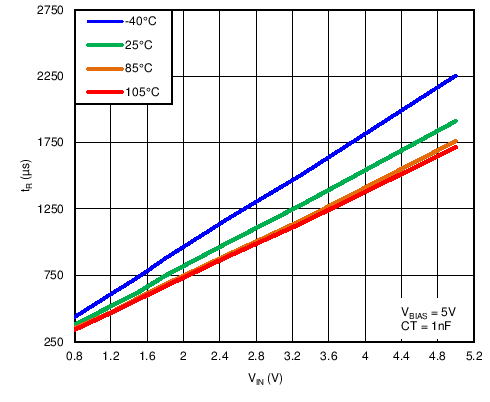

Figure 21. tR vs. VIN (VBIAS = 5 V, CT = 1 nF)

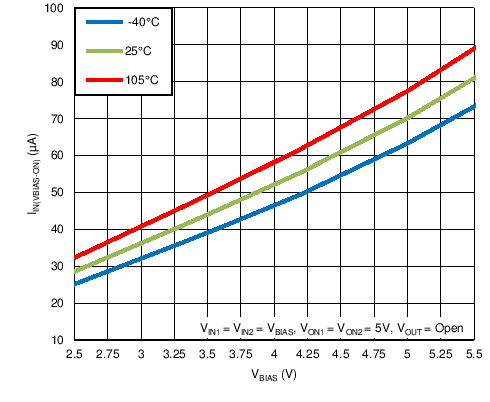

Figure 2. Quiescent Current vs. VBIAS (Single Channel)

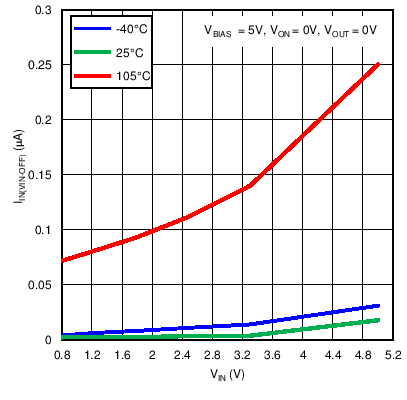

Figure 4. Off-State VIN Current vs. VIN (Single Channel)

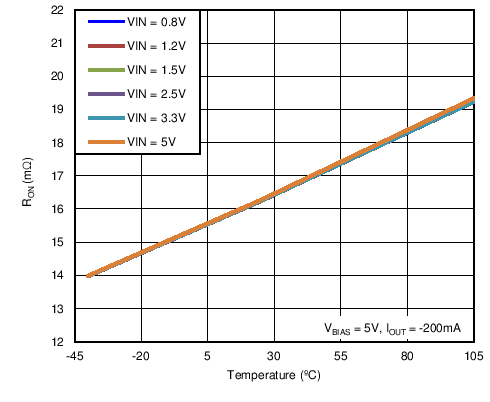

Figure 6. RON vs. Temperature (VBIAS = 5 V, Single Channel)

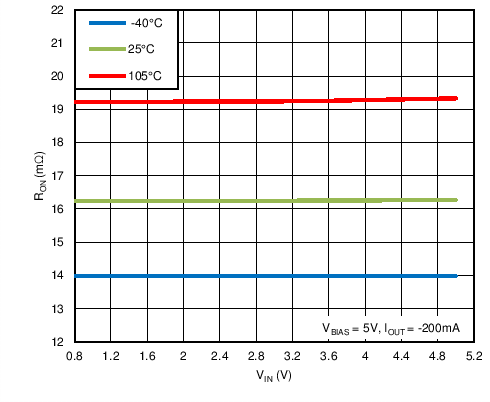

Figure 8. RON vs. VIN (VBIAS = 5 V, Single Channel)

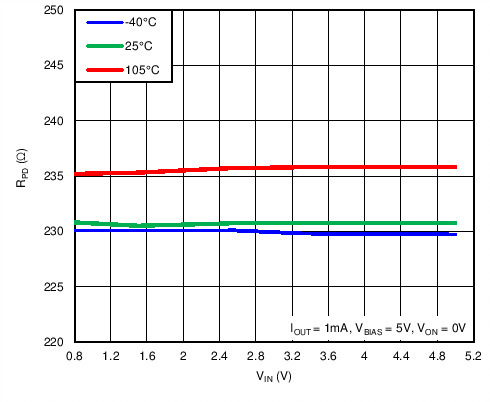

Figure 10. RPD vs. VIN (VBIAS = 5 V, Single Channel)

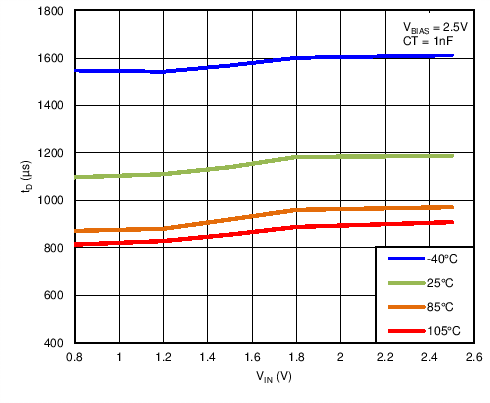

Figure 12. tD vs. VIN (VBIAS = 2.5 V, CT = 1 nF)

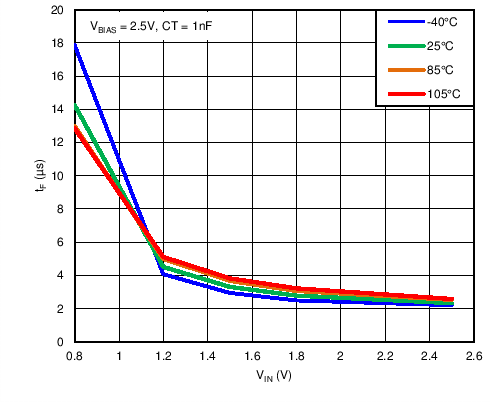

Figure 14. tF vs. VIN (VBIAS = 2.5 V, CT = 1 nF)

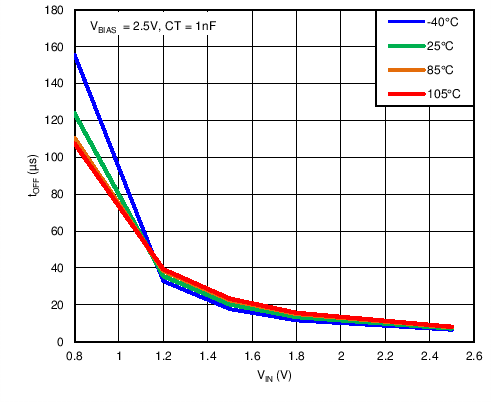

Figure 16. tOFF vs. VIN (VBIAS = 2.5 V, CT = 1 nF)

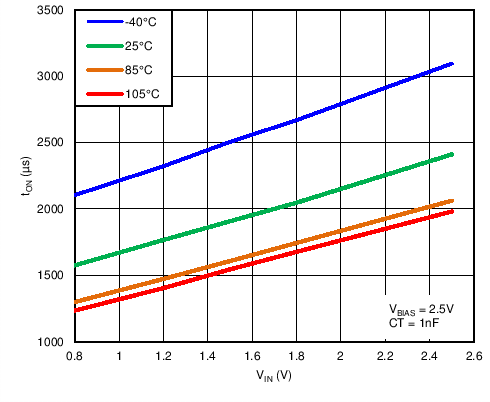

Figure 18. tON vs. VIN (VBIAS = 2.5 V, CT = 1 nF)

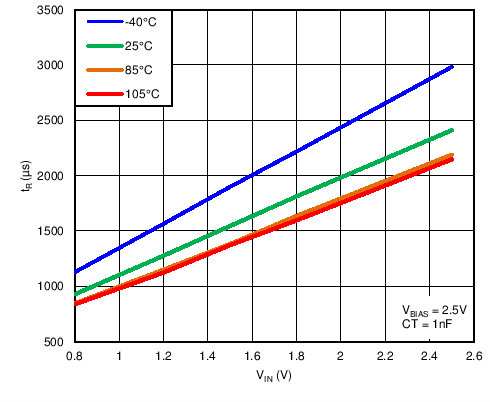

Figure 20. tR vs. VIN (VBIAS = 2.5 V, CT = 1 nF)

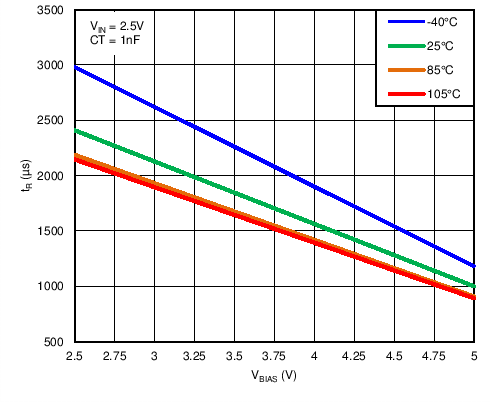

Figure 22. tR vs. VBIAS (VIN = 2.5 V, CT = 1 nF)
