ZHCSFI9B August 2016 – September 2023 TPD1E10B09-Q1
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Revision History
- 5 Pin Configuration and Functions
- 6 Specifications
-
7 Detailed Description
- 7.1 Overview
- 7.2 Functional Block Diagram
- 7.3
Feature Description
- 7.3.1 AEC-Q101 Qualified
- 7.3.2 IEC 61000-4-2 ESD Protection
- 7.3.3 ISO 10605 ESD Protection
- 7.3.4 IEC 61000-4-5 Surge Protection
- 7.3.5 IO Capacitance
- 7.3.6 Dynamic Resistance
- 7.3.7 DC Breakdown Voltage
- 7.3.8 Ultra Low Leakage Current
- 7.3.9 Clamping Voltage
- 7.3.10 Industrial Temperature Range
- 7.3.11 Space-Saving Footprint
- 7.4 Device Functional Modes
- 8 Application and Implementation
- 9 Device and Documentation Support
- 10Mechanical, Packaging, and Orderable Information
5 Pin Configuration and Functions

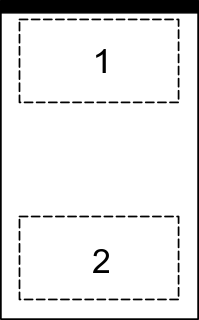

Figure 5-1 DPY Package, 2-Pin X1SON (Top View)Table 5-1 Pin Functions
| PIN | TYPE(1) | DESCRIPTION | ||
|---|---|---|---|---|
| NO. | NAME | |||
| 1 | IO | I/O | ESD protected I/O | |
| 2 | GND | Ground | Ground. Connect to ground | |
(1) I = input, O = output, GND = ground
