8.13 Bandwidth
Bandwidth (BW) is defined as the range of frequencies that are attenuated by < 3 dB when the input is applied to the source pin (Sx) of an on-channel, and the output is measured at the drain pin (D or Dx) of the TMUX730xF. Figure 8-15 shows the setup used to measure bandwidth of the switch.

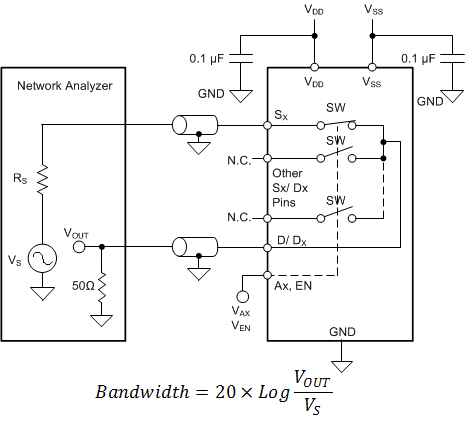

Figure 8-15 Bandwidth Measurement Setup
