7.4 IPOFF Leakage Current
IPOFF leakage current is defined as the leakage current flowing into or out of the source pin when the device is powered off. This current is denoted by the symbol IPOFF.

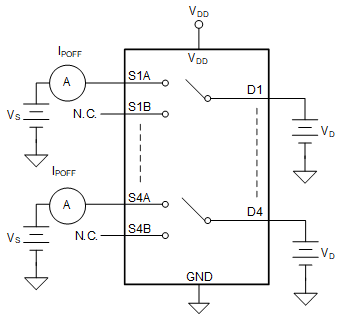

The setup used to measure both IPOFF leakage current is shown in Figure 30.
Figure 30. IPOFF Leakage Measurement Setup
