8.1.10 Bandwidth

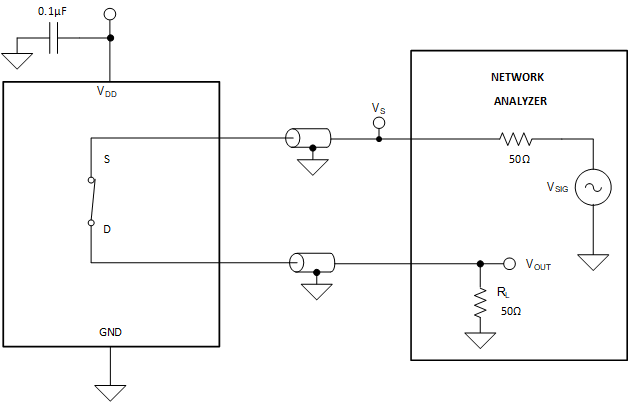

Bandwidth is defined as the range of frequencies that are attenuated by less than 3 dB when the input is applied to the source pin (Sx) of an on-channel, and the output is measured at the drain pin (D) of the device. Figure 16 shows the setup used to measure bandwidth.
Figure 16. Bandwidth Measurement Setup Equation 3.
