5 Pin Configuration and Functions
D and DGK Packages
SOIC-8 and VSSOP-8

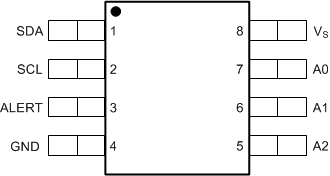

(Top View)
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| A0 | 7 | I | Address select. Connect to GND or VS. |
| A1 | 6 | I | Address select. Connect to GND or VS. |
| A2 | 5 | I | Address select. Connect to GND or VS. |
| ALERT | 3 | O | Overtemperature alert. Open-drain output; requires a pull-up resistor. |
| GND | 4 | — | Ground. |
| SCL | 2 | I | Serial clock. |
| SDA | 1 | I/O | Serial data. Open-drain output; requires a pull-up resistor. |
| VS | 8 | I | Supply voltage, 1.4 V to 3.6 V. |
