Figure 30 shows the signal chain for a first-order IIR with AGC gain compensation, using filter A.
Figure 30. Signal Chain for PRB_R1 and PRB_R4
Figure 31 shows the signal chain for a five-biquad, first-order IIR with AGC gain compensation, using filter A.
Figure 31. Signal Chain for PRB_R2 and PRB_R5

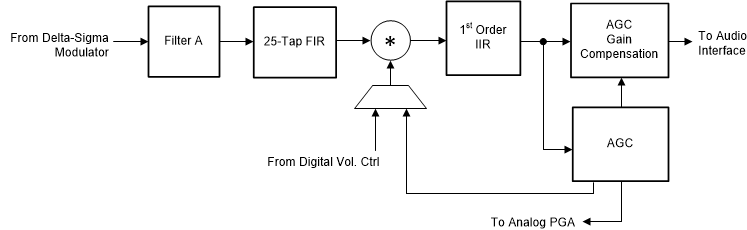

Figure 32 shows the signal chain for a 25-tap FIR, first-order IIR with AGC gain compensation, using filter A.
Figure 32. Signal Chain for PRB_R3 and PRB_R6
Figure 33 shows the signal chain for a first-order IIR with AGC gain compensation, using filter B.
Figure 33. Signal Chain for PRB_R7 and PRB_R10
Figure 34 shows the signal chain for a three-biquad, first-order IIR with AGC gain compensation, using filter B.
Figure 34. Signal Chain for PRB_R8 and PRB_R11

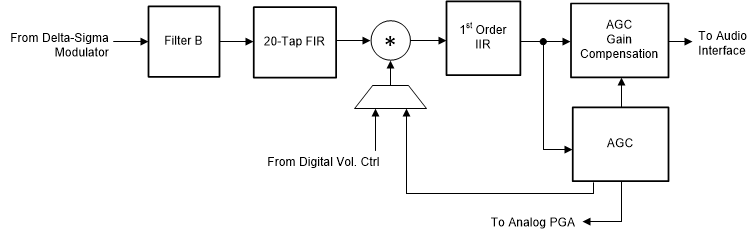

Figure 35 shows the signal chain for a 20-tap FIR, first-order IIR with AGC gain compensation, using filter B.
Figure 35. Signal Chain for PRB_R9 and PRB_R12

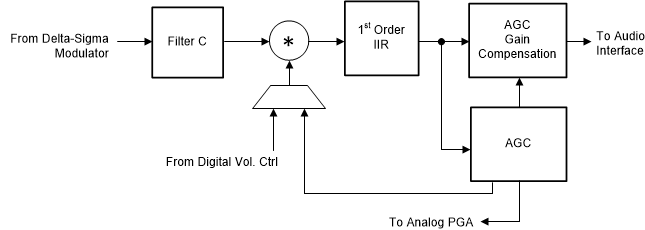

Figure 36 shows the signal chain for a first-order IIR with AGC gain compensation, using filter C.
Figure 36. Signal Chain for PRB_R13 and PRB_R16
Figure 37 shows the signal chain for a five-biquad, first-order IIR with AGC gain compensation, using filter C.
Figure 37. Signal Chain for PRB_R14 and PRB_R17
Figure 38 shows the signal chain for a 25-tap FIR, first-order IIR with AGC gain compensation, using filter C.
Figure 38. Signal for PRB_R15 and PRB_R18
