7.9 Typical Characteristics

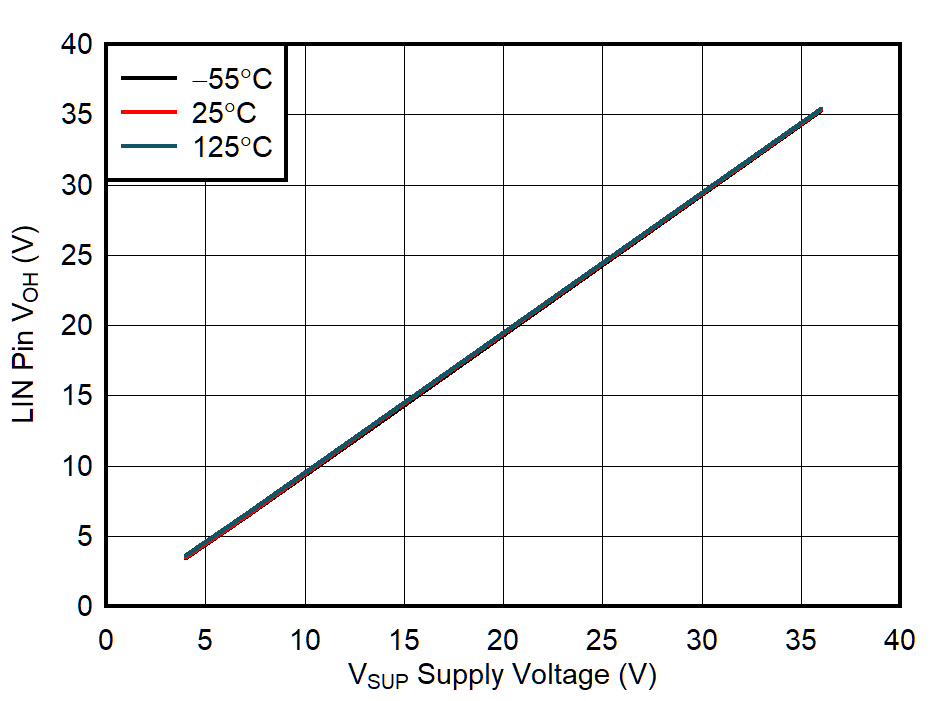

Figure 7-1 VOH vs VSUP and Temperature
Representative
of only one VSUP supply.

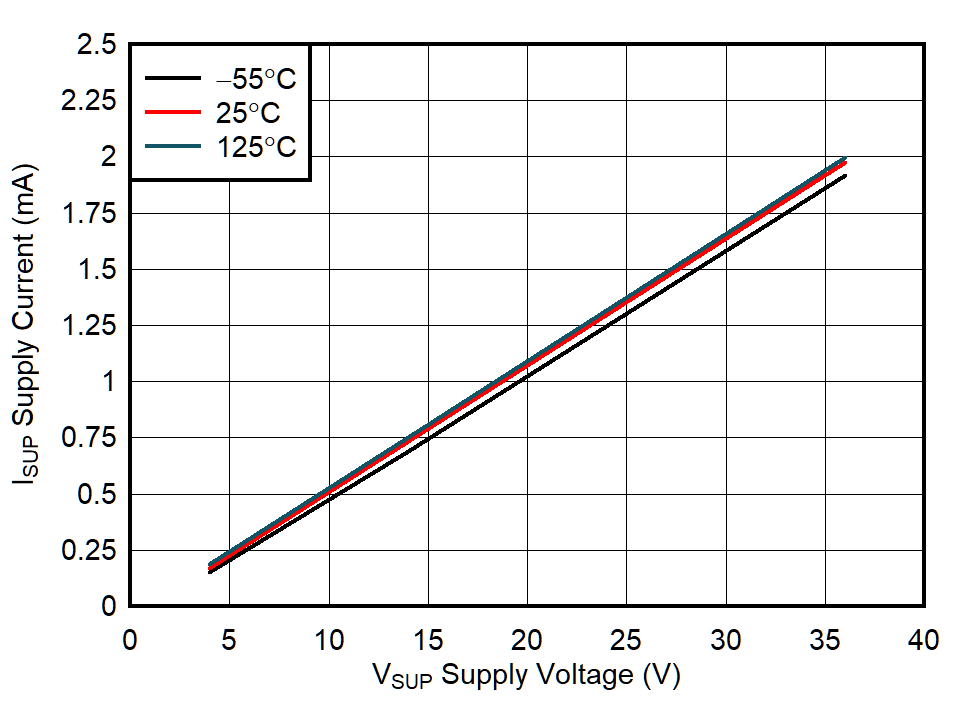

Figure 7-3 Supply Current vs Voltage Supply Across Temperature| Normal Mode (Dominant) | ||
Representative of only one VSUP supply.

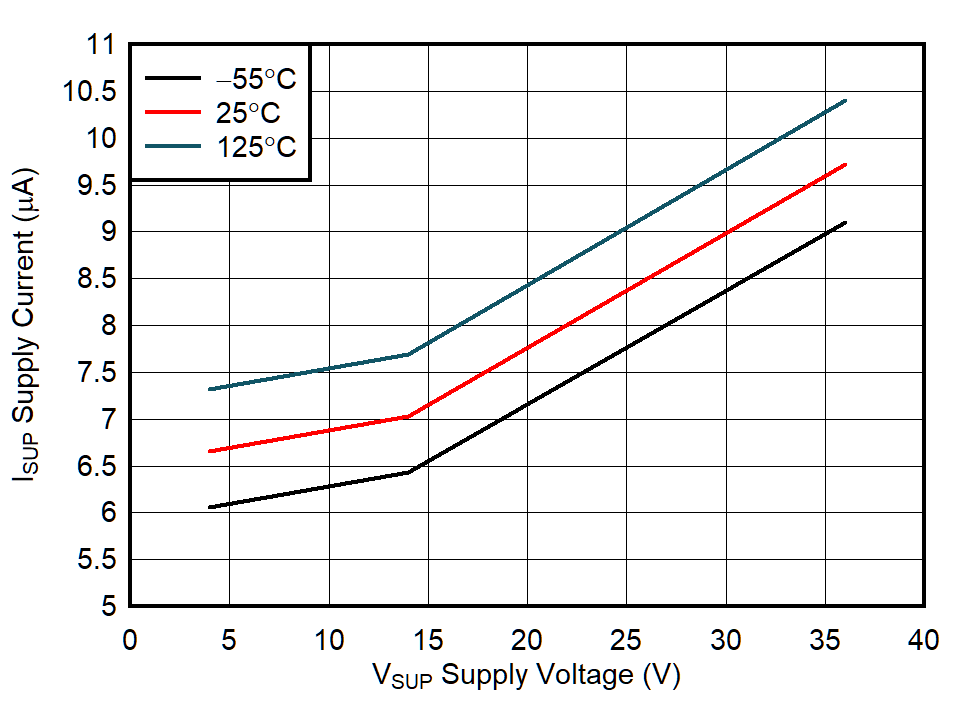

Figure 7-5 Supply Current vs Voltage Supply and Temperature| Standby Mode (Dominant) | ||
Representative of only one VSUP supply.

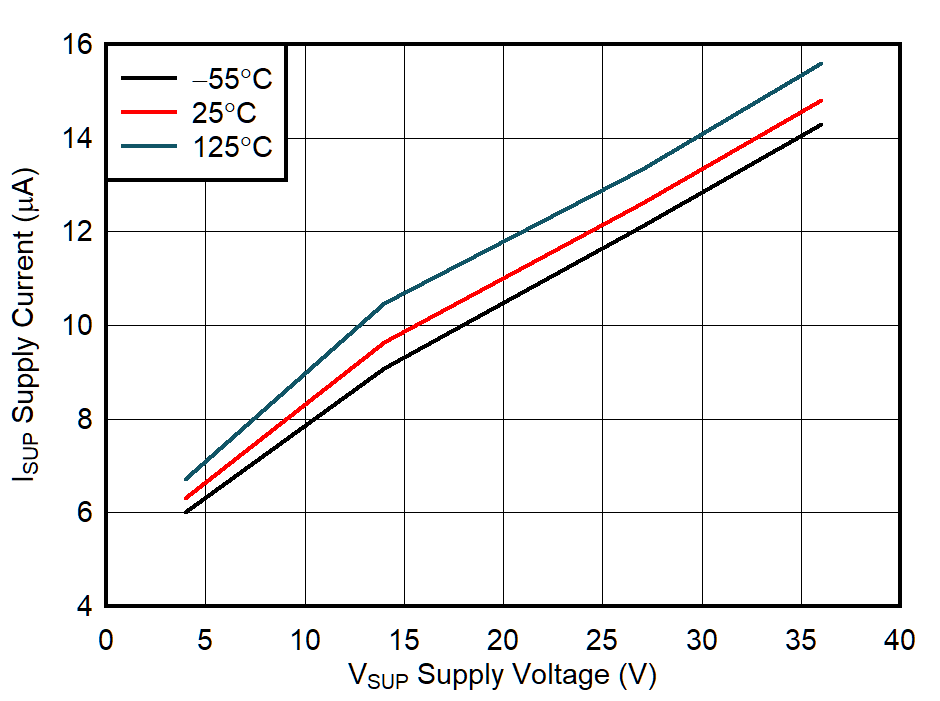

Figure 7-7 Supply Current vs Voltage Supply and Temperature| Sleep Mode | ||

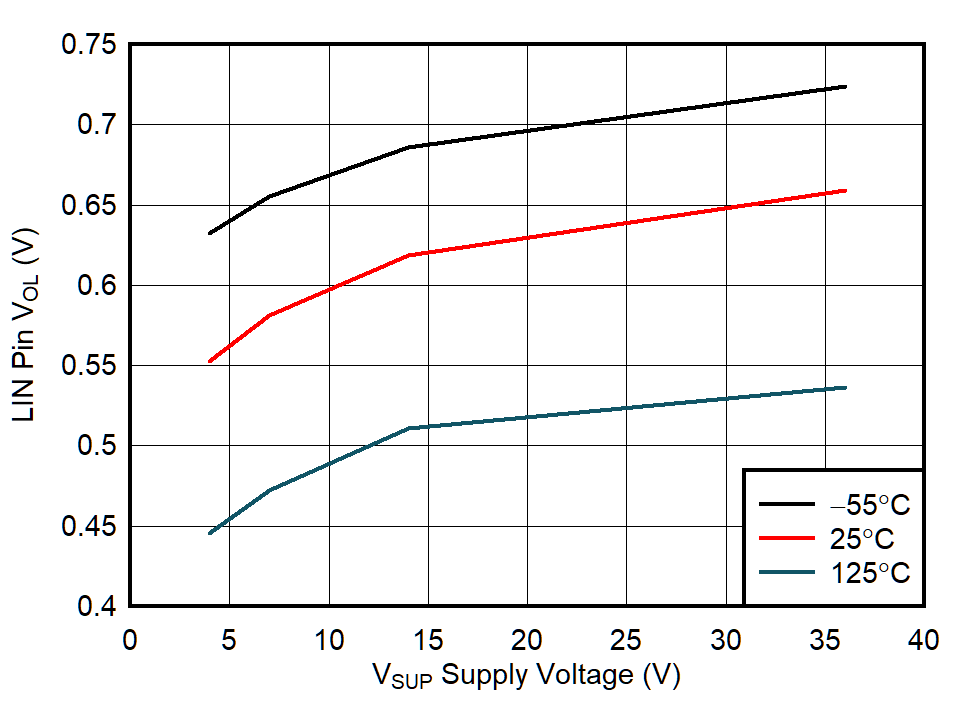

Figure 7-2 VOL vs VSUP and Temperature
Representative
of only one VSUP supply.

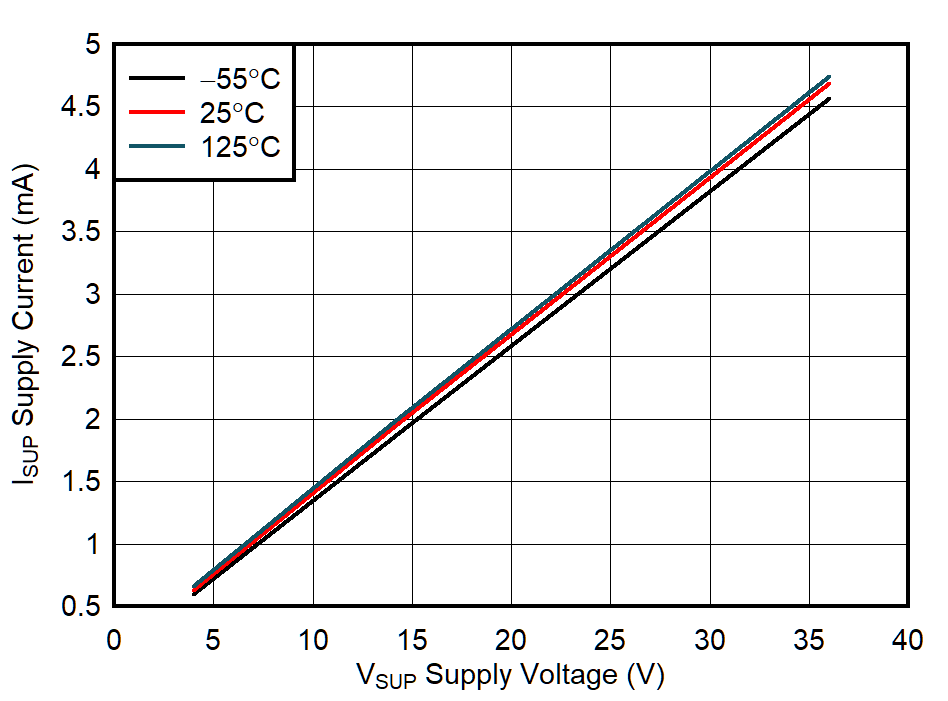

Figure 7-4 Supply Current vs Voltage Supply Across Temperature| Normal Mode (Recessive) | ||
Representative of only one VSUP supply.

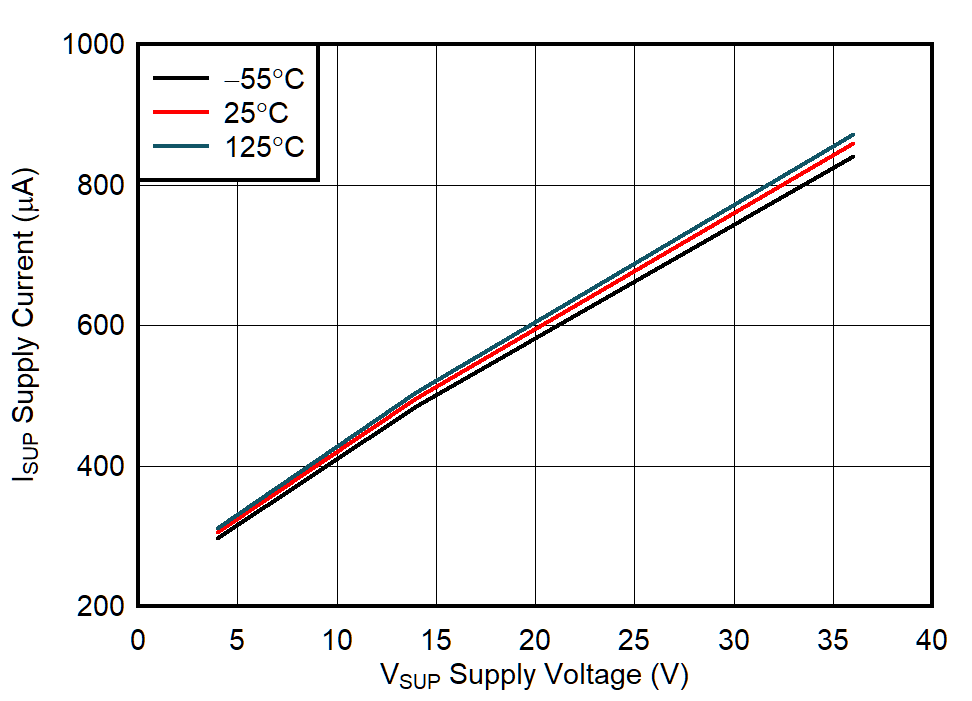

Figure 7-6 Supply Current vs Voltage Supply and Temperature| Standby Mode (Recessive) | ||
