6.14 Typical Characteristics (Stereo BTL Mode): fSPK_AMP = 384 kHz
At TA = 25°C, fSPK_AMP = 384 kHz, input signal is 1 kHz Sine, unless otherwise noted. Filter used for 8 Ω = 22 µH + 0.68 µF, Filter used for 6 Ω = 15 µH + 0.68 µF, Filter used for 4 Ω = 10 µH + 0.68 µF unless otherwise noted.
Thermal Limits are referenced to TAS5760xxEVM Rev D

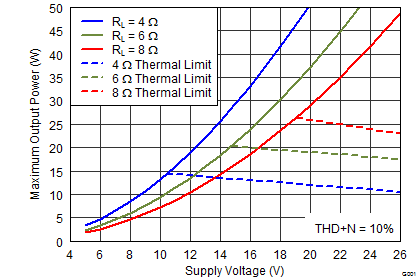

Figure 1. Output Power vs PVDD

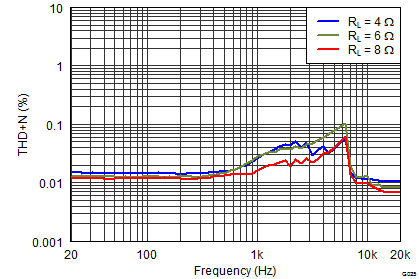

PVDD = 24 V, POSPK = 1 W
Figure 3. THD+N vs Frequency

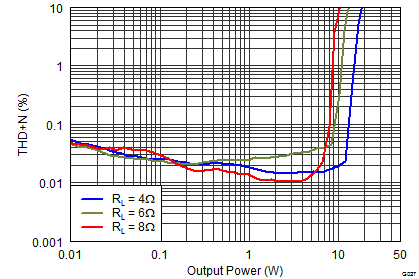

PVDD = 12 V, Both Channels Driven
Figure 5. THD+N vs Output Power

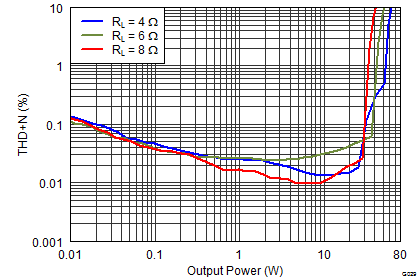

PVDD = 24 V, Both Channels Driven
Figure 7. THD+N vs Output Power

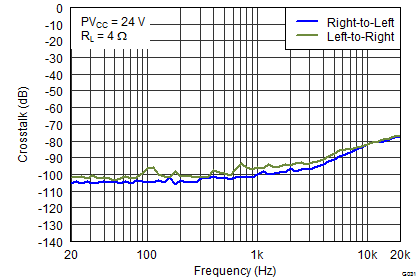

Figure 9. Crosstalk vs Frequency

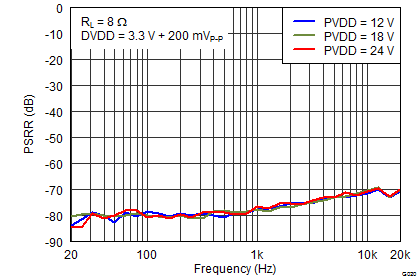

Figure 11. DVDD PSRR vs Frequency
With LC Filter as Shown on the EVM
Figure 13. Idle Current Draw vs PVDD

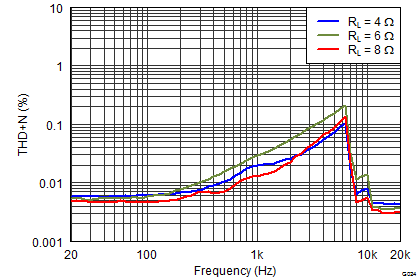

PVDD = 12 V, POSPK = 1 W
Figure 2. THD+N vs Frequency

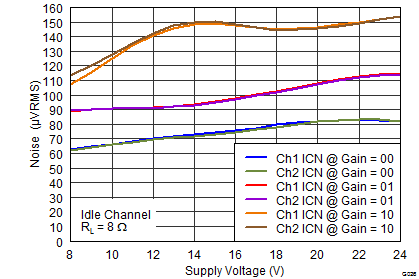

Figure 4. Idle Channel Noise vs PVDD

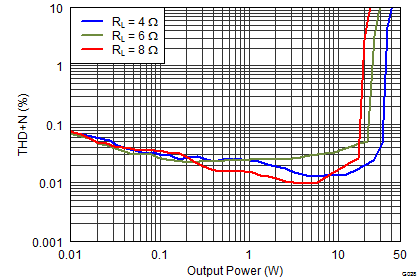

PVDD = 18 V, Both Channels Driven
Figure 6. THD+N vs Output Power

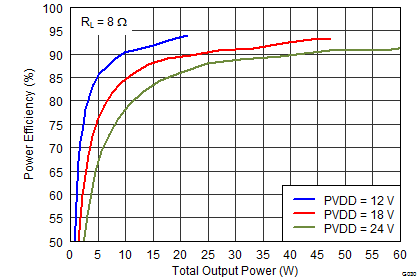

Figure 8. Efficiency vs Output Power

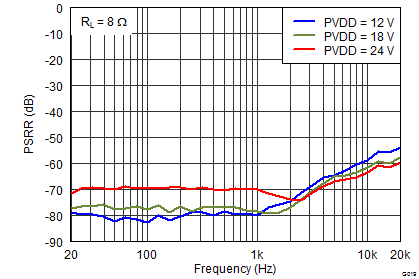

Figure 10. PVDD PSRR vs Frequency
Figure 12. Idle Current Draw vs PVDD (Filterless)

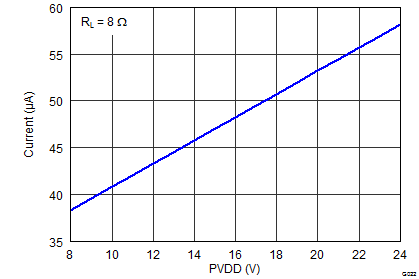

Figure 14. Shutdown Current Draw vs PVDD (Filterless)
