6 Parameter Measurement Information
A. Includes probe and jig
capacitance

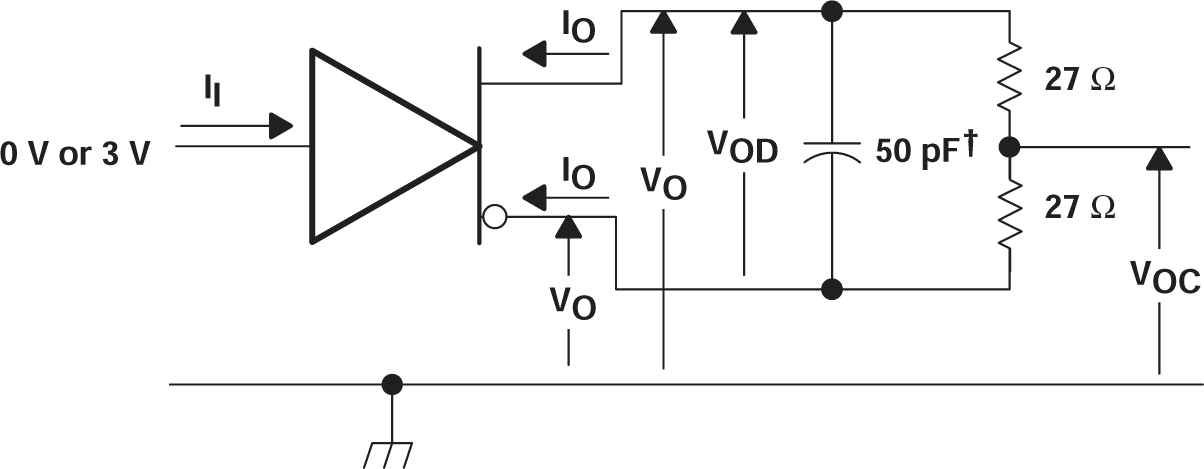

Figure 6-1 Driver Test Circuit, vOD And vOC Without Common-Mode Loading

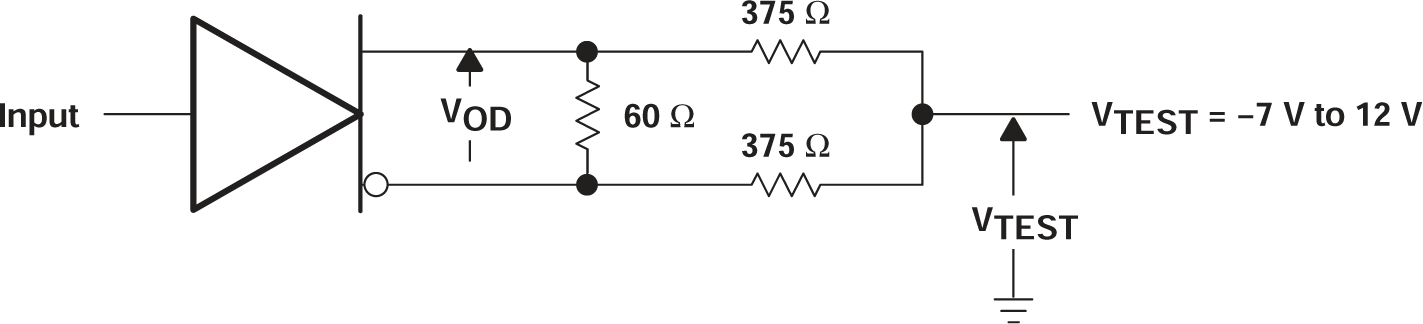

Figure 6-2 Driver Test Circuit, vOD With Common-Mode Loading
A.
PRR = 1 MHz, 50% duty cycle, tr < 6 ns, tf < 6 ns, Zo = 50 Ω
B.

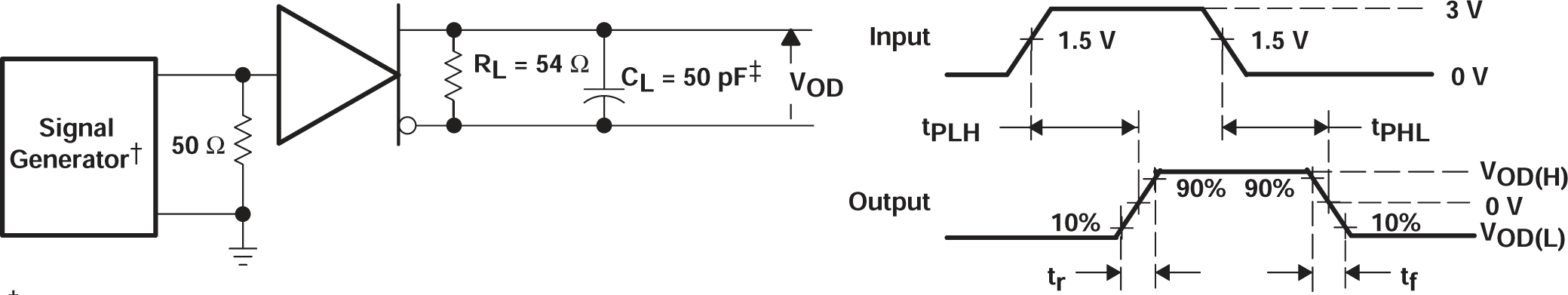

Figure 6-3 Driver Switching Test Circuit and WaveformsIncludes probe and jig capacitance

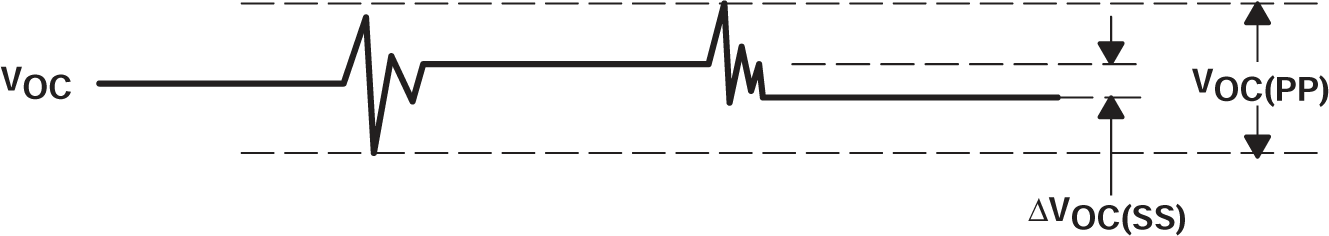

Figure 6-4 VOC Definitions
A. The input pulse is supplied by a generator having the following characteristics: PRR = 1.25 kHz, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns, ZO = 50 Ω.
B. CL includes probe and jig capacitance.

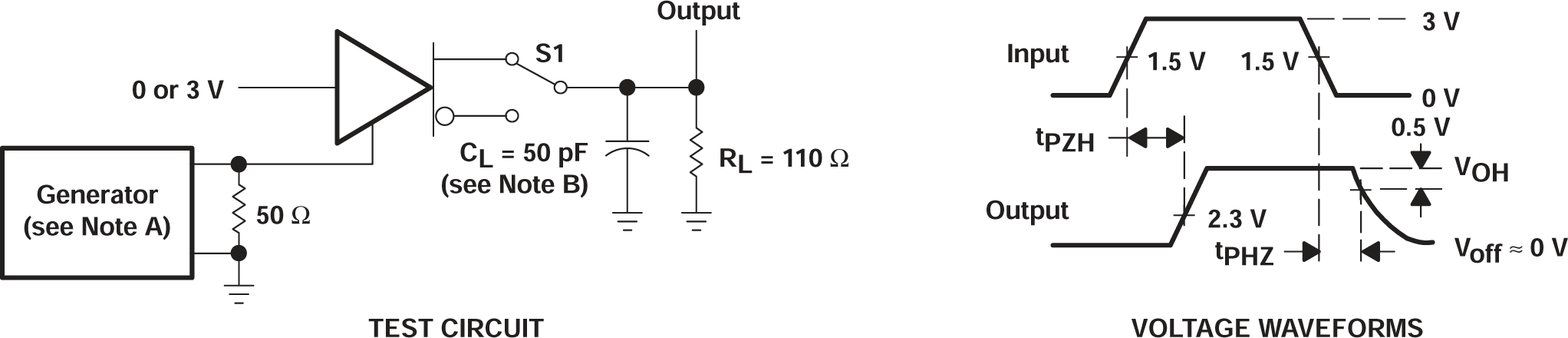

Figure 6-5 Driver TPZH And TPHZ Test Circuit and Voltage Waveforms
A. The input pulse is supplied by a generator having the following characteristics: PRR = 1.25 kHz, 50% duty cycle, tr ≤ 10 ns, tf ≤ 10 ns, ZO = 50 Ω.
B. CL includes probe and jig capacitance.

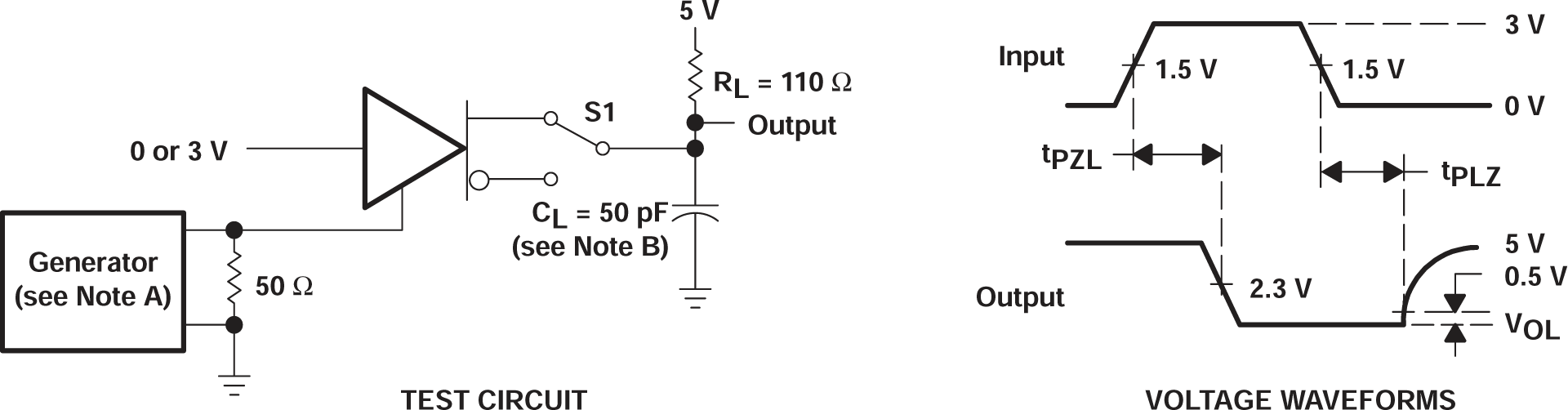

Figure 6-6 Driver TPZL And TPLZ Test Circuit and Voltage Waveforms
A. This value includes probe and jig capacitance (± 10%).

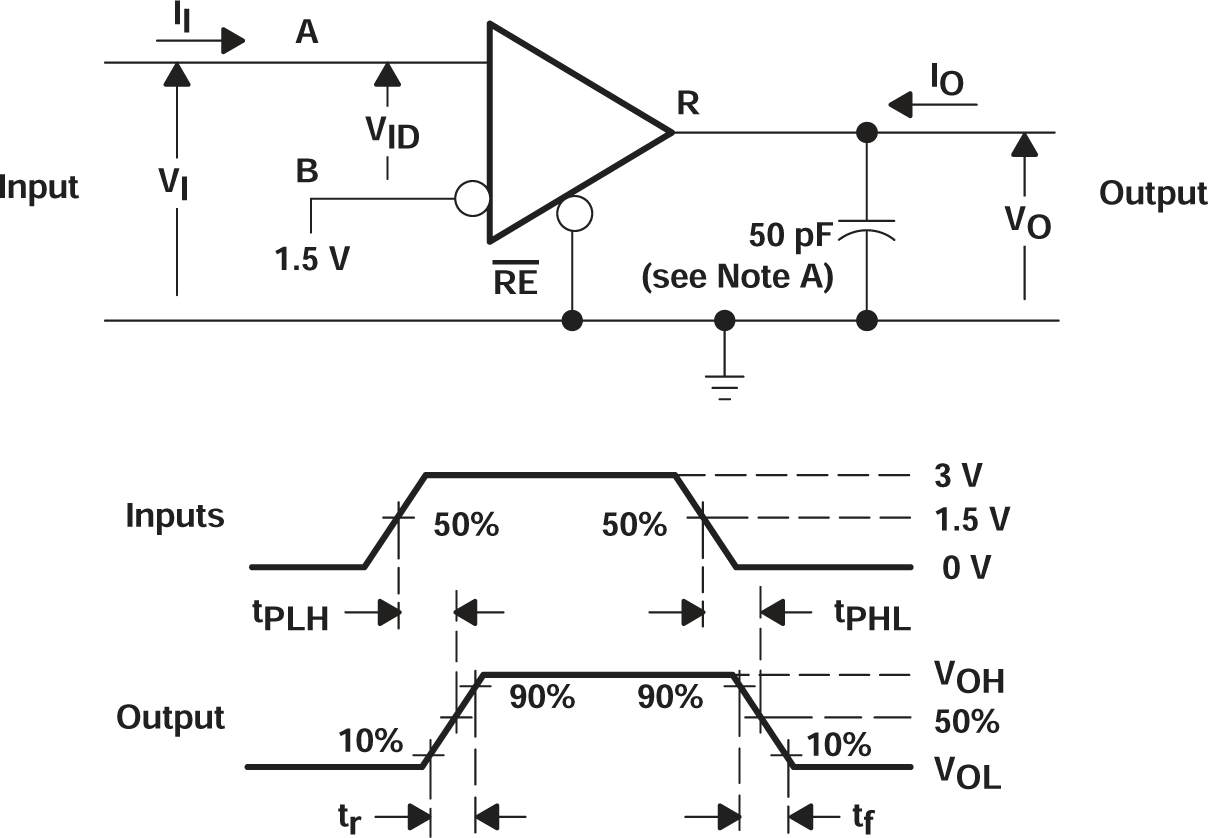

Figure 6-7 Receiver TPLH And TPHL Test Circuit and Voltage Waveforms
A. This value includes probe and jig capacitance (± 10%).

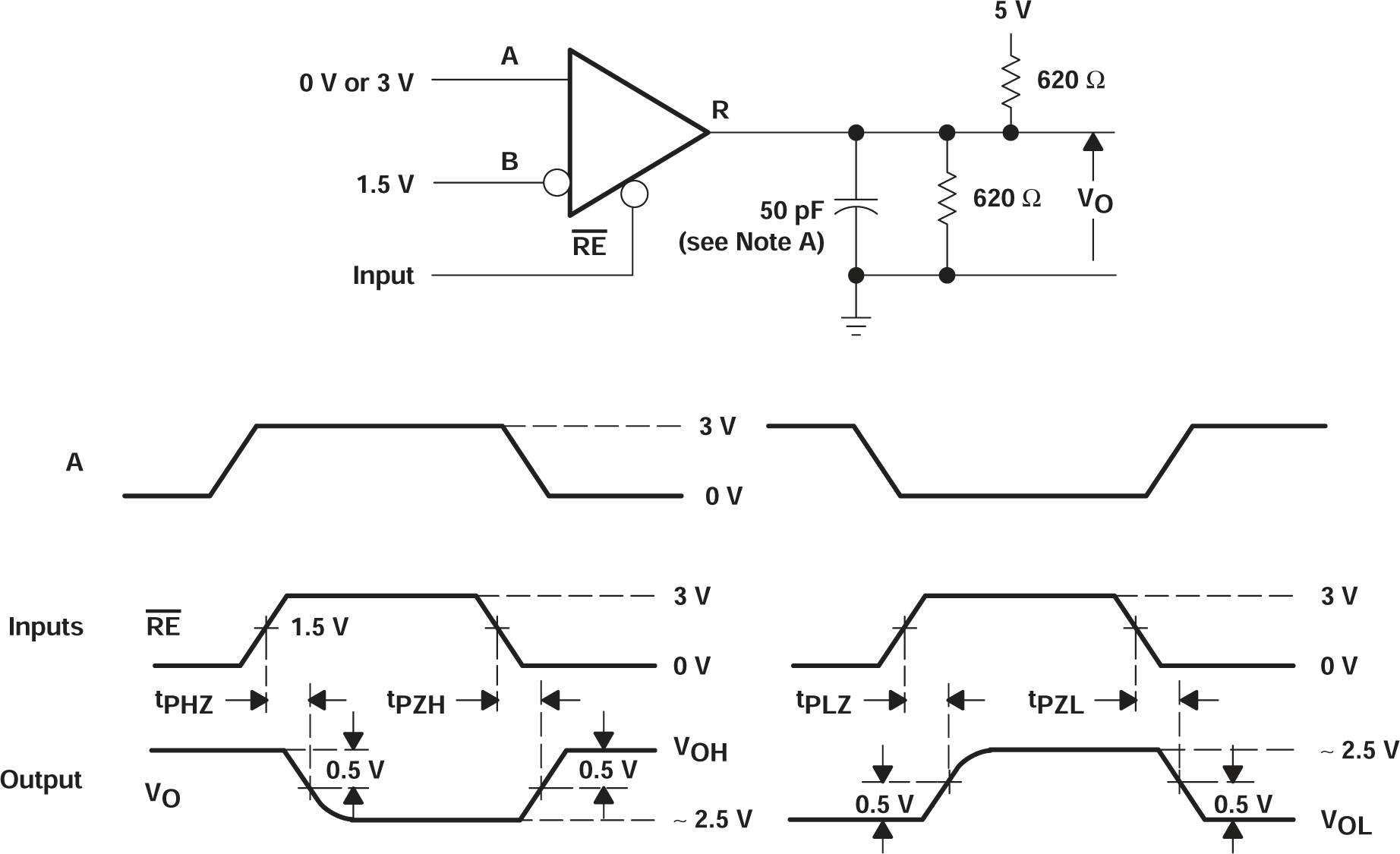

Figure 6-8 Receiver TPZL, TPLZ, TPZH, And TPHZ Test Circuit and Voltage Waveforms
