ZHCSTS0F October 1993 – November 2023 SN65LBC173 , SN75LBC173
PRODUCTION DATA
- 1
- 1 特性
- 2 應用
- 3 說明
- 4 Pin Configuration and Functions
- 5 Specifications
- 6 Parameter Measurement Information
- 7 Detailed Description
- 8 Device and Documentation Support
- 9 Revision History
- 10Mechanical, Packaging, and Orderable Information
封裝選項
請參考 PDF 數據表獲取器件具體的封裝圖。
機械數據 (封裝 | 引腳)
- N|16
- D|16
散熱焊盤機械數據 (封裝 | 引腳)
訂購信息
5.7 Typical Characteristics

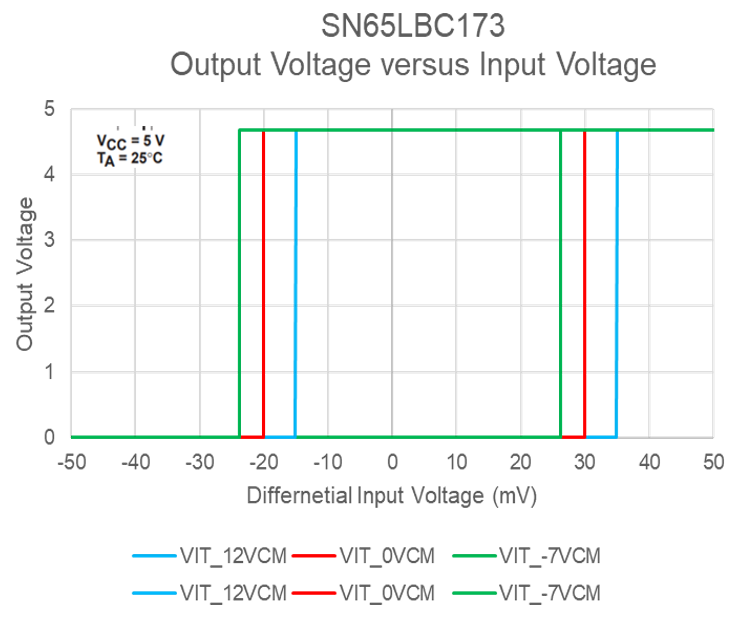

Figure 5-1 Output Voltage vs Differential Input Voltage

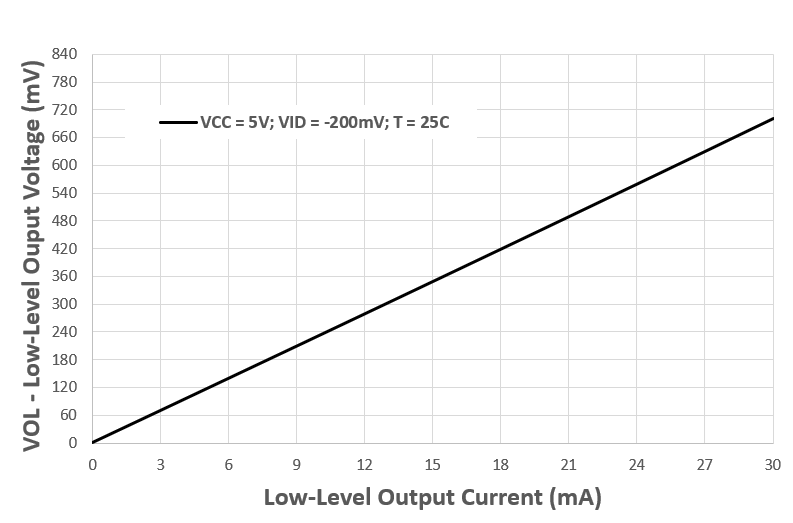

Figure 5-3 Low-level Output Voltage vs Low-level Output Current

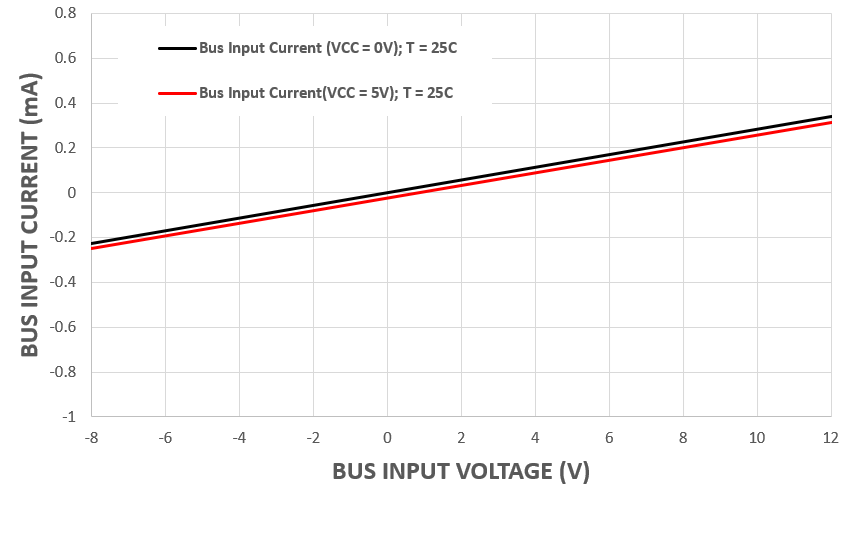

Figure 5-5 Bus Input Current vs Input Voltage (Complementary Input at 0 V)

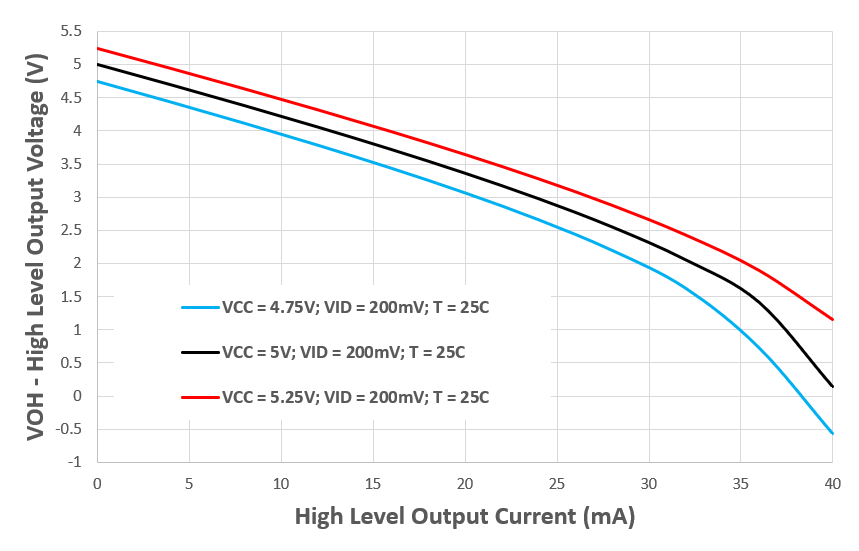

Figure 5-2 High-level Output Voltage vs High-level Output Current

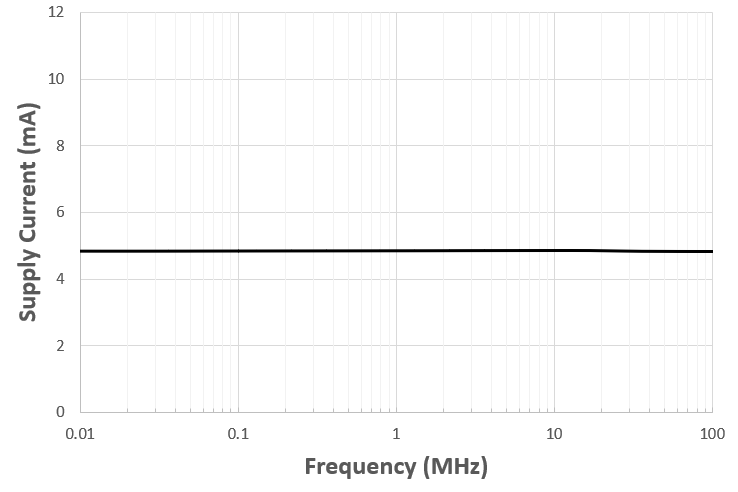

Figure 5-4 Average Supply Current vs Frequency

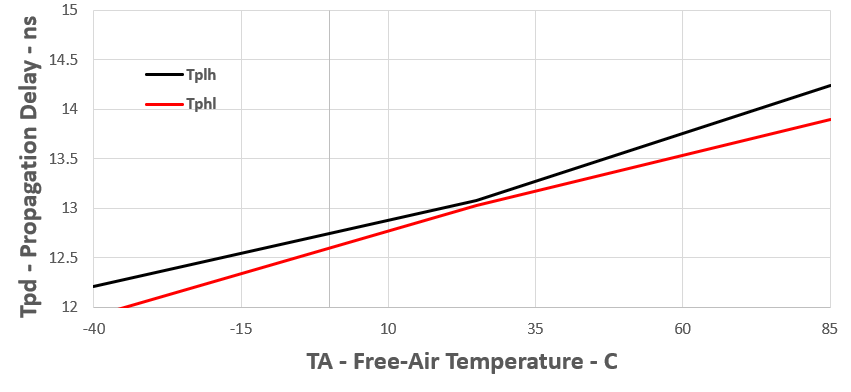

Figure 5-6 Propagation Delay Time vs Free-air Temperature
