7.1 Device Functional Modes
Table 7-1 Function Table (Each
Receiver)
| DIFFERENTIAL INPUTS | ENABLES(1) | OUTPUT | |
|---|---|---|---|
| A?B | G | G | Y |
| VID ≥ 0.2 V | H | X | H |
| X | L | H | |
| ?0.2 V < VID < 0.2 V | H | X | ? |
| X | L | ? | |
| VID ≤ ?0.2 V | H | X | L |
| X | L | L | |
| X | L | H | Z |
| Open Circuit | H | X | H |
| X | L | H | |
(1) H = high level, L = low level, X = irrelevant, Z =
high impedance (off), ? = indeterminate

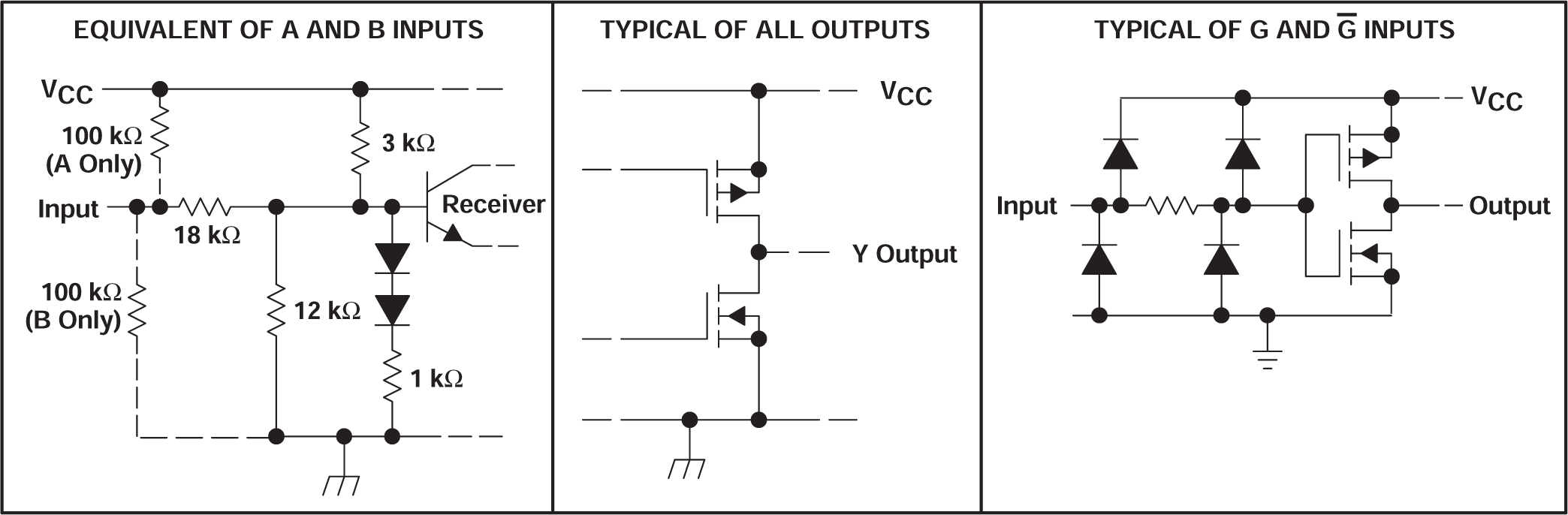

Figure 7-1 Schematics of Inputs and
Outputs
