10.2.3 Application Curves
Figure 10-2 and Figure 10-3 show the propagation delay from the TXD pin to the LIN pin for both the recessive-to-dominant and dominant-to-recessive states under lightly loaded conditions.

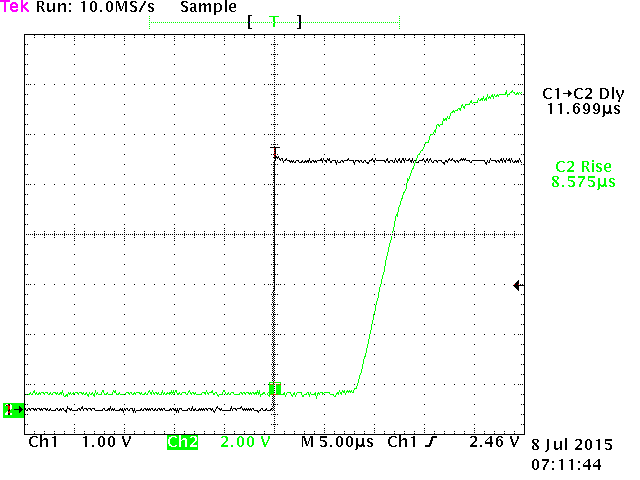

Figure 10-2 Dominant-to-Recessive Propagation Delay

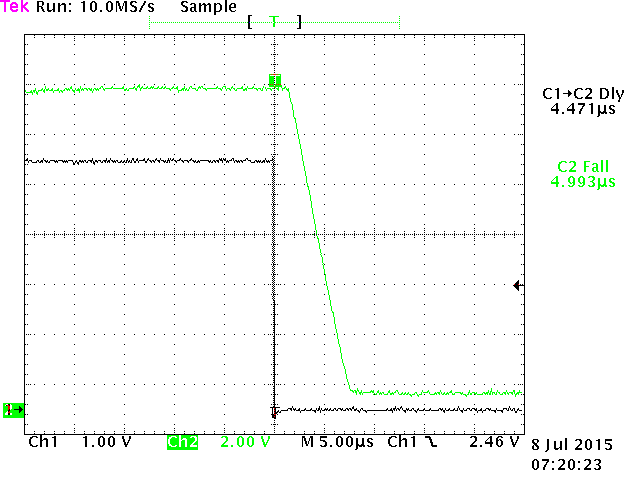

Figure 10-3 Recessive-to-Dominant Propagation Delay
