Parameter Measurement Information
Note:
Test load capacitance includes probe and jig capacitance (unless otherwise specified).
Signal generator characteristics: rise and fall time < 6 ns, pulse rate 100 kHz, 50% duty cycle, Zo = 50 ? (unless otherwise specified).

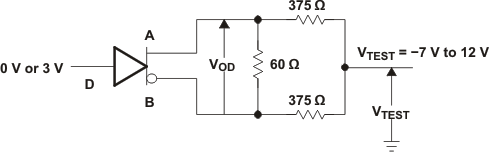

Figure 7-1 Driver Test Circuit, VOD and VOC Without Common-Mode Loading
Figure 7-2 Driver Test Circuit, VOD With Common-Mode Loading

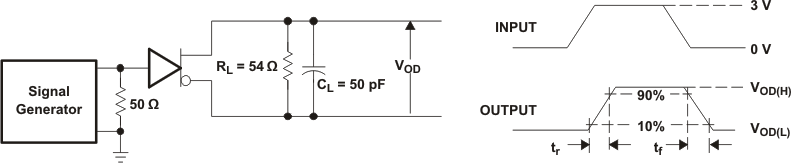

Figure 7-3 Driver Switching Test Circuit and Rise/Fall Time Measurement

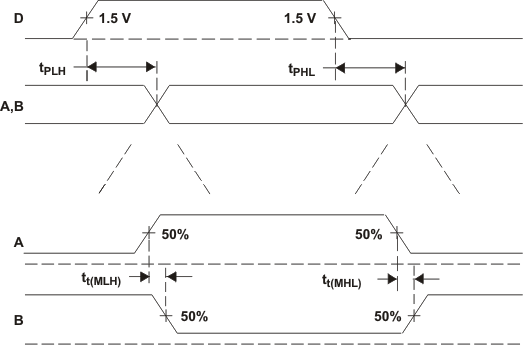

Figure 7-4 Driver Switching Waveforms for Propagation Delay and Output Midpoint Time Measurements

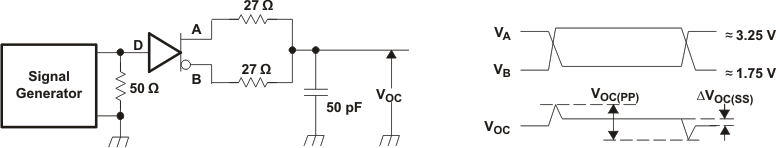

Figure 7-5 Driver VOC Test Circuit and Waveforms
A. VOD(RING) is measured at four points on the output waveform, corresponding to overshoot and undershoot from the VOD(H) and VOD(L) steady state values.

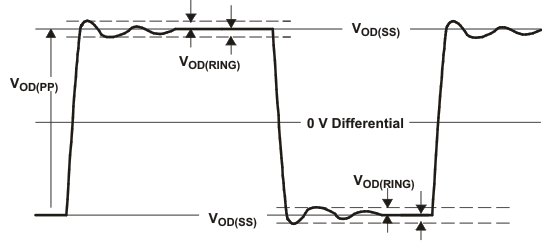

Figure 7-6 VOD(RING) Waveform and Definitions

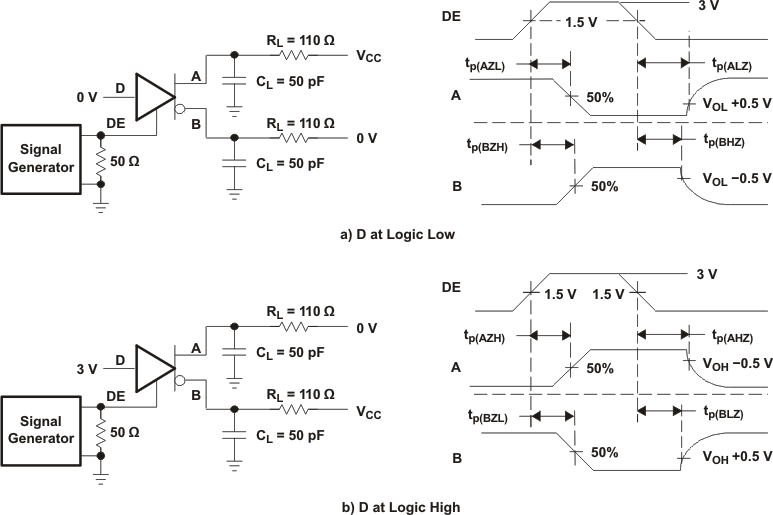

Figure 7-7 Driver Enable/Disable Test

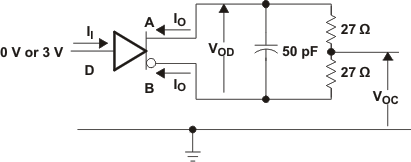

Figure 7-8 Driver Short-Circuit Test Circuit and Waveforms (Short Circuit applied at Time t = 0)

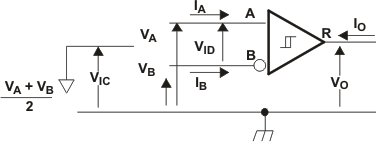

Figure 7-9 Receiver DC Parameter Definitions

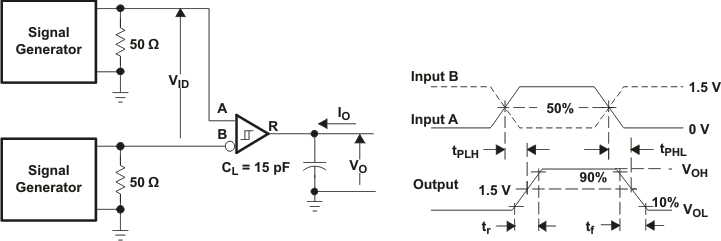

Figure 7-10 Receiver Switching Test Circuit and Waveforms

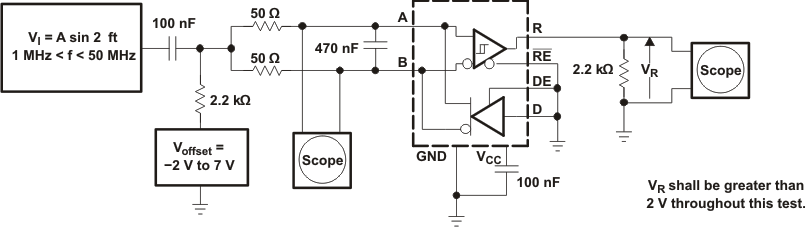

Figure 7-11 Receiver Common-Mode Rejection Test Circuit
Figure 7-12 Receiver Enable Time From Standby (Driver Disabled)

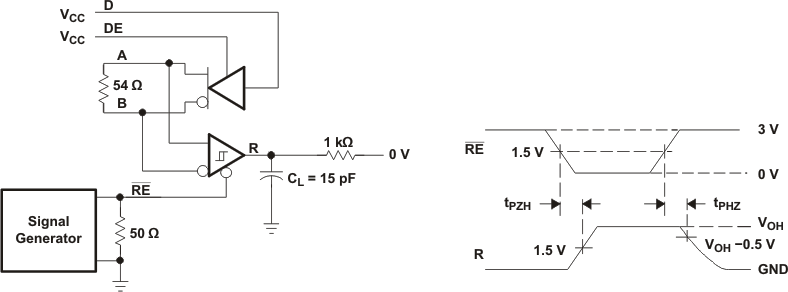

Figure 7-13 Receiver Enable Test Circuit and Waveforms, Data Output High (Driver Active)

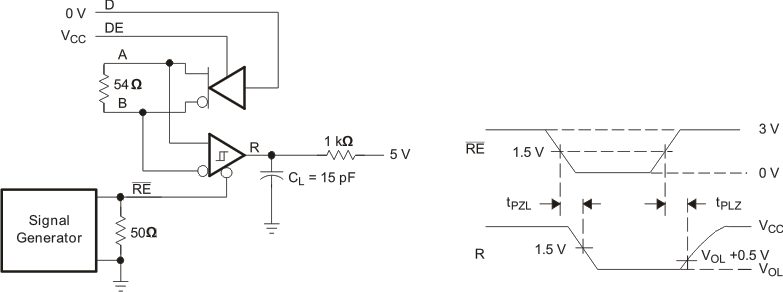

Figure 7-14 Receiver Enable Test Circuit and Waveforms, Data Output Low (Driver Active)

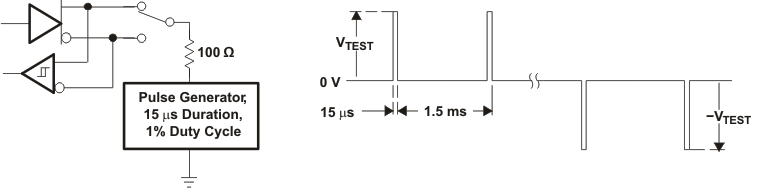

Figure 7-15 Test Circuit and Waveforms, Transient Overvoltage Test
