6.9 Typical Characteristics

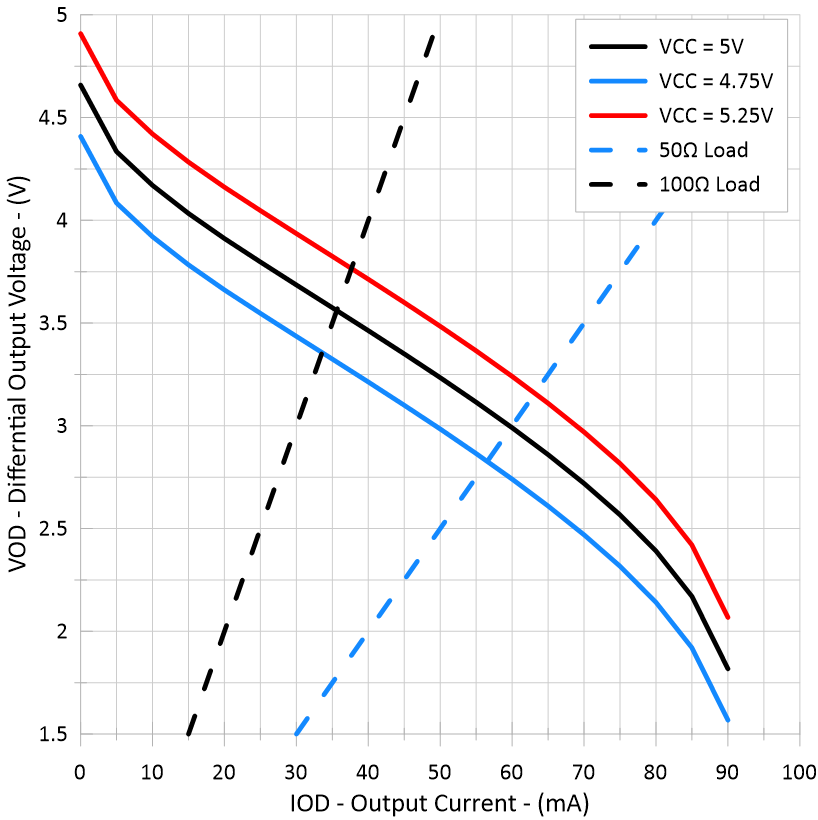

Figure 6-1 Differential Output Voltage vs Load Current

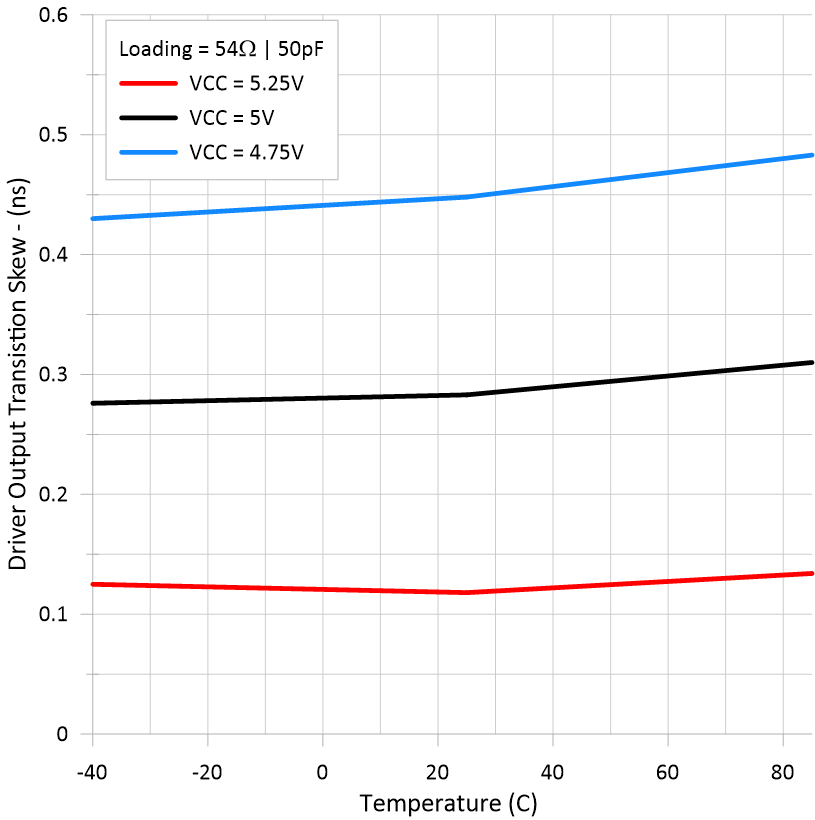

Figure 6-3 Driver Output Transition Skew vs Free-Air Temperature

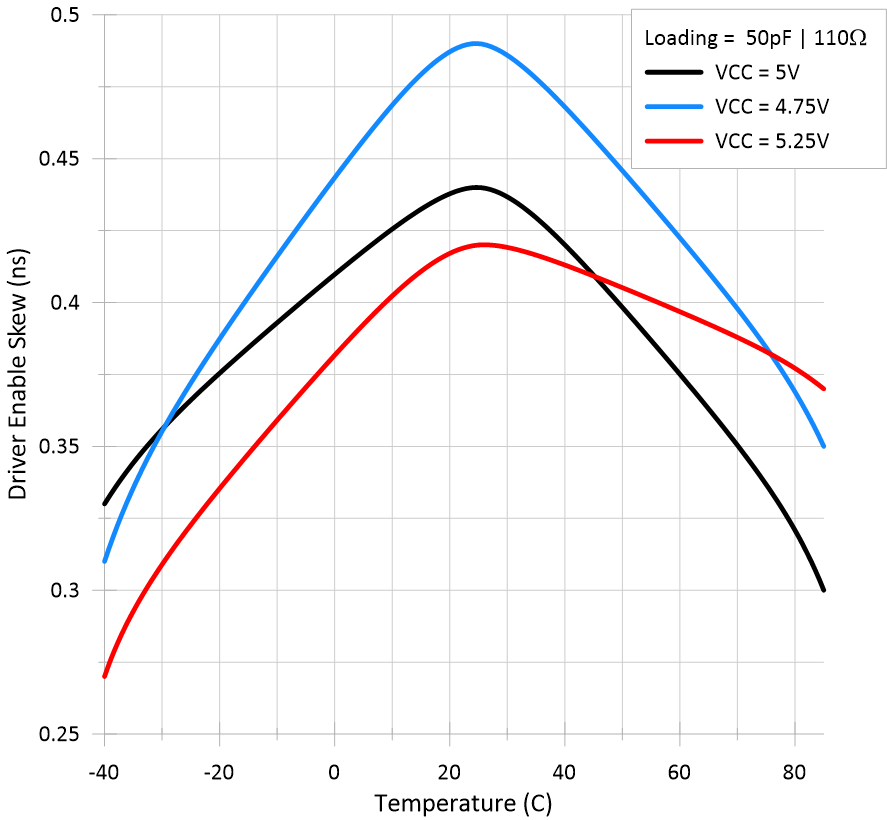

Figure 6-5 Driver Enable Skew vs Free-Air Temperature

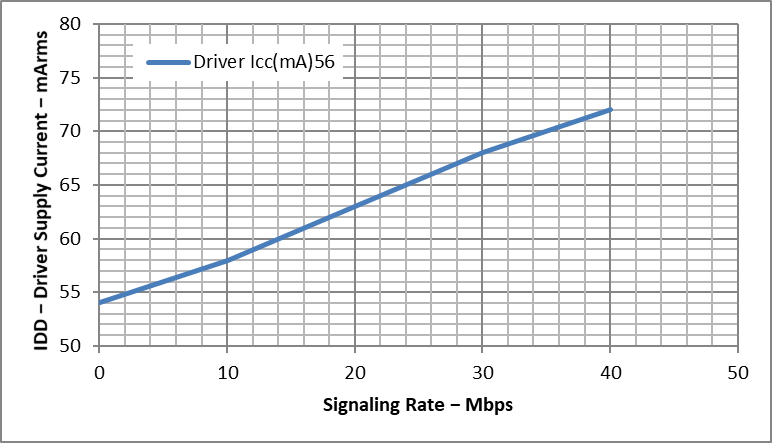

Figure 6-2 Driver Supply Current vs Signaling Rate
Figure 6-4 Driver Rise, Fall Time vs Free-Air Temperature
