8.3.4.2 Interpolation Filter
The PCM512x provides 4 types of interpolation filters, selectable by writing to Page 0, Register 43, D(4:0).
Table 7. ROM Preset Programs
| PROGRAM NUMBER | D(4:0) | DESCRIPTION | MINIMUM CYCLES |
|---|---|---|---|
| 0 | 0 0000 | Reserved | |
| 1 | 0 0001 | Normal x8/x4/x2/x1 Interpolation Filter(1) | 256 |
| 2 | 0 0010 | Low Latency x8/x4/x2/x1 Interpolation Filter(1) | 256 |
| 3 | 0 0011 | High Attenuation x8/x4/x2 Interpolation Filter(1) | 512 |
| 4 | 0 0100 | Reserved | |
| 5 | 0 0101 | Preset Process Flow | |
| 6 | 0 0110 | Reserved | |
| 7 | 0 0111 | Asymmetric FIR Interpolation Filter(1) | 512 |
| : | : | Reserved | |
| 31 | 1 1111 | Reserved |
(1) At fs=44.1 kHz, de-emphasis filter is supported.
The PCM512x supports four sampling modes (single rate, dual rate, quad rate, and octal rate) which produce different oversampling rates (OSR) in the interpolation digital filter operation. These are shown in Table 8.
Table 8. Sampling Modes and Oversampling Rates
| SAMPLING MODE | SAMPLING FREQUENCY (fS) kHz | OVERSAMPLING RATE (OSR) |
|---|---|---|
| Single Rate | 8 | 8 or 16 |
| 16 | ||
| 32 | ||
| 44.1 | ||
| 48 | ||
| Dual Rate | 88.2 | 4 |
| 96 | ||
| Quad Rate | 176.4 | 2 |
| 192 | ||
| Octal Rate | 384 | 1 (Bypass) |
Table 9. Normal x8 Interpolation Filter, Single Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | dB | ||
| Filter Gain Stop Band | 0.55 × fS ….. 7.455 × fS | dB | ||
| Filter Group Delay | 20 / fs | S |
SPACE

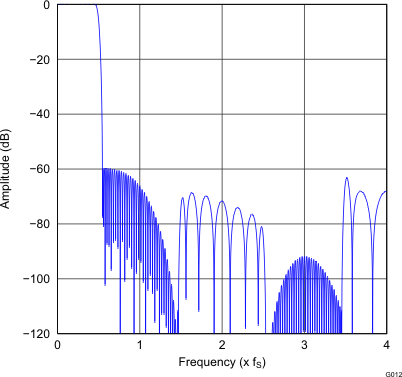

Figure 19. Normal x8 Interpolation Filter
Frequency Response

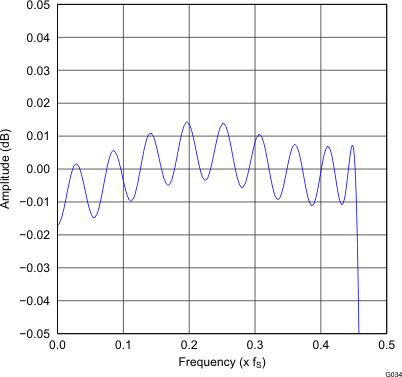

Figure 21. Normal x8 Interpolation Filter Passband Ripple

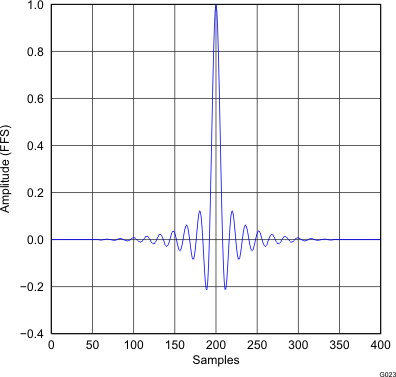

Figure 20. Normal x8 Interpolation Filter
Impulse Response
Table 10. Normal x4 Interpolation Filter, Dual Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | dB | ||
| Filter Gain Stop Band | 0.55 × fS ….. 3.455 × fS | dB | ||
| Filter Group Delay | 20 / fs | S |
SPACE

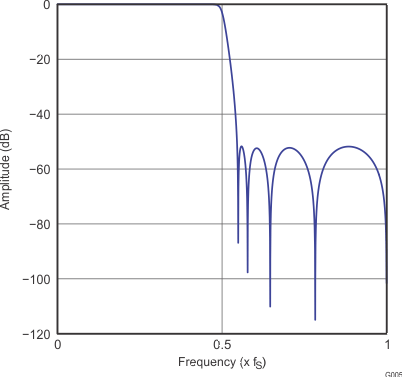

Figure 22. Normal x4 Interpolation Filter
Frequency Response

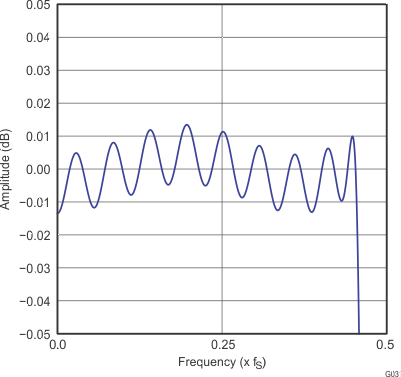

Figure 24. Normal x4 Interpolation Filter Passband Ripple

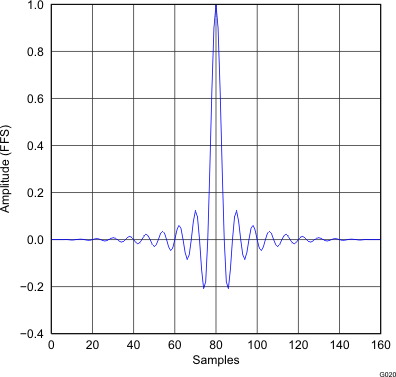

Figure 23. Normal x4 Interpolation Filter
Impulse Response
Table 11. Normal x2 Interpolation Filter, Quad Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | dB | ||
| Filter Gain Stop Band | 0.55 × fS ….. 1.455 × fS | dB | ||
| Filter Group Delay | 20 / fs | S |
SPACE
Figure 25. Normal x2 Interpolation Filter
Frequency Response

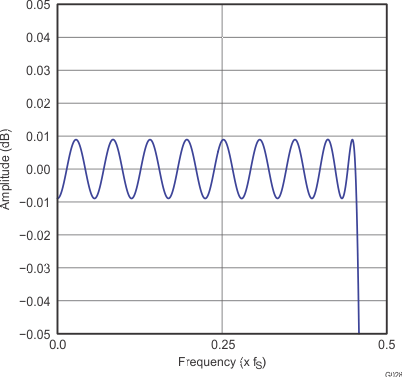

Figure 27. Normal x2 Interpolation Filter Passband Ripple

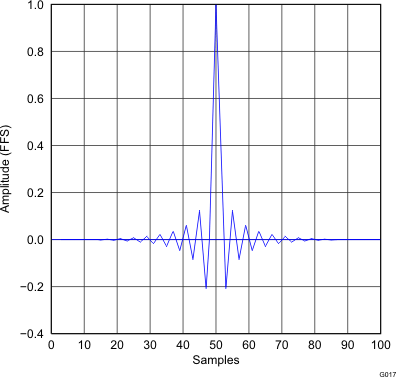

Figure 26. Normal x2 Interpolation Filter
Impulse Response
Table 12. Low Latency x8 Interpolation Filter, Single Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | dB | ||
| Filter Gain Stop Band | 0.55 × fS ….. 7.455 × fS | dB | ||
| Filter Group Delay | S |
SPACE

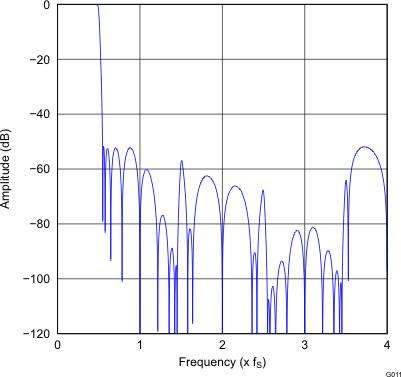

Figure 28. Low Latency x8 Interpolation Filter
Frequency Response

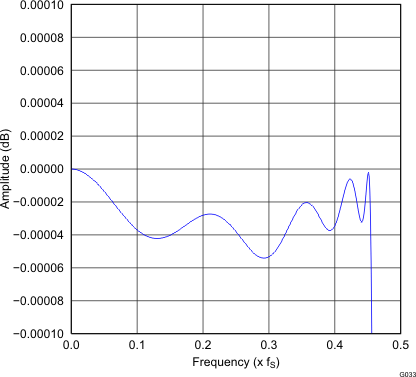

Figure 30. Low Latency x8 Interpolation Filter Passband Ripple

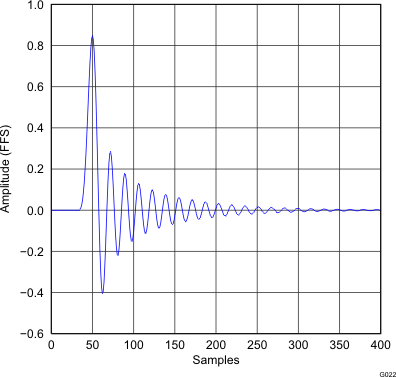

Figure 29. Low Latency x8 Interpolation Filter
Impulse Response
Table 13. Low Latency x4 Interpolation Filter, Dual Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | dB | ||
| Filter Gain Stop Band | 0.55 × fS ….. 3.455 × fS | dB | ||
| Filter Group Delay | S |
SPACE
Figure 31. Low Latency x4 Interpolation Filter
Frequency Response
Figure 33. Low Latency x4 Interpolation Filter Passband Ripple

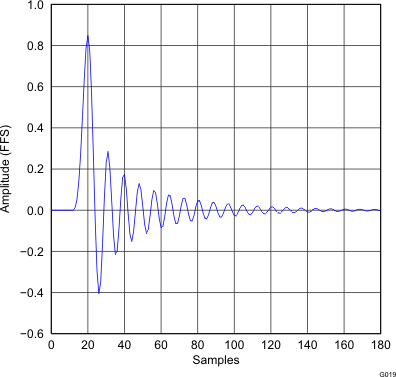

Figure 32. Low Latency x4 Interpolation Filter
Impulse Response
Table 14. Low Latency ×2 Interpolation Filter, Quad Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | dB | ||
| Filter Gain Stop Band | 0.55 × fS ….. 1.455 × fS | dB | ||
| Filter Group Delay | S |
SPACE
Figure 34. Low Latency x2 Interpolation Filter
Frequency Response
Figure 36. Low Latency x2 Interpolation Filter Passband Ripple

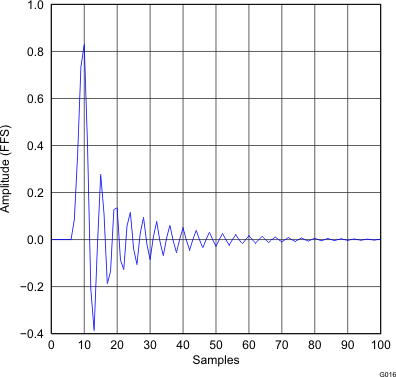

Figure 35. Low Latency x2 Interpolation Filter
Impulse Response
Table 15. Asymmetric FIR x8 Interpolation Filter, Single Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.40 × fS | ±0.05 | dB | |
| Filter Gain Stop Band | 0.72 × fS ….. 7.28 × fS | –50 | dB | |
| Filter Group Delay | 1.2 × ts | S |
SPACE

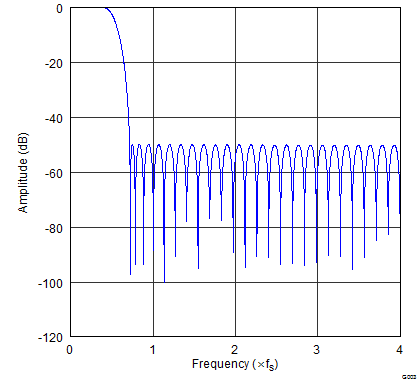

Figure 37. Asymmetric FIR x8 Interpolation Filter Frequency Response, Single Rate

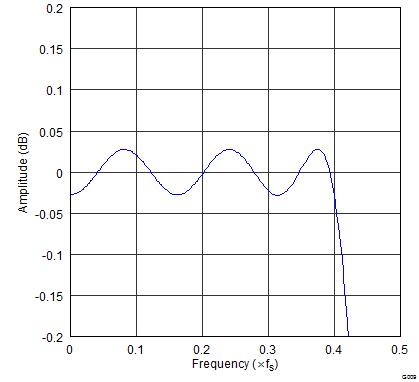

Figure 39. Asymmetric FIR x8 Interpolation Filter Passband Ripple, Single Rate

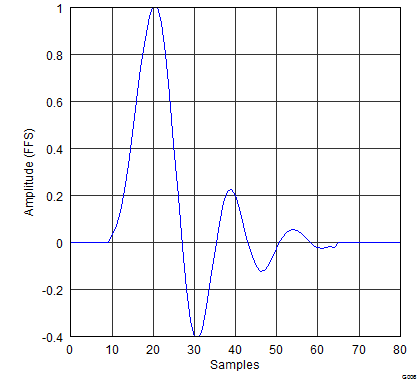

Figure 38. Asymmetric FIR x8 Interpolation Filter Impulse Response, Single Rate Table 16. Asymmetric FIR x4 Interpolation Filter, Dual Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.40 × fS | ±0.05 | dB | |
| Filter Gain Stop Band | 0.72 × fS ….. 3.28 × fS | –50 | dB | |
| Filter Group Delay | 1.2 × ts | S |
SPACE
Figure 40. Asymmetric FIR x4 Interpolation Filter Frequency Response, Dual Rate

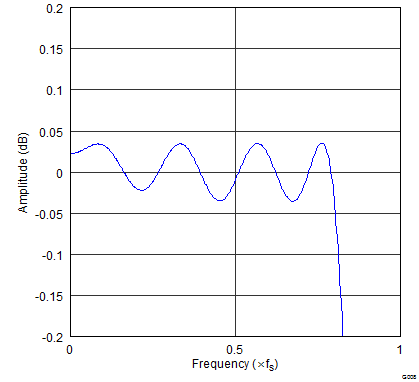

Figure 42. Asymmetric x4 Interpolation Filter Passband Ripple, Dual Rate

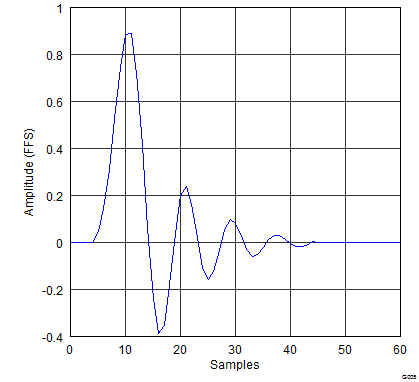

Figure 41. Asymmetric FIR x4 Interpolation Filter Impulse Response, Dual Rate Table 17. Asymmetric FIR x2 Interpolation Filter, Quad Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.40 × fS | ±0.05 | dB | |
| Filter Gain Stop Band | 0.72 × fS ….. 1.28 × fS | –50 | dB | |
| Filter Group Delay | 1.2 × ts | S |
SPACE

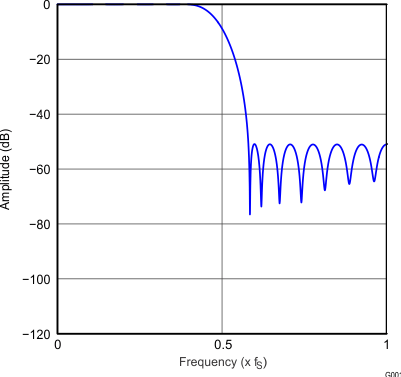

Figure 43. Asymmetric FIR x2 Interpolation Filter Frequency Response, Quad Rate

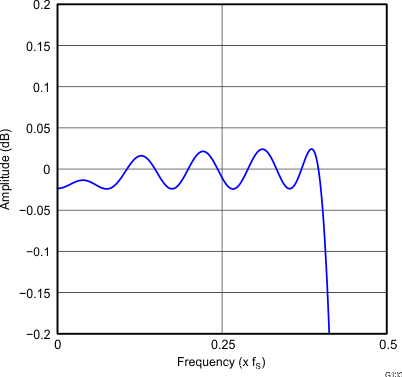

Figure 45. Asymmetric x2 Interpolation Filter Passband Ripple, Quad Rate

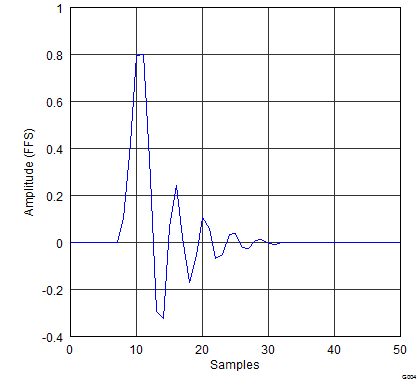

Figure 44. Asymmetric FIR x2 Interpolation Filter Impulse Response, Quad Rate Table 18. High-Attentuation x8 Interpolation Filter, Single Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | ±0.0005 | dB | |
| Filter Gain Stop Band | 0.55 × fS ….. 7.455 × fS | –100 | dB | |
| Filter Group Delay | 33.7 × tS | S |
SPACE

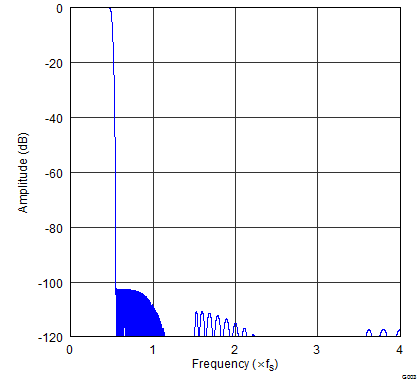

Figure 46. High-Attentuation x8 Interpolation Filter Frequency Response, Single Rate

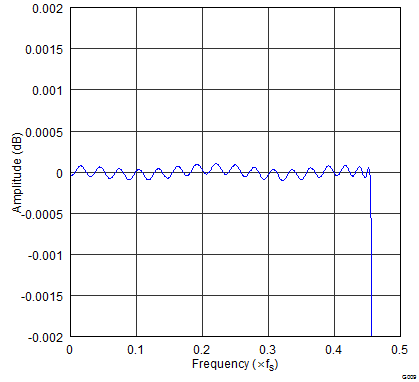

Figure 48. High-Attentuation x8 Interpolation Filter Passband Ripple, Single Rate

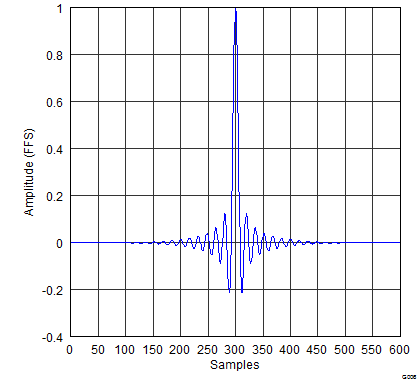

Figure 47. High-Attentuation x8 Interpolation Filter Impulse Response, Single Rate Table 19. High-Attentuation x4 Interpolation Filter, Dual Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | ±0.0005 | dB | |
| Filter Gain Stop Band | 0.55 × fS ….. 3.455 × fS | –100 | dB | |
| Filter Group Delay | 33.7 × tS | S |
SPACE
Figure 49. High-Attentuation x4 Interpolation Filter Frequency Response, Dual Rate

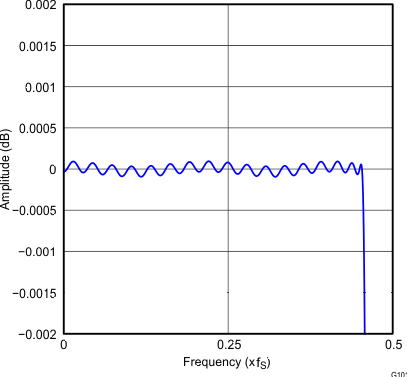

Figure 51. High-Attentuation x4 Interpolation Filter Passband Ripple, Dual Rate

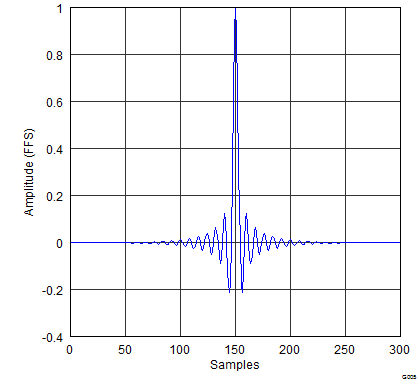

Figure 50. High-Attentuation x4 Interpolation Filter Impulse Response, Dual Rate Table 20. High-Attentuation x2 Interpolation Filter, Quad Rate
| PARAMETER | CONDITION | VALUE (TYP) | VALUE (MAX) | UNIT |
|---|---|---|---|---|
| Filter Gain Pass Band | 0 ……. 0.45 × fS | ±0.0005 | dB | |
| Filter Gain Stop Band | 0.55 × fS ….. 1.455 × fS | –100 | dB | |
| Filter Group Delay | 33.7 × tS | S |
SPACE

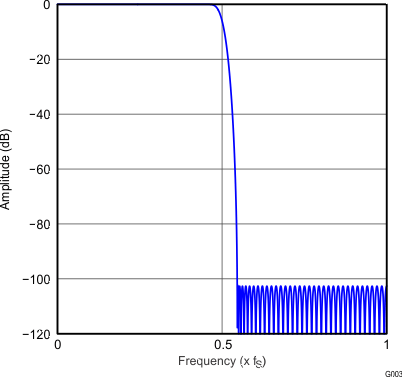

Figure 52. High-Attentuation x2 Interpolation Filter Frequency Response, Quad Rate

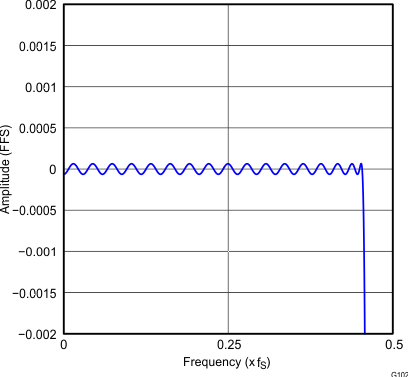

Figure 54. High-Attentuation x2 Interpolation Filter Passband Ripple, Quad Rate

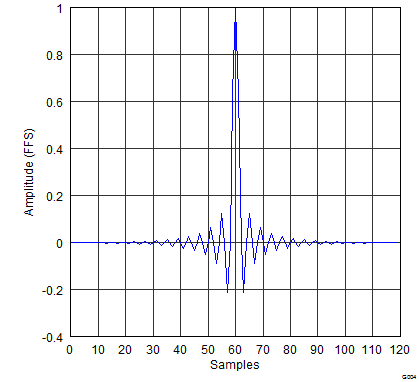

Figure 53. High-Attentuation x2 Interpolation Filter Impulse Response, Quad Rate
