11.4 DNP (S-PDSO-N6) Mechanical Drawings

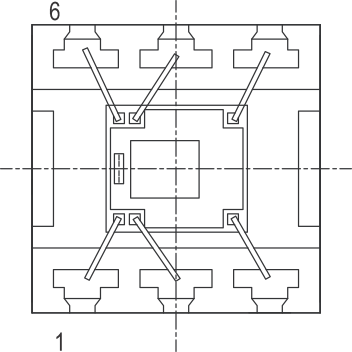

Figure 11-3 Package Orientation Visual Reference of Pin 1 (Top View)

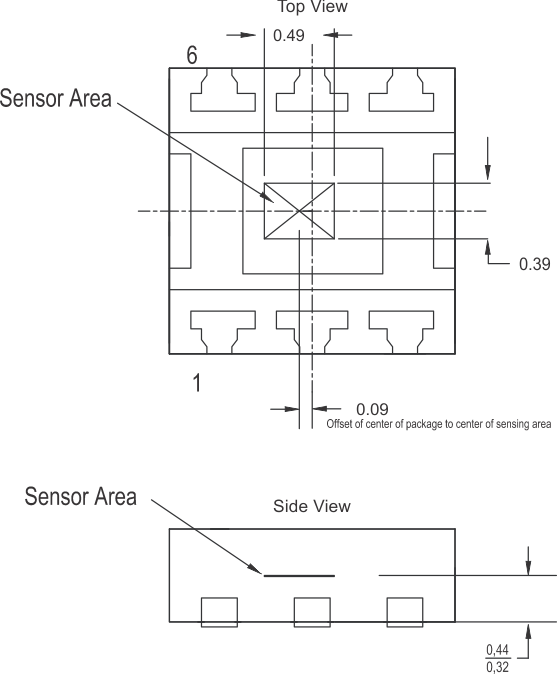

Figure 11-4 Mechanical Outline Showing Sensing Area Location (Top and Side Views)
