ZHCSGN5B March 2017 – July 2018 LP8863-Q1
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 說明
- 4 修訂歷史記錄
- 5 Device Comparison Table
- 6 Pin Configuration and Functions
-
7 Specifications
- 7.1 Absolute Maximum Ratings
- 7.2 ESD Ratings
- 7.3 Recommended Operating Conditions
- 7.4 Thermal Information
- 7.5 Electrical Characteristics
- 7.6 Protection Electrical Characteristics
- 7.7 LED Current Sink and LED PWM Electrical Characteristics
- 7.8 Power-Line FET and RISENSE Electrical Characteristics
- 7.9 Input PWM Electrical Characteristics
- 7.10 Boost Converter Electrical Characteristics
- 7.11 Oscillator
- 7.12 Charge Pump
- 7.13 Logic Interface Characteristics
- 7.14 Timing Requirements for SPI Interface
- 7.15 Timing Requirements for I2C Interface
- 7.16 Typical Characteristics
-
8 Detailed Description
- 8.1 Overview
- 8.2 Functional Block Diagram
- 8.3 Feature Description
- 8.4 Device Functional Modes
- 8.5 Programming
- 8.6
Register Maps
- 8.6.1
FullMap Registers
- 8.6.1.1 BL_MODE Register (Offset = 20h) [reset = 300h]
- 8.6.1.2 DISP_BRT Register (Offset = 28h) [reset = 0h]
- 8.6.1.3 GROUPING1 Register (Offset = 30h) [reset = 0h]
- 8.6.1.4 GROUPING2 Register (Offset = 32h) [reset = 0h]
- 8.6.1.5 USER_CONFIG1 Register (Offset = 40h) [reset = 8B0h]
- 8.6.1.6 USER_CONFIG2 Register (Offset = 42h) [reset = 0h]
- 8.6.1.7 INTERRUPT_ENABLE_3 Register (Offset = 4Eh) [reset = 200Ah]
- 8.6.1.8 INTERRUPT_ENABLE_1 Register (Offset = 50h) [reset = A02Ah]
- 8.6.1.9 INTERRUPT_ENABLE_2 Register (Offset = 52h) [reset = 80h]
- 8.6.1.10 INTERRUPT_STATUS_1 Register (Offset = 54h) [reset = 0h]
- 8.6.1.11 INTERRUPT_STATUS_2 Register (Offset = 56h) [reset = 0h]
- 8.6.1.12 INTERRUPT_STATUS_3 Register (Offset = 58h) [reset = 0h]
- 8.6.1.13 JUNCTION_TEMPERATURE Register (Offset = E8h) [reset = 100h]
- 8.6.1.14 TEMPERATURE_LIMIT_HIGH Register (Offset = ECh) [reset = 7Dh]
- 8.6.1.15 TEMPERATURE_LIMIT_LOW Register (Offset = EEh) [reset = 69h]
- 8.6.1.16 CLUSTER1_BRT Register (Offset = 13Ch) [reset = FFFFh]
- 8.6.1.17 CLUSTER2_BRT Register (Offset = 148h) [reset = FFFFh]
- 8.6.1.18 CLUSTER3_BRT Register (Offset = 154h) [reset = FFFFh]
- 8.6.1.19 CLUSTER4_BRT Register (Offset = 160h) [reset = FFFFh]
- 8.6.1.20 CLUSTER5_BRT Register (Offset = 16Ch) [reset = FFFFh]
- 8.6.1.21 BRT_DB_CONTROL Register (Offset = 178h) [reset = 0h]
- 8.6.1.22 LED0_CURRENT Register (Offset = 1C2h) [reset = FFFh]
- 8.6.1.23 LED1_CURRENT Register (Offset = 1C4h) [reset = FFFh]
- 8.6.1.24 LED2_CURRENT Register (Offset = 1C6h) [reset = FFFh]
- 8.6.1.25 LED3_CURRENT Register (Offset = 1C8h) [reset = FFFh]
- 8.6.1.26 LED4_CURRENT Register (Offset = 1CAh) [reset = FFFh]
- 8.6.1.27 LED5_CURRENT Register (Offset = 1CCh) [reset = FFFh]
- 8.6.1.28 BOOST_CONTROL Register (Offset = 288h) [reset = 1C0h]
- 8.6.1.29 SHORT_THRESH Register (Offset = 28Ah) [reset = 2882h]
- 8.6.1.30 FSM_DIAGNOSTICS Register (Offset = 2A4h) [reset = 0h]
- 8.6.1.31 PWM_INPUT_DIAGNOSTICS Register (Offset = 2A6h) [reset = 0h]
- 8.6.1.32 PWM_OUTPUT_DIAGNOSTICS Register (Offset = 2A8h) [reset = 0h]
- 8.6.1.33 LED_CURR_DIAGNOSTICS Register (Offset = 2AAh) [reset = 0h]
- 8.6.1.34 ADAPT_BOOST_DIAGNOSTICS Register (Offset = 2ACh) [reset = 0h]
- 8.6.1.35 AUTO_DETECT_DIAGNOSTICS Register (Offset = 2AEh) [reset = 0h]
- 8.6.1
FullMap Registers
-
9 Application and Implementation
- 9.1 Application Information
- 9.2
Typical Applications
- 9.2.1
Full Feature Application for Display Backlight
- 9.2.1.1 Design Requirements
- 9.2.1.2
Detailed Design Procedure
- 9.2.1.2.1 Inductor Selection
- 9.2.1.2.2 Output Capacitor Selection
- 9.2.1.2.3 Input Capacitor Selection
- 9.2.1.2.4 Charge Pump Output Capacitor
- 9.2.1.2.5 Charge Pump Flying Capacitor
- 9.2.1.2.6 Output Diode
- 9.2.1.2.7 Switching FET
- 9.2.1.2.8 Boost Sense Resistor
- 9.2.1.2.9 Power-Line FET
- 9.2.1.2.10 Input Current Sense Resistor
- 9.2.1.2.11 Feedback Resistor Divider
- 9.2.1.2.12 Critical Components for Design
- 9.2.1.3 Application Curves
- 9.2.2 Application With Basic/Minimal Operation
- 9.2.3
SEPIC Mode Application
- 9.2.3.1 Design Requirements
- 9.2.3.2
Detailed Design Procedure
- 9.2.3.2.1 Inductor Selection
- 9.2.3.2.2 Coupling Capacitor Selection
- 9.2.3.2.3 Output Capacitor Selection
- 9.2.3.2.4 Input Capacitor Selection
- 9.2.3.2.5 Charge Pump Output Capacitor
- 9.2.3.2.6 Charge Pump Flying Capacitor
- 9.2.3.2.7 Switching FET
- 9.2.3.2.8 Output Diode
- 9.2.3.2.9 Switching Sense Resistor
- 9.2.3.2.10 Power-Line FET
- 9.2.3.2.11 Input Current Sense Resistor
- 9.2.3.2.12 Feedback Resistor Divider
- 9.2.3.2.13 Critical Components for Design
- 9.2.3.3 Application Curves
- 9.2.1
Full Feature Application for Display Backlight
- 10Power Supply Recommendations
- 11Layout
- 12器件和文檔支持
- 13機械、封裝和可訂購信息

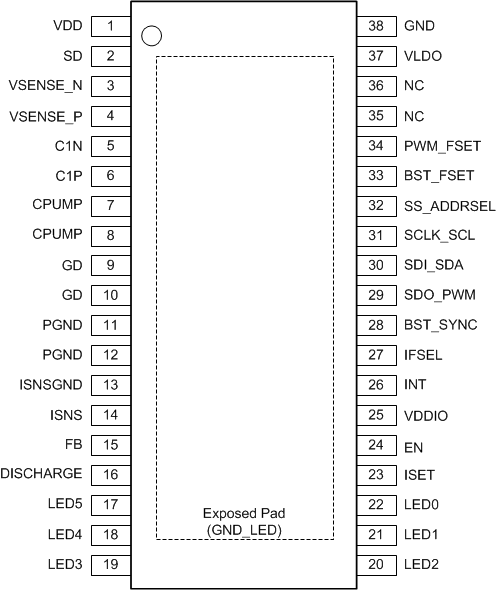

6 Pin Configuration and Functions
DCP Package
38-Pin HTSSOP
Top View
Pin Functions
| PIN | TYPE | DESCRIPTION | |
| NO. | NAME | ||
| 1 | VDD | Power | Power input for LDO, charge pump, and analog blocks - a 4.7–µF decoupling capacitor is recommended. |
| 2 | SD | Analog | Power line FET control. If unused, leave this pin floating. |
| 3 | VSENSE_N | Analog | Pin for input current sense. If input current sense is not used tie to VSENSE_P. |
| 4 | VSENSE_P | Analog | Pin for OVP/UVLO protection and input current sense. |
| 5 | C1N | Analog | Negative pin for charge pump flying capacitor. If feature not used, leave this pin floating. |
| 6 | C1P | Analog | Positive pin for charge pump flying capacitor. If feature not used, leave this pin floating. |
| 7 | CPUMP | Power | Charge pump output pin. If charge pump is not used connect to VDD. TI recommends a 10–µF decoupling capacitor. |
| 8 | CPUMP | Power | Charge pump output pin. If charge pump is not used connect to VDD. |
| 9 | GD | Analog | Gate driver output for boost FET |
| 10 | GD | Analog | Gate driver output for boost FET |
| 11 | PGND | Ground | Power ground |
| 12 | PGND | Ground | Power ground |
| 13 | ISNSGND | Ground | Current sense resistor GND of boost controller |
| 14 | ISNS | Analog | Boost current sense pin |
| 15 | FB | Analog | Boost feedback input |
| 16 | DISCHARGE | Analog | Boost output voltage discharge pin. Leave floating if unused. |
| 17 | LED5 | Analog | LED current sink output. If unused tie to ground. |
| 18 | LED4 | Analog | LED current sink output. If unused tie to ground. |
| 19 | LED3 | Analog | LED current sink output. If unused tie to ground. |
| 20 | LED2 | Analog | LED current sink output. If unused tie to ground. |
| 21 | LED1 | Analog | LED current sink output. If unused tie to ground. |
| 22 | LED0 | Analog | LED current sink output. If unused tie to ground. |
| 23 | ISET | Analog | LED current setting input |
| 24 | EN | Input | Enable input |
| 25 | VDDIO | Power | Supply input for digital IO pins - a 4.7–µF decoupling capacitor is recommended. |
| 26 | INT | Output | LP8863-Q1 device fault interrupt output, open drain. Requires an external pullup resistor to VDDIO - a 10-kΩ pullup resistor is recommended. |
| 27 | IFSEL | Input | Serial control interface selection: low = SPI, high = I2C |
| 28 | BST_SYNC | Input | Input for synchronizing boost. When synchronization is not used, connect this pin to ground to disable spread spectrum or to VDDIO to enable spread spectrum. |
| 29 | SDO_PWM | Input/Output | IFSEL=GND, slave data output for SPI. IFSEL=VDDIO, PWM input for brightness control. Tie to GND if unused. |
| 30 | SDI_SDA | Input | IFSEL=GND, slave data input for SPI; IFSEL=VDDIO, serial data for I2C |
| 31 | SCLK_SCL | Input | IFSEL=GND, serial clock for SPI; IFSEL=VDDIO, serial clock for I2C |
| 32 | SS_ADDRSEL | Input | IFSEL=GND, slave select for SPI; IFSEL=VDDIO, I2C address selection |
| 33 | BST_FSET | Analog | Resistor for setting boost FSW frequency. Do not leave floating. |
| 34 | PWM_FSET | Analog | Resistor for setting LED PWM frequency. Do not leave floating. |
| 35 | NC | N/A | No connect — leave floating. |
| 36 | NC | N/A | No connect — leave floating. |
| 37 | VLDO | Power | Internal 1.8-V LDO output. Connect bypass capacitor to this pin - a 10–µF decoupling capacitor is recommended. |
| 38 | GND | Ground | Ground for LDO — charge pump and analog blocks |
| DAP | GND_LED | Ground | LED ground connection |
