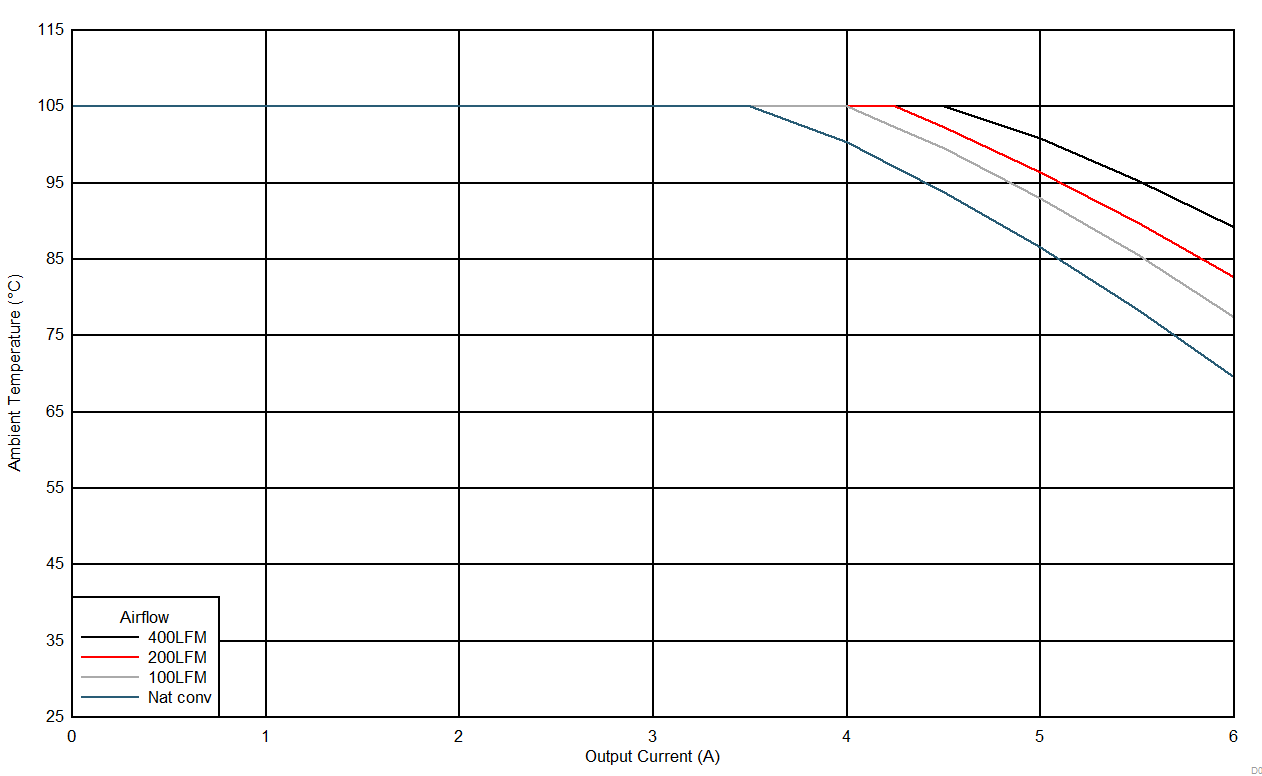

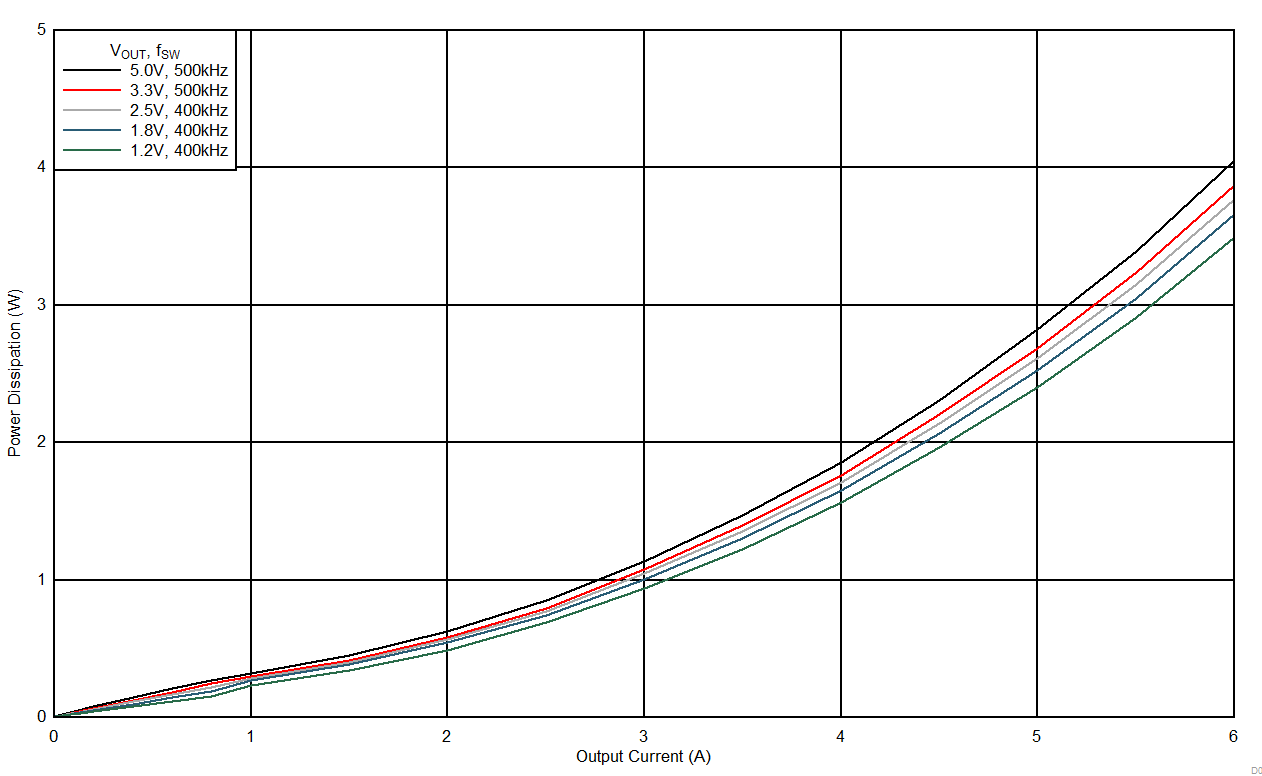

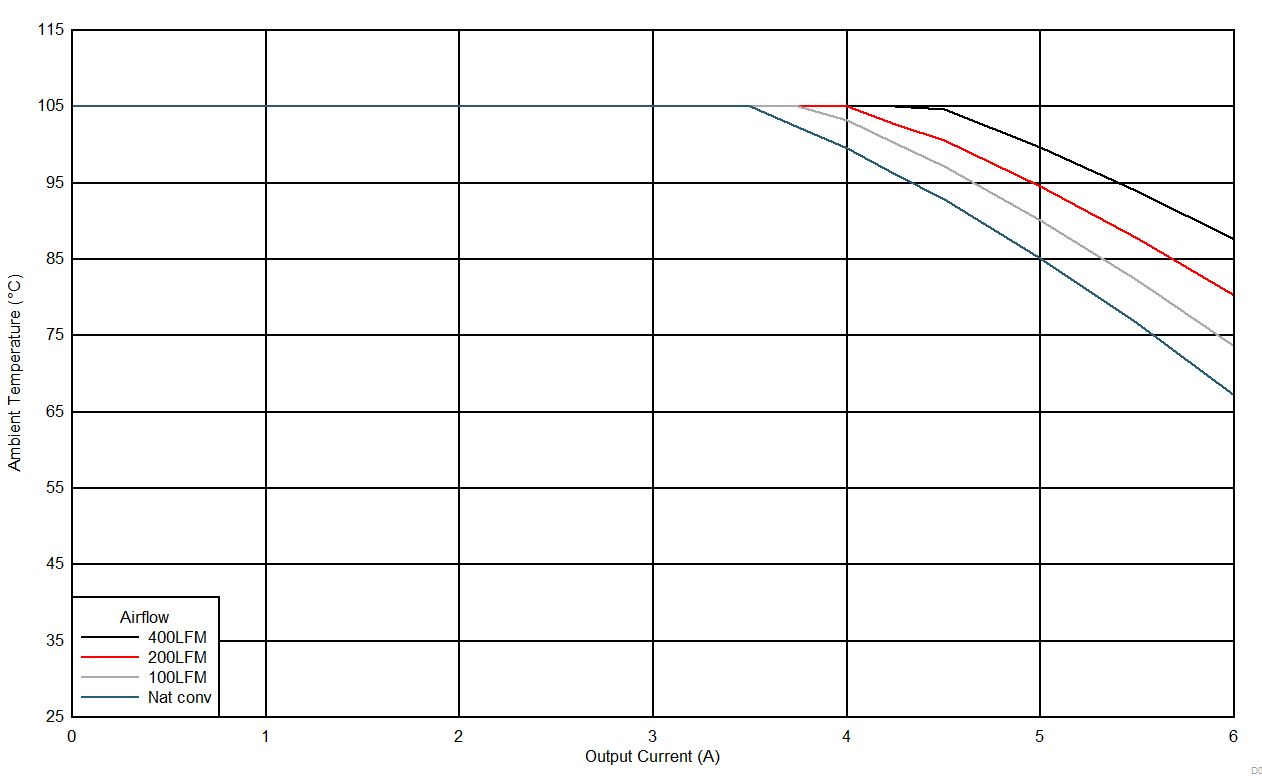

6.7 Typical Characteristics (VIN = 12 V)

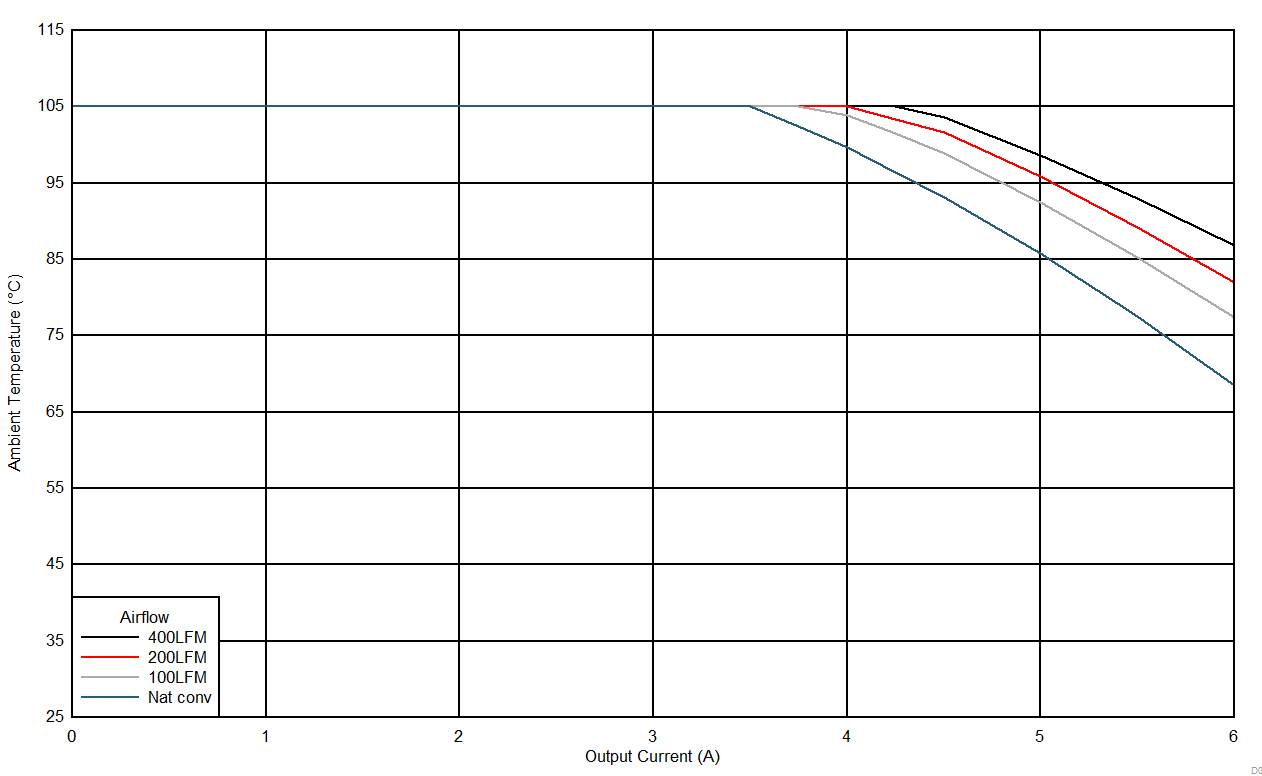

The typical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the device.

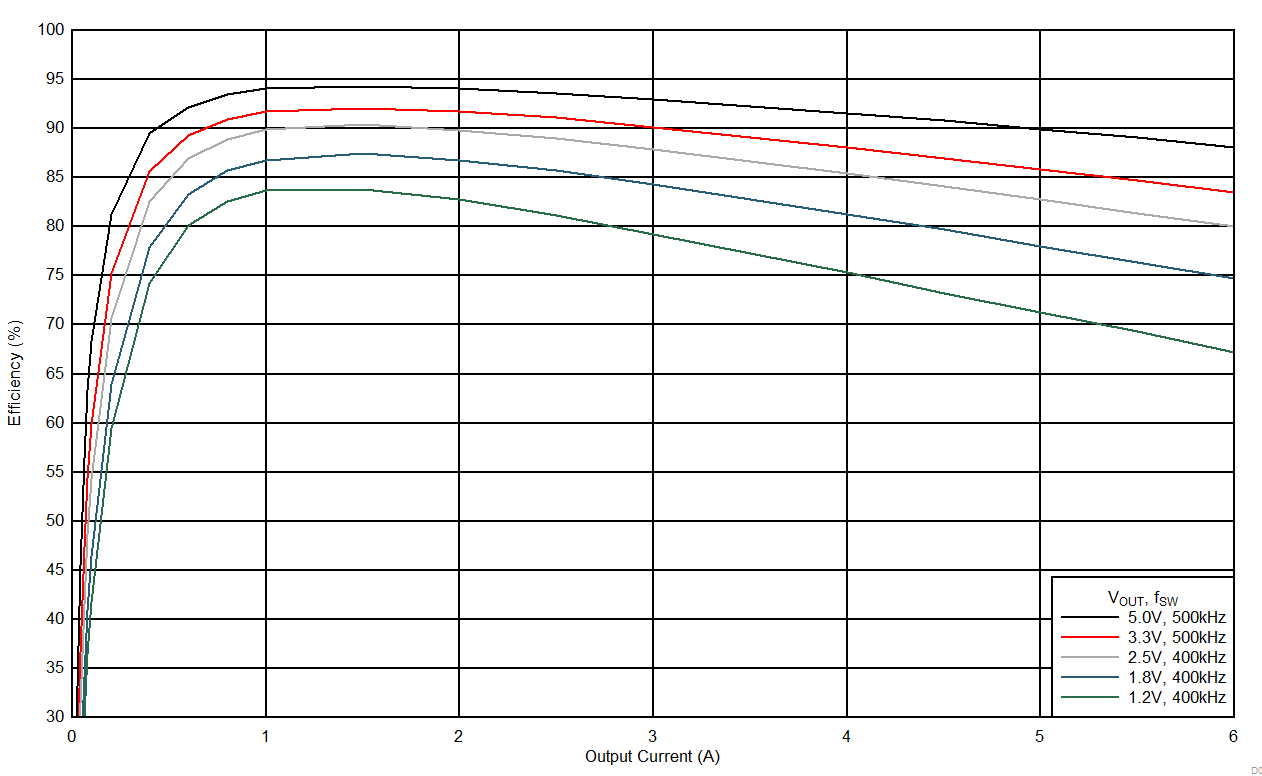

| FPWM Mode | Linear Scale | |

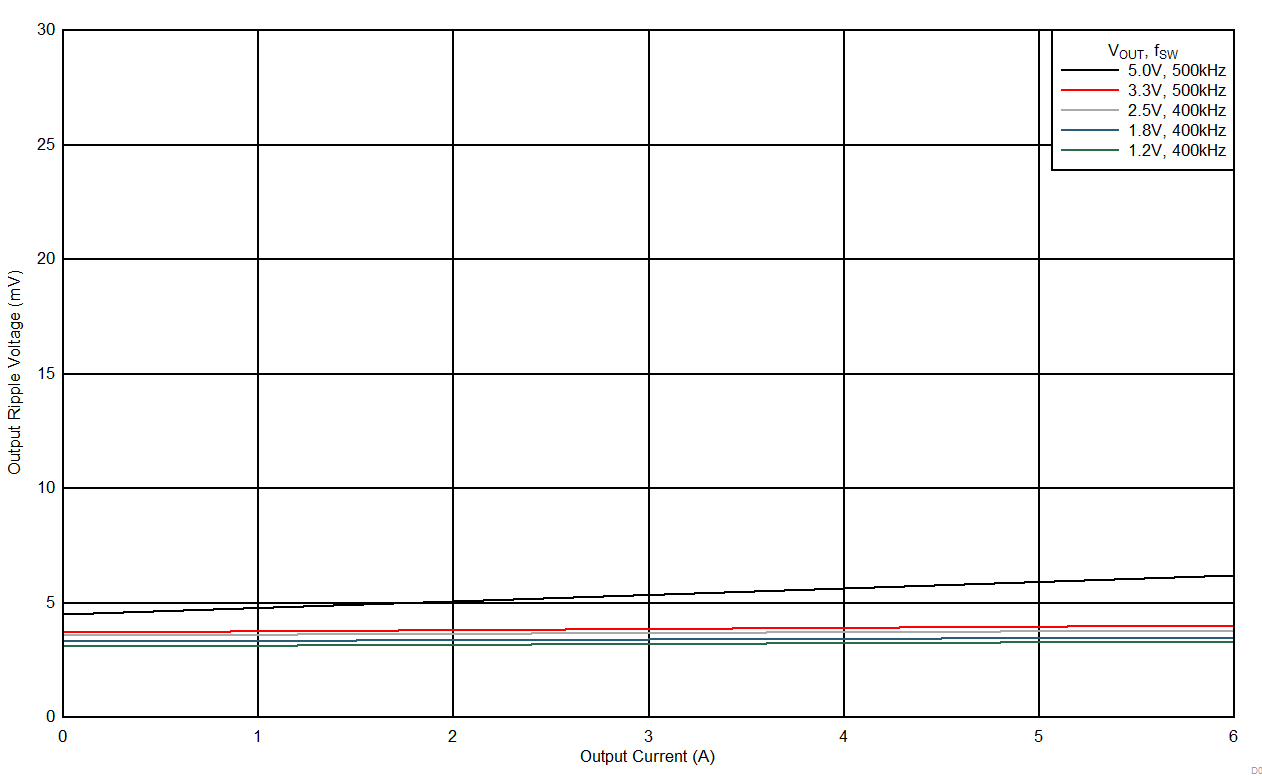

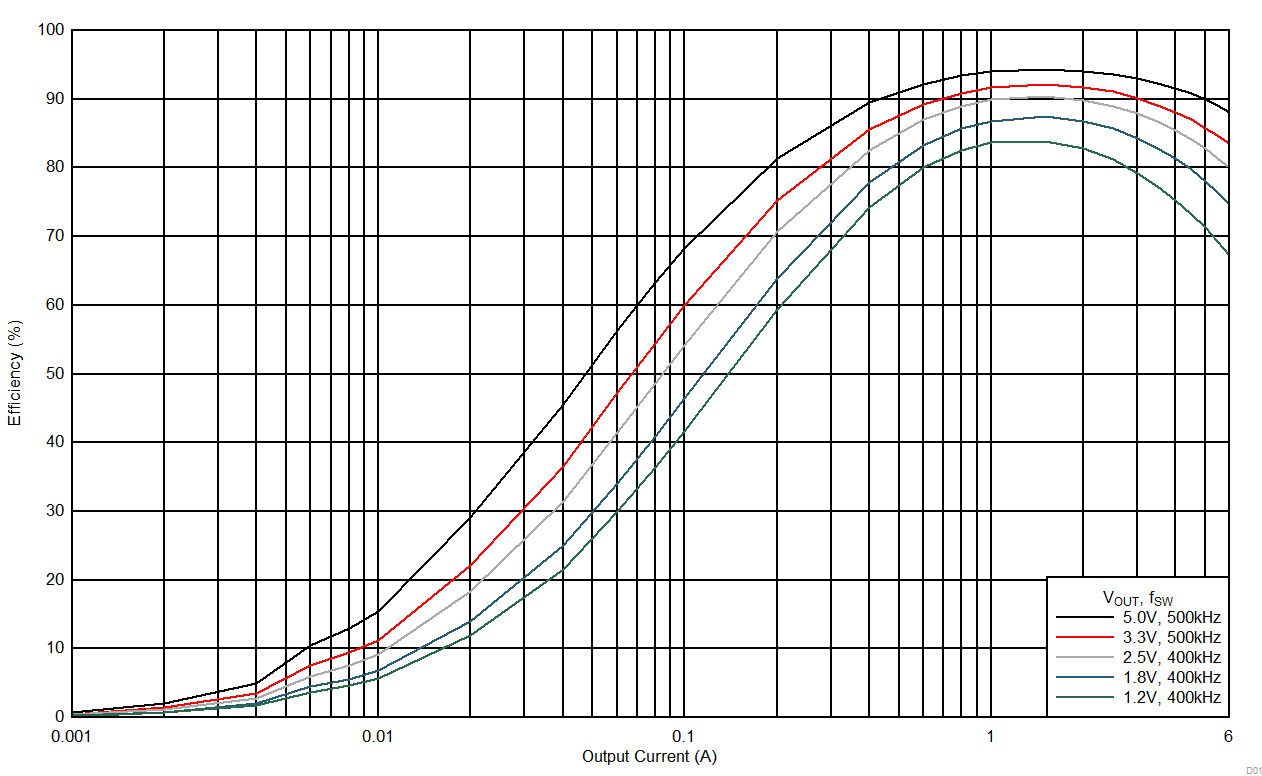

| FPWM Mode | Log Scale | |
| FPWM Mode | COUT = 4 × 47 µF ceramic | |
| VOUT = 3.3 V | fSW = 500 kHz | |
| PCB = 75 mm × 75 mm, 4-layer, 2 oz. copper | ||

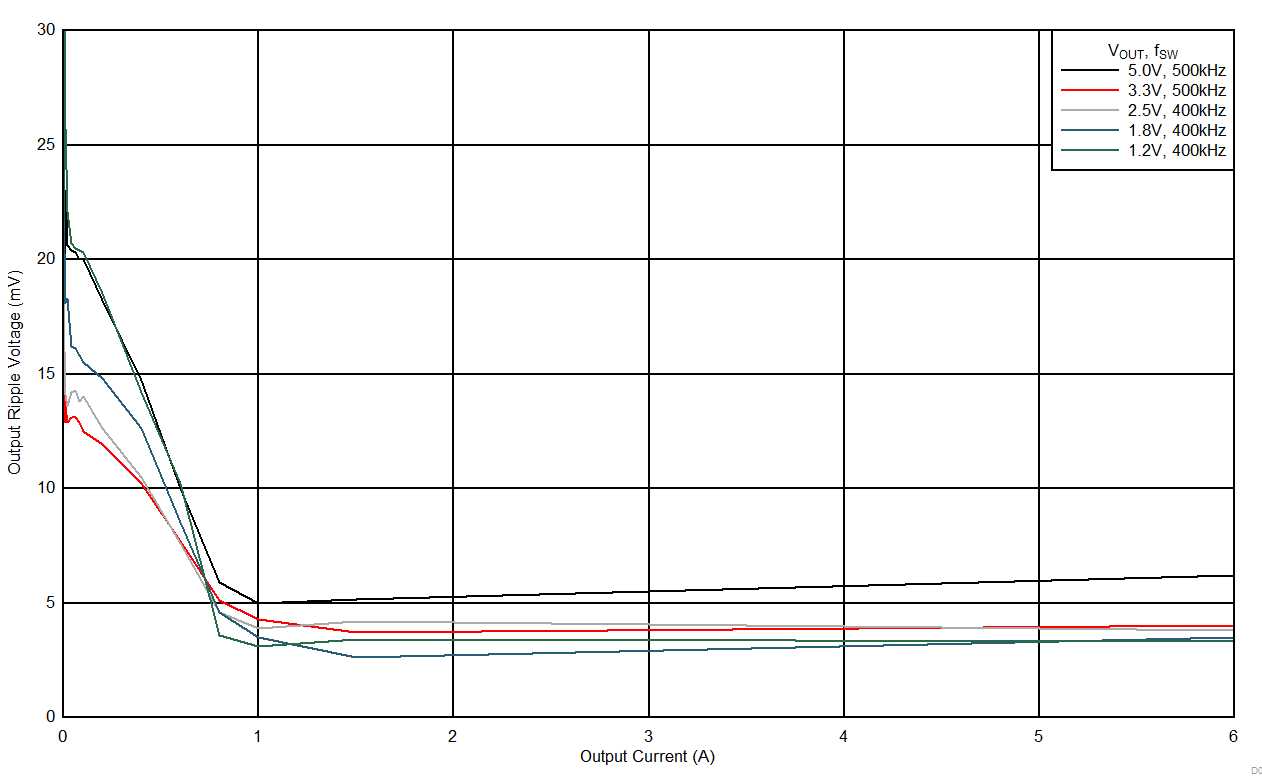

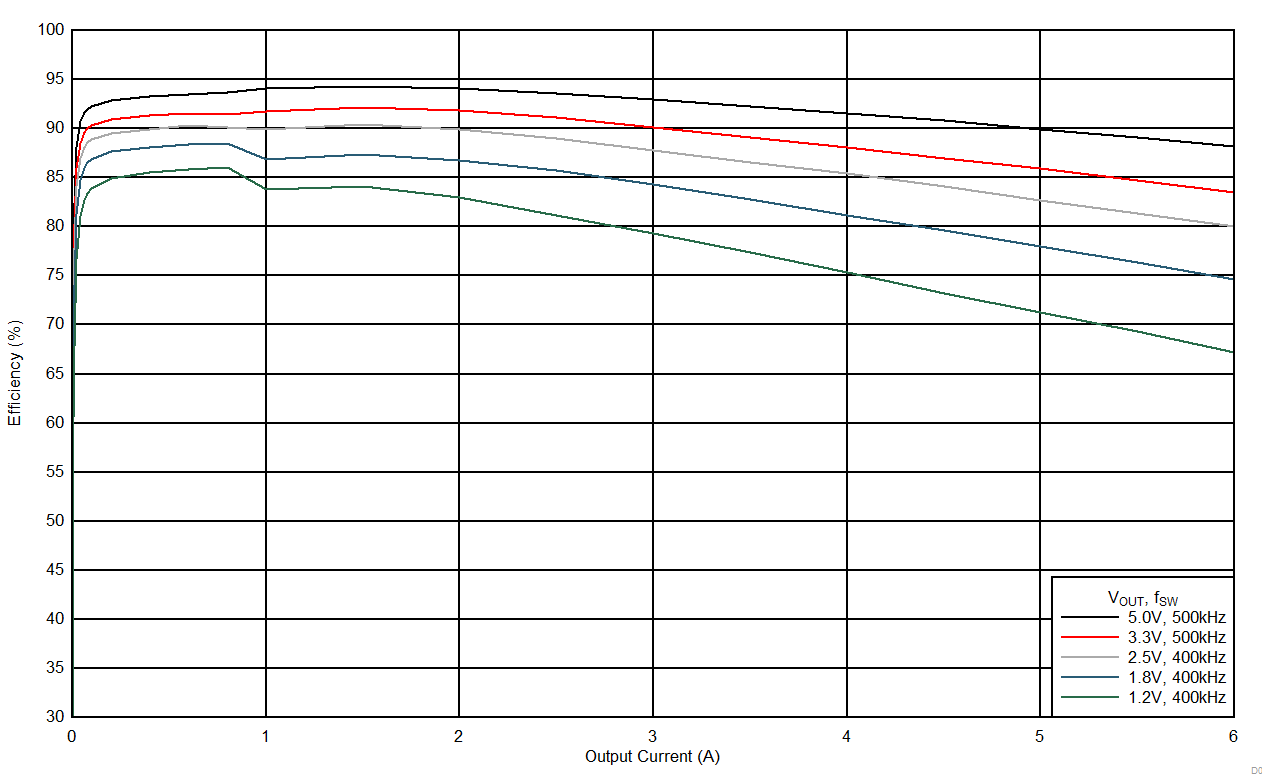

| Auto Mode | Linear Scale | |

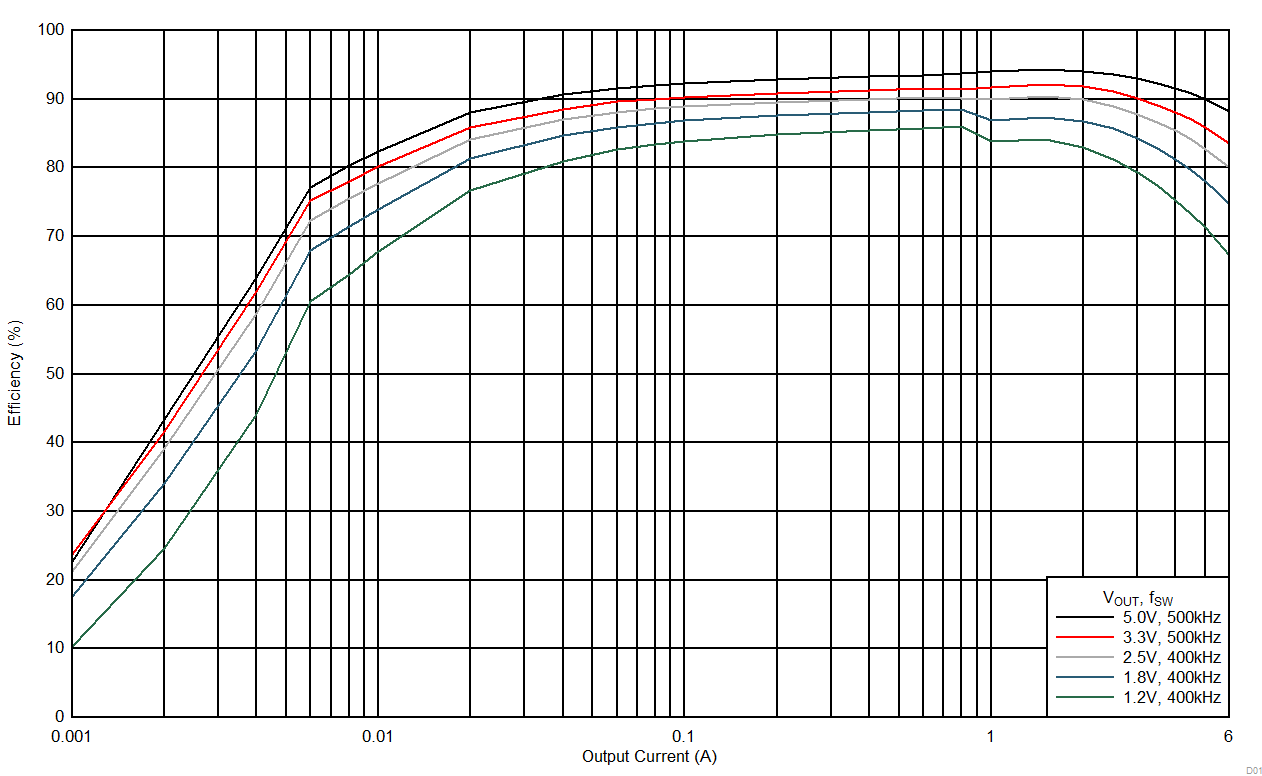

| Auto Mode | Log Scale | |
| Auto Mode | COUT = 4 × 47 µF ceramic | |
| VOUT = 1.8 V | fSW = 400 kHz | |
| PCB = 75 mm × 75 mm, 4-layer, 2 oz. copper | ||
| VOUT = 5 V | fSW = 500 kHz | |
| PCB = 75 mm × 75 mm, 4-layer, 2 oz. copper | ||
