6.8 Typical Characteristics (PVIN = 3.3 V, VIN = 5 V)
The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 12, Figure 13, and Figure 14. The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100-mm × 100-mm double-sided PCB with 2 oz. copper. Applies to Figure 16.

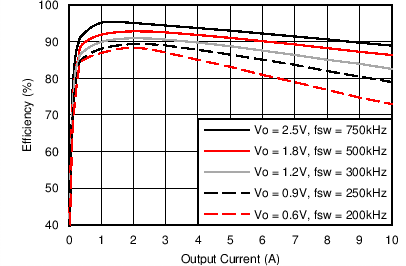

Figure 12. Efficiency versus Output Current

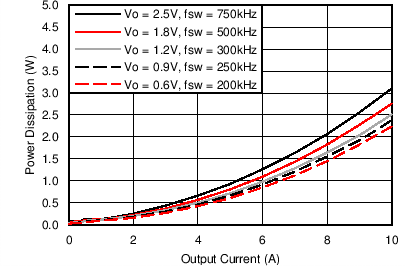

Figure 14. Power Dissipation versus Output Current

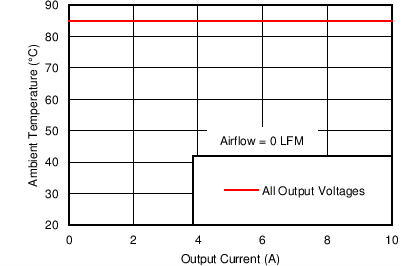

Figure 16. Safe Operating Area

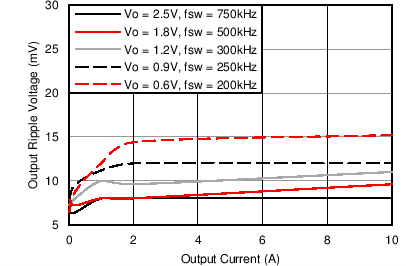

Figure 13. Voltage Ripple versus Output Current

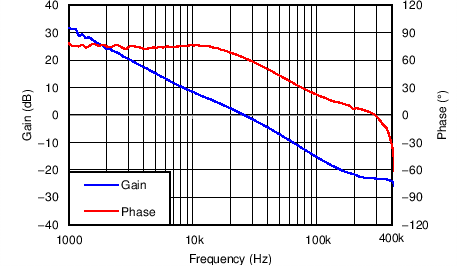

Figure 15. VOUT= 1.8 V, IOUT= 10 A, COUT1= 200 Μf Ceramic, FSW= 500 Khz
