6.7 Typical Characteristics (PVIN = VIN = 5 V)
The electrical characteristic data has been developed from actual products tested at 25°C. This data is considered typical for the converter. Applies to Figure 7, Figure 8, and Figure 9. The temperature derating curves represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to devices soldered directly to a 100 mm × 100 mm double-sided PCB with 2 oz. copper. Applies to Figure 11.

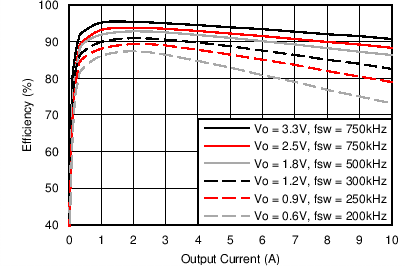

Figure 7. Efficiency versus Output Current

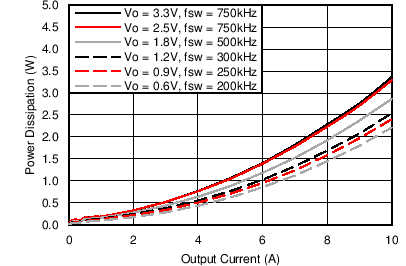

Figure 9. Power Dissipation versus Output Current

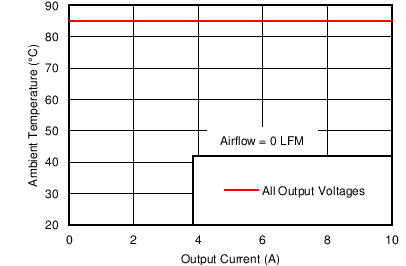

Figure 11. Safe Operating Area

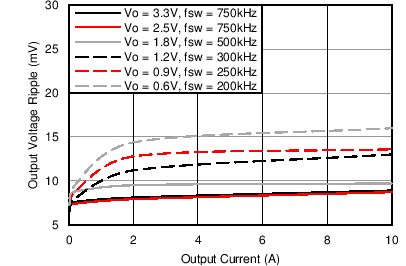

Figure 8. Voltage Ripple versus Output Current

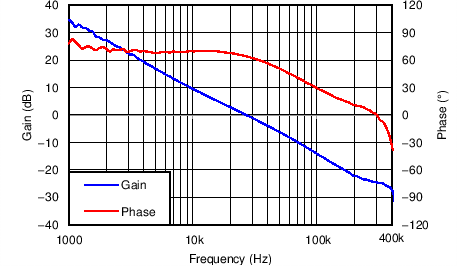

Figure 10. VOUT= 1.8 V, IOUT= 10 A, COUT1= 200 Μf Ceramic, FSW= 500 Khz
