8.2.3.3 VOUT = 2.5 V
Figure 44. Typical Applications Circuit

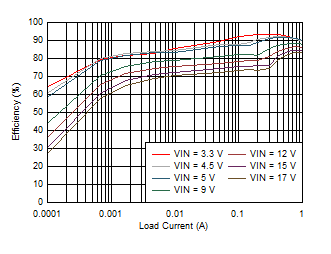

Figure 46. Efficiency VOUT = 2.5 V

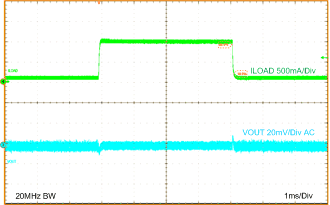

Figure 48. Load Transient VOUT = 2.5 V
Figure 50. 20MHz Oscilloscope Bandwidth

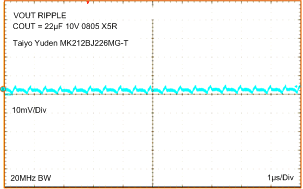

Output Voltage Ripple VOUT = 2.5 V

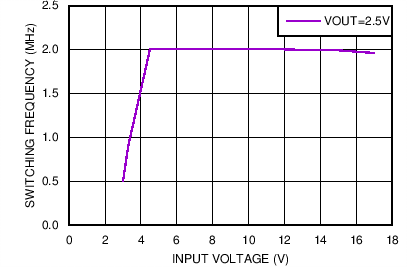

Figure 52. Typical Switching Frequency at 1000 mA Load VOUT = 2.5 V

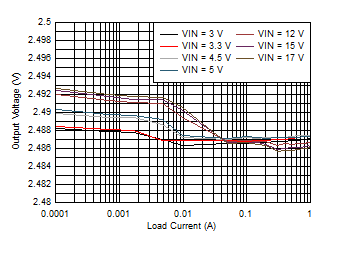

Figure 54. Line and Load Regulation VOUT = 2.5 V
Figure 45. External Component Values
(VOUT = 2.5 V)

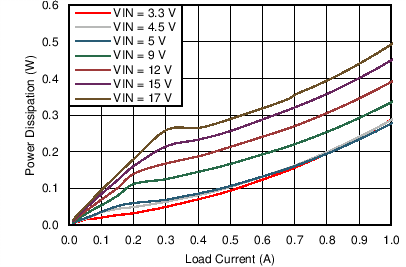

Figure 47. Power Dissipation VOUT = 2.5 V

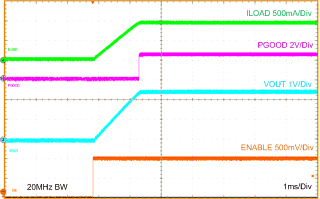

Figure 49. Startup VOUT = 2.5 V

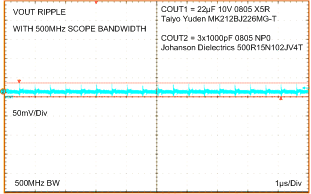

Figure 51. 500 MHz Oscilloscope Bandwidth, 3x1000 pF additional output capacitance
Output Voltage Ripple and HF Noise VOUT = 2.5 V

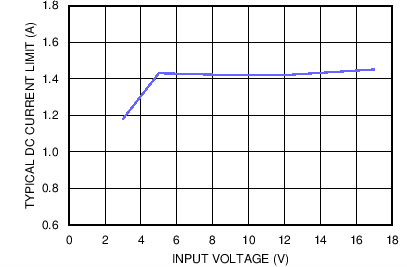

Figure 53. Typical Current Limit VOUT = 2.5 V, TA = 85 °C

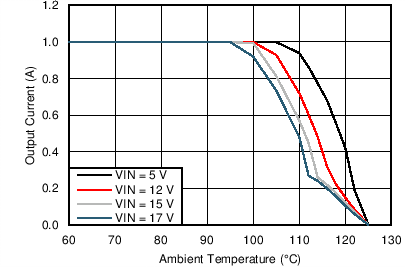

Figure 55. Thermal Derating for θJA = 47 ºC/W, VOUT = 2.5 V
