9.2.3 Application Curves
Unless otherwise specified the following conditions apply: VIN = 12 V, VOUT = 5 V, fSW =2.1 MHz, L = 4.7 μH, COUT = 10 μF, TA = 25°C.

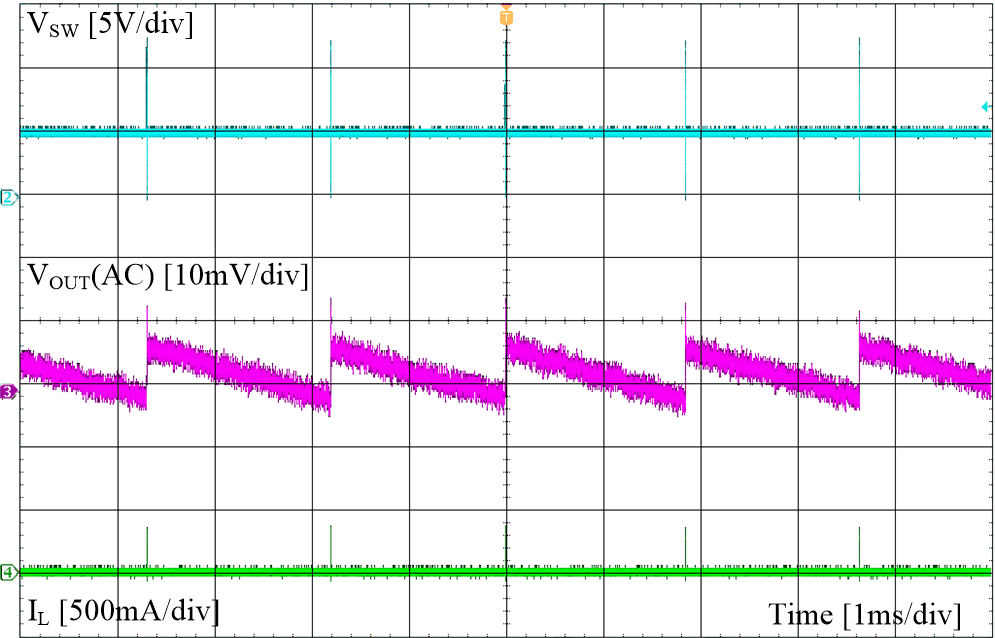

Figure 9-3 Ripple at No Load

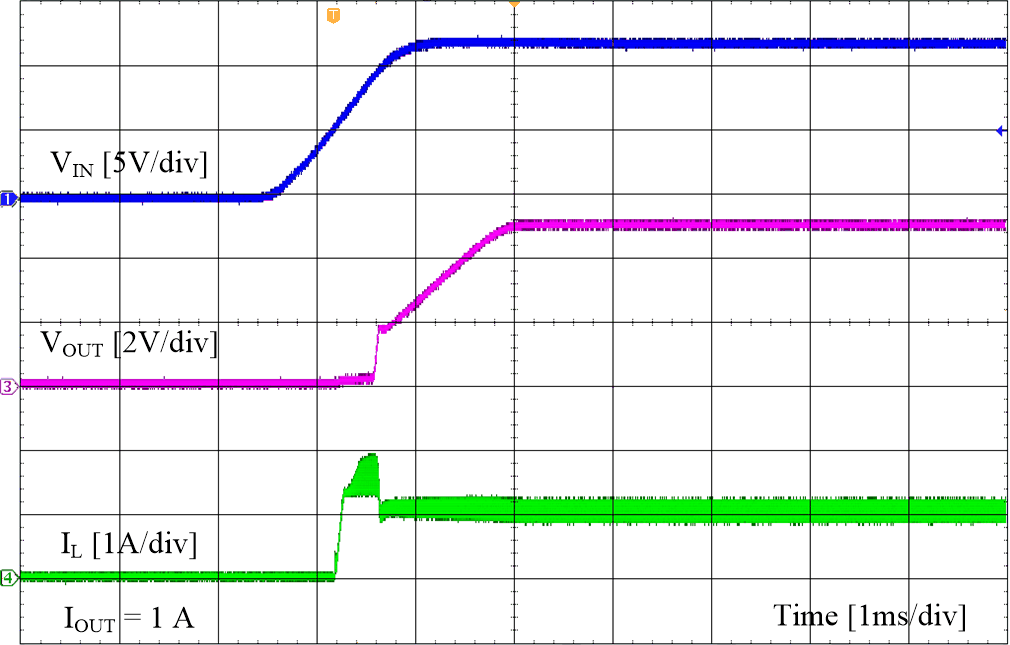

Figure 9-5 Start
Up by VIN

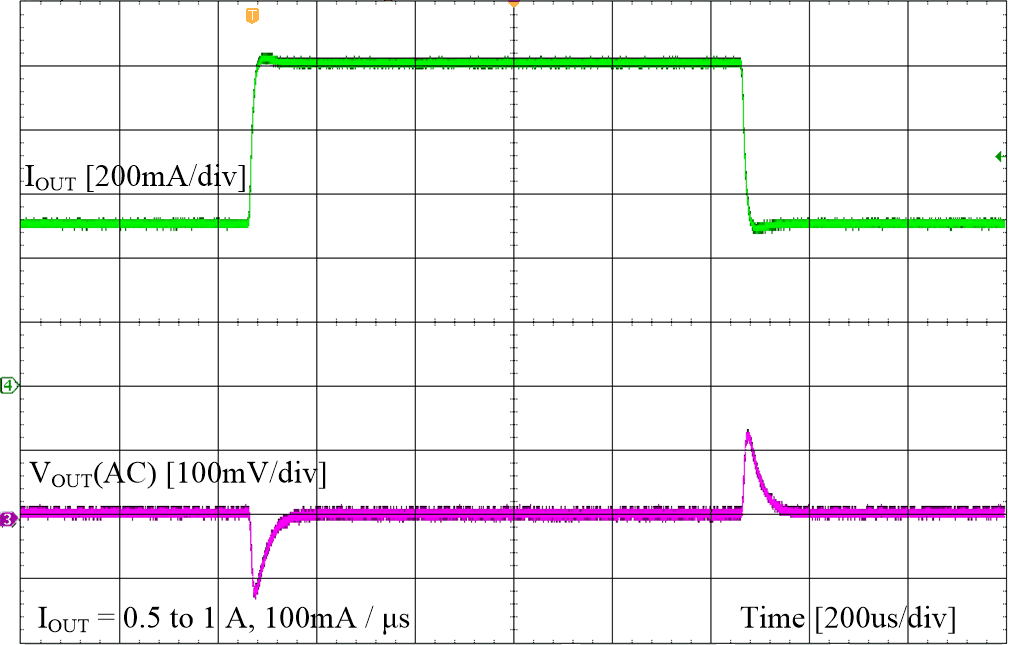

Figure 9-7 Load
Transient

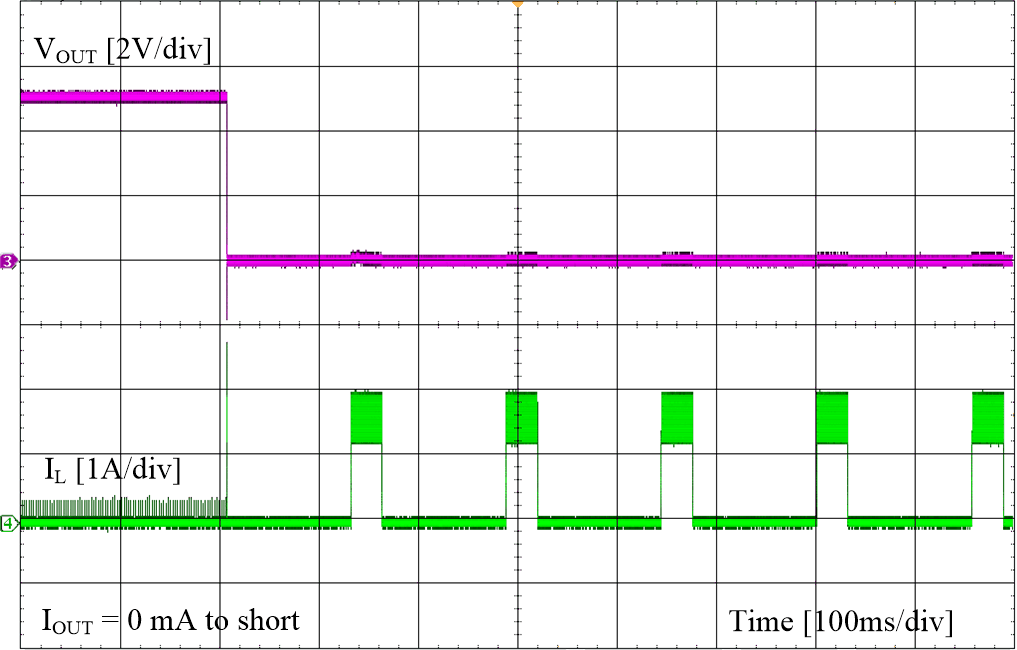

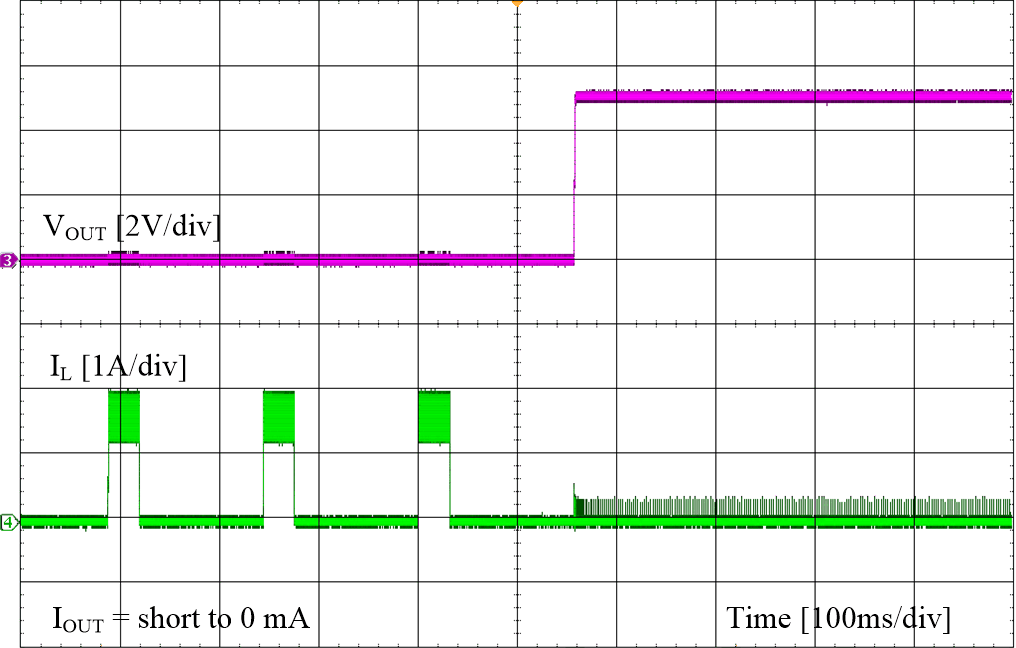

Figure 9-9 Short
Recovery

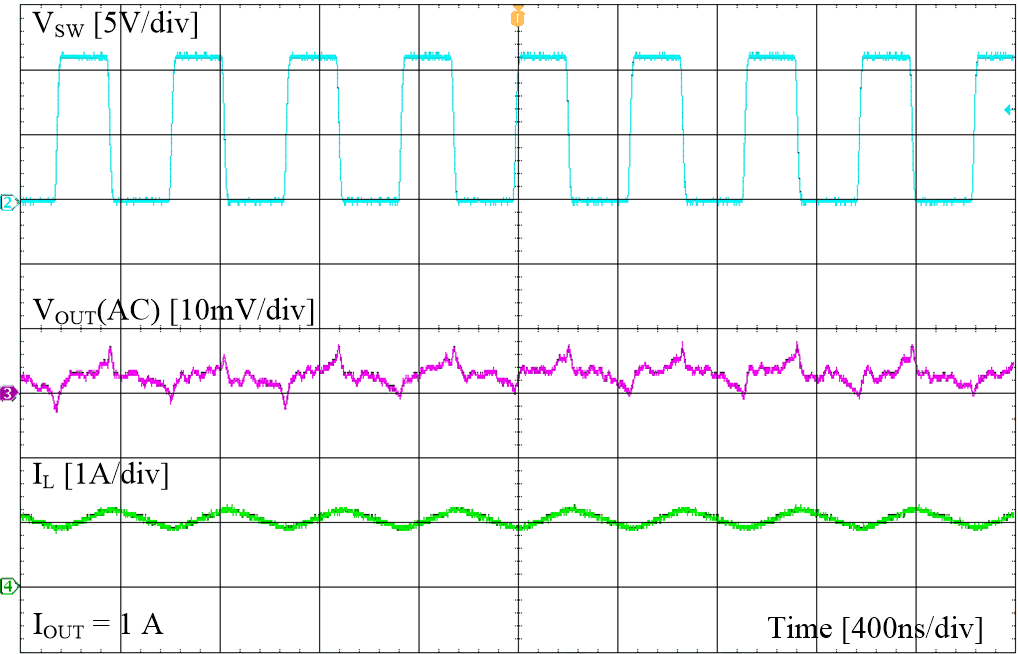

Figure 9-4 Ripple at Full Load

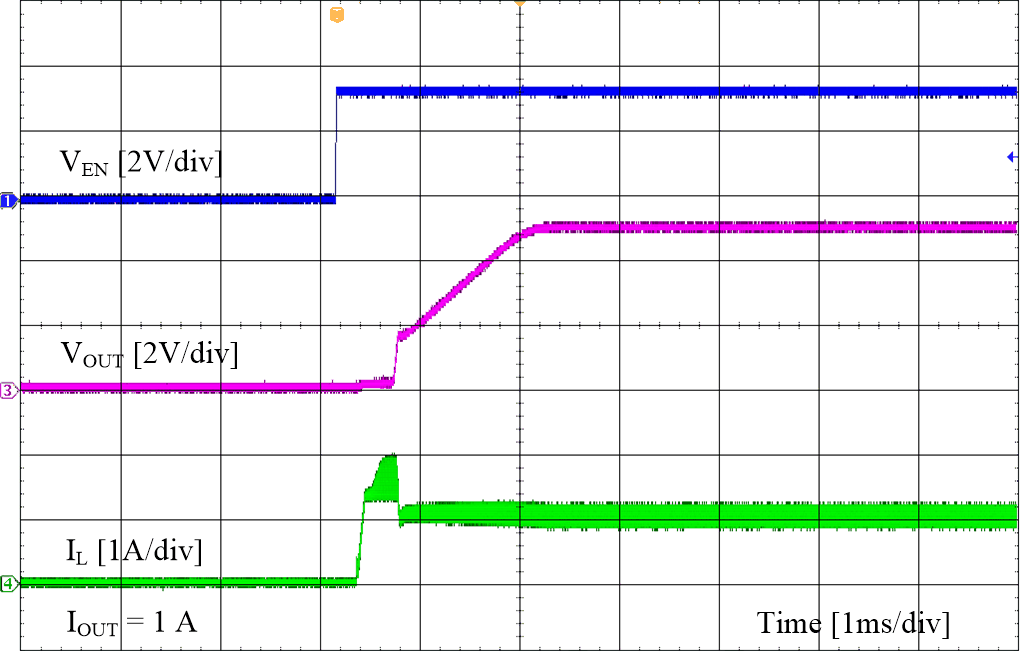

Figure 9-6 Start-Up by EN
Figure 9-8 Short
Protection
