As with any power conversion device, the LMR50410-Q1 dissipates internal power while operating. The effect of this power dissipation is to raise the internal temperature of the converter above ambient. The internal die temperature (T_J) is a function of the ambient temperature, the power loss, and the effective thermal resistance, R_θJA, of the device and PCB combination. The maximum internal die temperature for the LMR50410-Q1 must be limited to 150°C. This establishes a limit on the maximum device power dissipation and, therefore, the load current. Equation 16 shows the relationships between the important parameters. It is easy to see that larger ambient temperatures (T_A) and larger values of R_θJA reduce the maximum available output current. The converter efficiency can be estimated by using the curves provided in this data sheet. If the desired operating conditions cannot be found in one of the curves, then interpolation can be used to estimate the efficiency. Alternatively, the EVM can be adjusted to match the desired application requirements and the efficiency can be measured directly. The correct value of R_θJA is more difficult to estimate. As stated in the Semiconductor and IC Package Thermal Metrics Application Report, the value of R_θJA given in Section 7.4 is not valid for design purposes and must not be used to estimate the thermal performance of the application. The values reported in that table were measured under a specific set of conditions that are rarely obtained in an actual application.

Equation 16.

where

• η = efficiency

The effective R_θJA is a critical parameter and depends on many factors such as the following:

• Power dissipation
• Air temperature/flow
• PCB area
• Number of thermal vias under the package
• Adjacent component placement

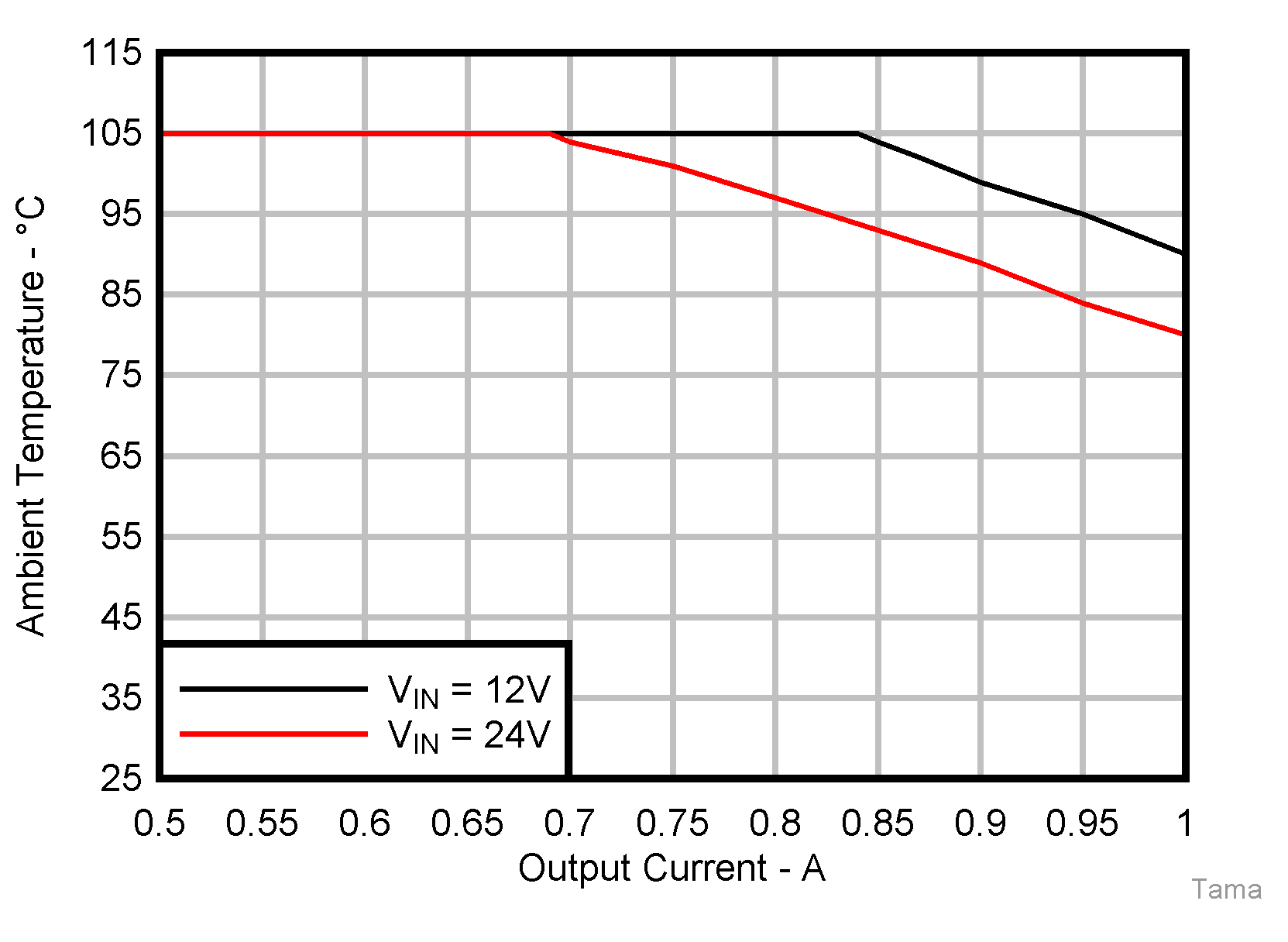

Figure 9-2 shows the typical curves of maximum output current versus ambient temperature. This data was taken with a device and PCB combination, giving an R_θJA which is 80°C/W. It must be remembered that the data given in these graphs are for illustration purposes only and the actual performance in any given application depends on all of the previously mentioned factors.

Figure 9-2 Maximum Output Current versus Ambient Temperature

Use the following resources as a guide to optimal thermal PCB design and estimating R_θJA for a given application environment:

• Thermal Design by Insight not Hindsight Application Report
• A Guide to Board Layout for Best Thermal Resistance for Exposed Pad Packages Application Report
• Semiconductor and IC Package Thermal Metrics Application Report
• Thermal Design Made Simple with LM43603 and LM43602 Application Report
• PowerPAD? Thermally Enhanced Package Application Report
• PowerPAD? Made Easy Application Report
• Using New Thermal Metrics Application Report
