ZHCSI00D April 2018 – September 2020 LMR36015

PRODUCTION DATA

封裝選項

機械數據 (封裝 | 引腳)

RNX|12
- MPQF465A

散熱焊盤機械數據 (封裝 | 引腳)

RNX|12
- QFND580A

訂購信息

10.2.2 Application Curves

Unless otherwise specified the following conditions apply: V_IN = 24 V, T_A = 25°C. The circuit is shown in Figure 10-1, with the appropriate BOM from Table 10-3.

V_OUT = 5 V

400 kHz

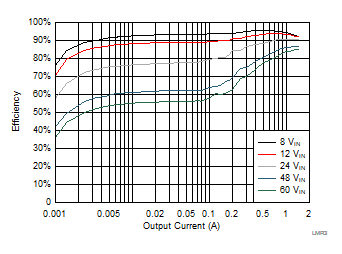

Figure 10-4 Efficiency

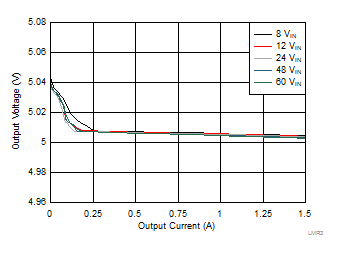

V_OUT = 5 V

400 kHz

Figure 10-6 Load Regulation

V_OUT = 5 V

400 kHz

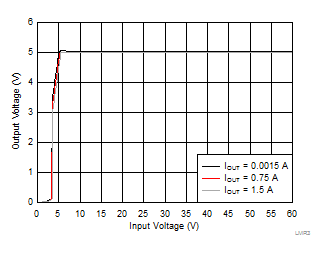

Figure 10-8 Line Regulation

V_OUT = 5 V

400 kHz

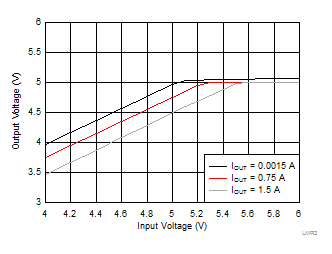

Figure 10-10 Overall Dropout Characteristic

V_OUT = 3.3 V

I_OUT= 0 A

R_FBT= 100 kΩ

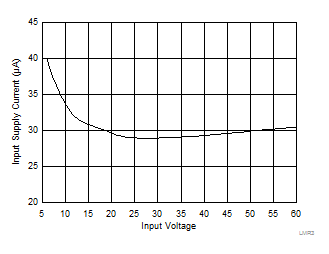

Figure 10-12 Input Supply Current

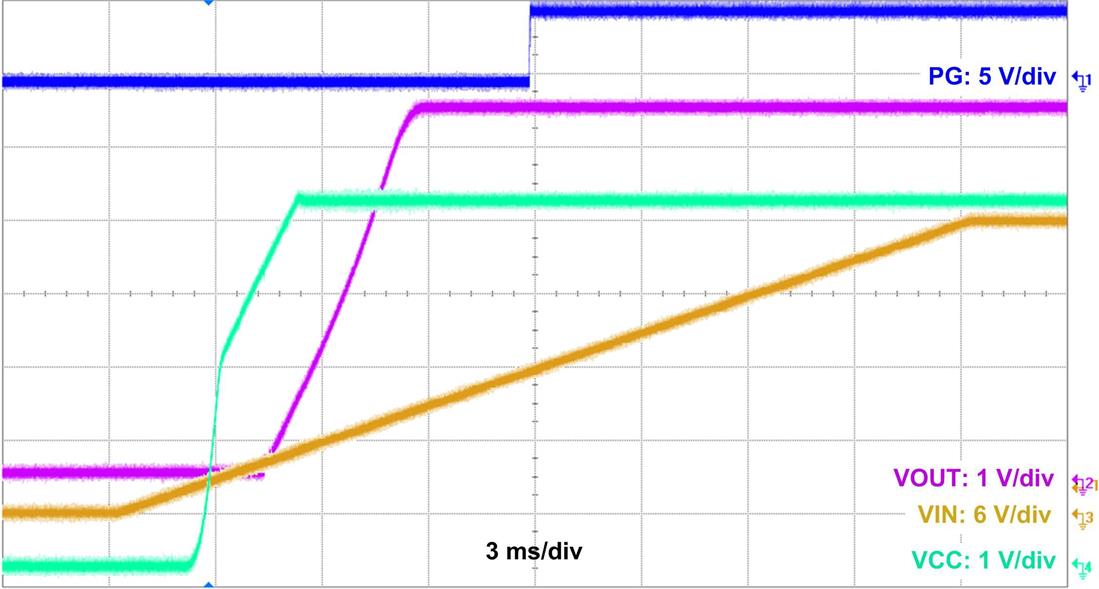

V_OUT = 5 V

400 kHz

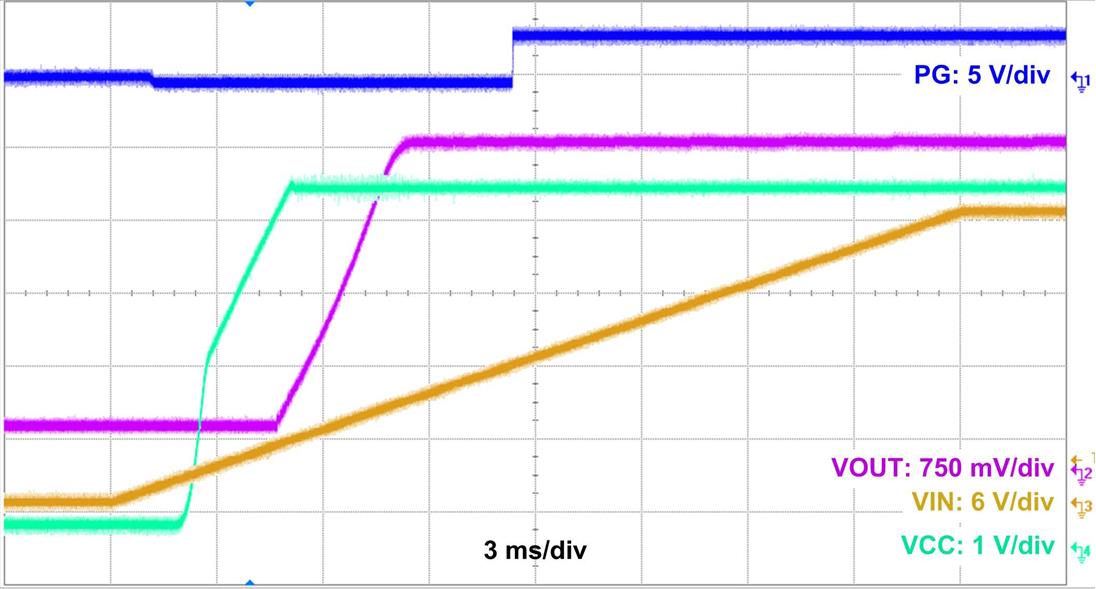

Figure 10-14 Start-Up Waveform

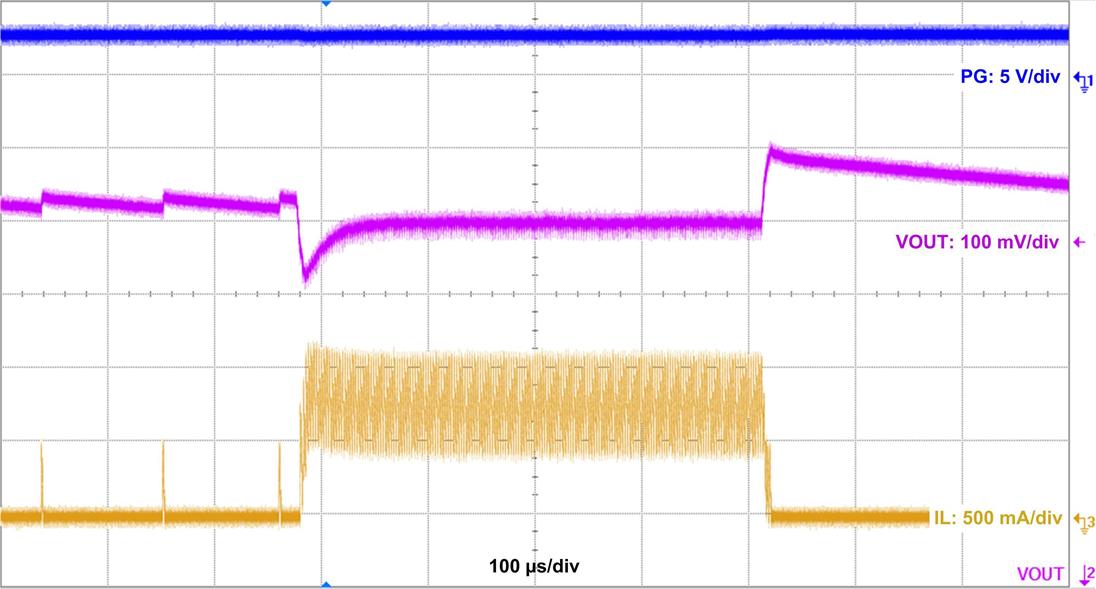

V_OUT = 5 V	400 kHz
I_LOAD= 10 mA - 0.75 A	Slew Rate = 1 μs/A

Figure 10-16 Load Transient

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 150 kHz to 30 MHz

Figure 10-18 Conducted EMI vs. CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)

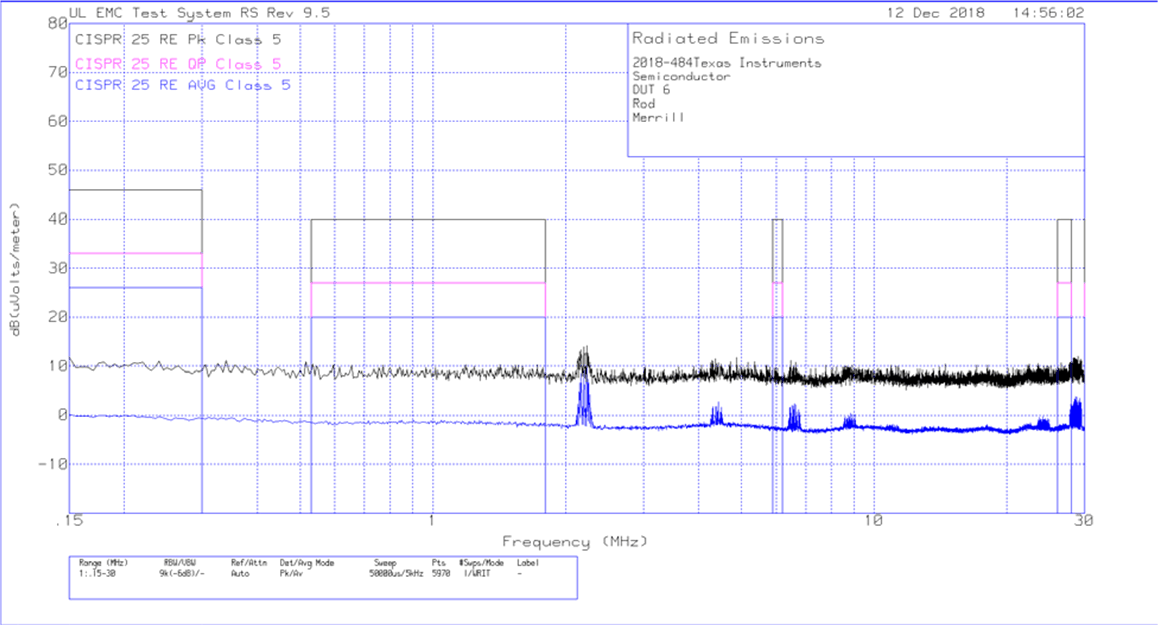

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 150 kHz to 30 MHz

Figure 10-20 Radiated EMI Rod vs. CISPR25 Limits

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 30 MHz to 200 MHz

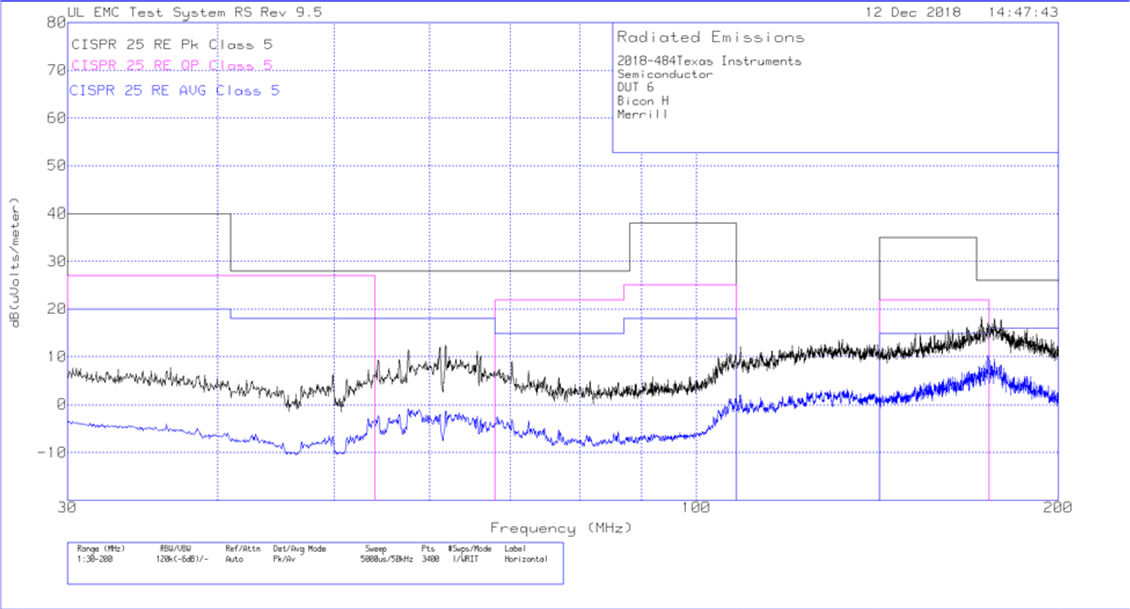

Figure 10-22 Radiated EMI Bicon Horizontal vs. CISPR25 Limits

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 200 MHz to 1 GHz

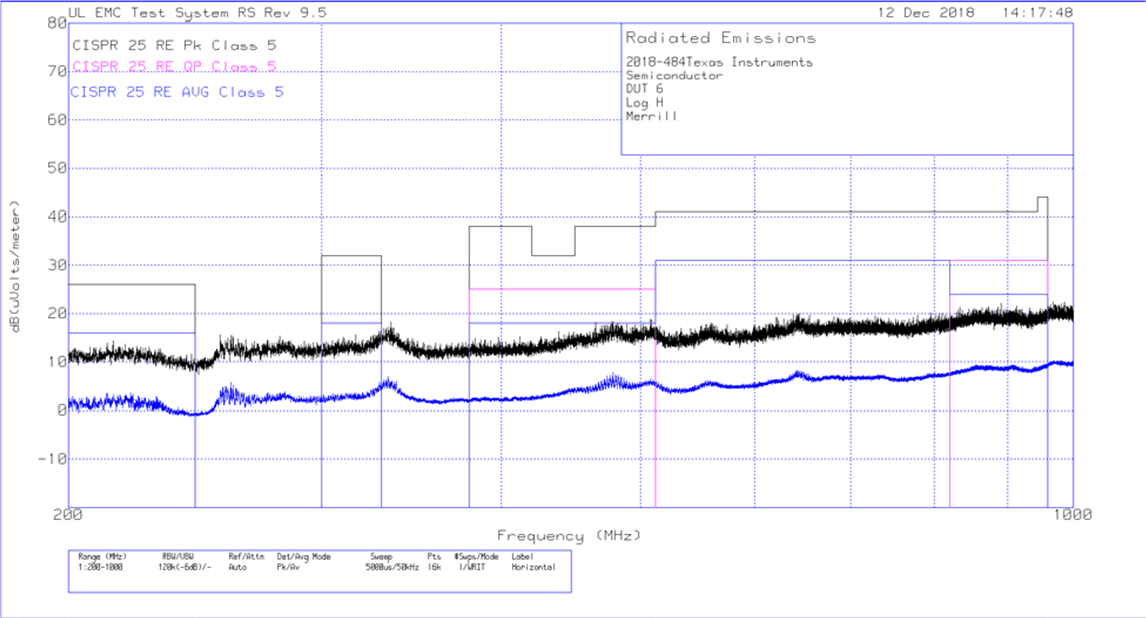

Figure 10-24 Radiated EMI Log Horizontal vs. CISPR25 Limits

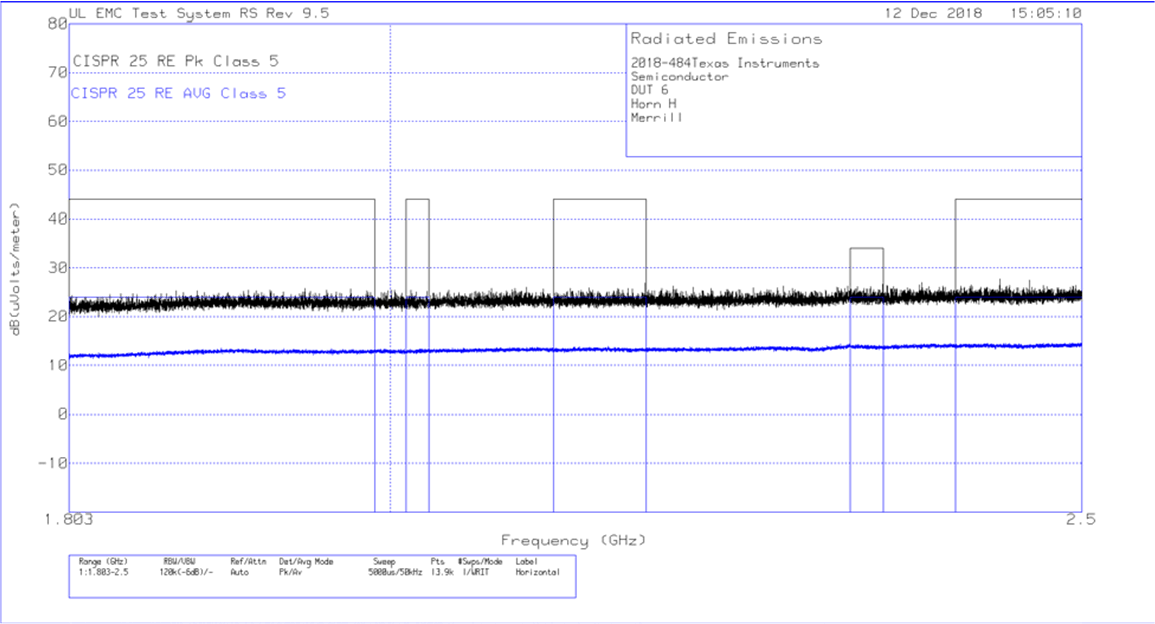

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 1.8 GHz to 2.5 GHz

Figure 10-26 Radiated EMI Horn Horizontal vs. CISPR25 Limits

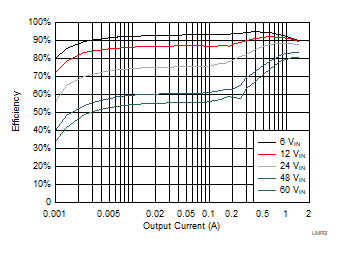

V_OUT = 3.3 V

400 kHz

Figure 10-5 Efficiency

V_OUT = 3.3 V

400 kHz

Figure 10-7 Load Regulation

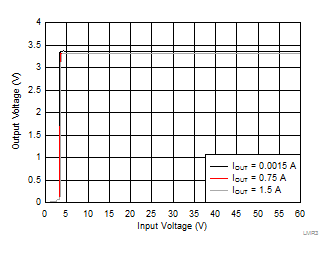

V_OUT = 3.3 V

400 kHz

Figure 10-9 Line Regulation

V_OUT = 5 V

400 kHz

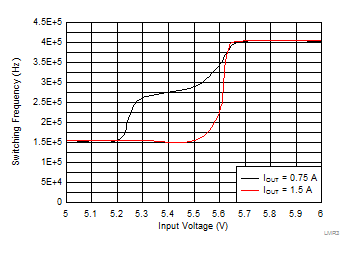

Figure 10-11 Frequency Dropout Characteristic

V_OUT = 3.3 V

400 kHz

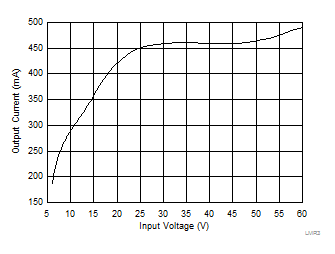

Figure 10-13 Mode Change Thresholds

V_OUT = 3.3 V

400 kHz

Figure 10-15 Start-Up Waveform

V_OUT = 3.3 V	400 kHz
I_LOAD= 10 mA - 0.75 A	Slew Rate = 1 μs/A

Figure 10-17 Load Transient

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 30 MHz to 108 MHz

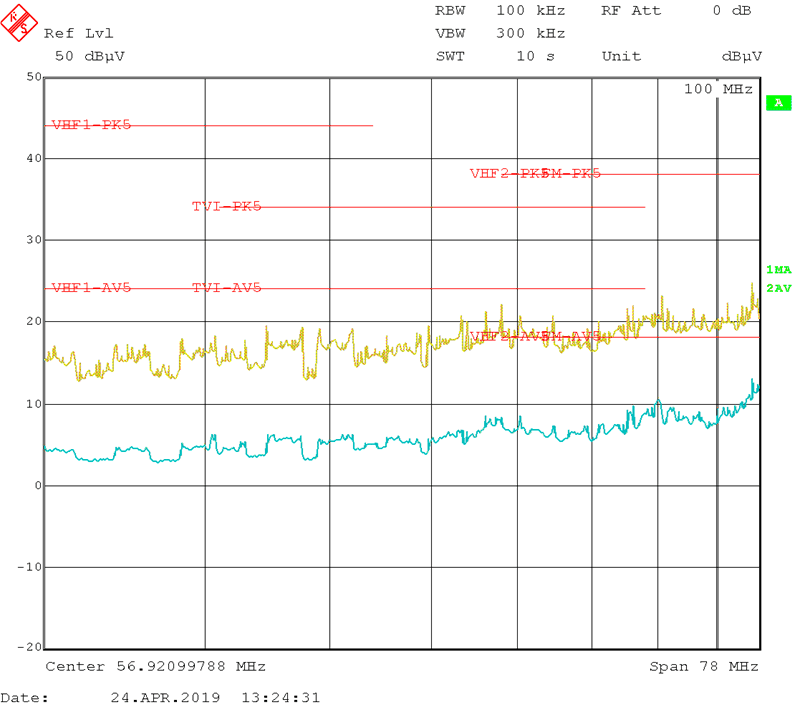

Figure 10-19 Conducted EMI vs. CISPR25 Limits (Yellow: Peak Signal, Blue: Average Signal)

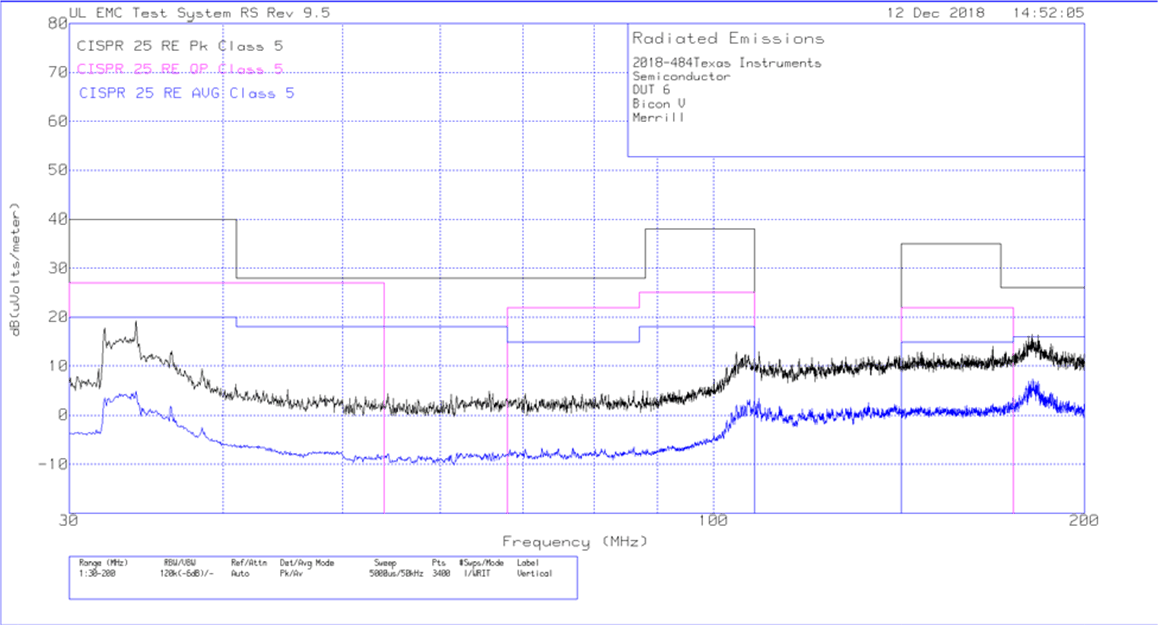

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 30 MHz to 200 MHz

Figure 10-21 Radiated EMI Bicon Vertical vs. CISPR25 Limits

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 200 MHz to 1 GHz

Figure 10-23 Radiated EMI Log Vertical vs. CISPR25 Limits

V_IN = 13.5 V	V_OUT = 5 V	I_OUT = 1.5 A
Frequency Tested: 1.83 GHz to 2.5 GHz

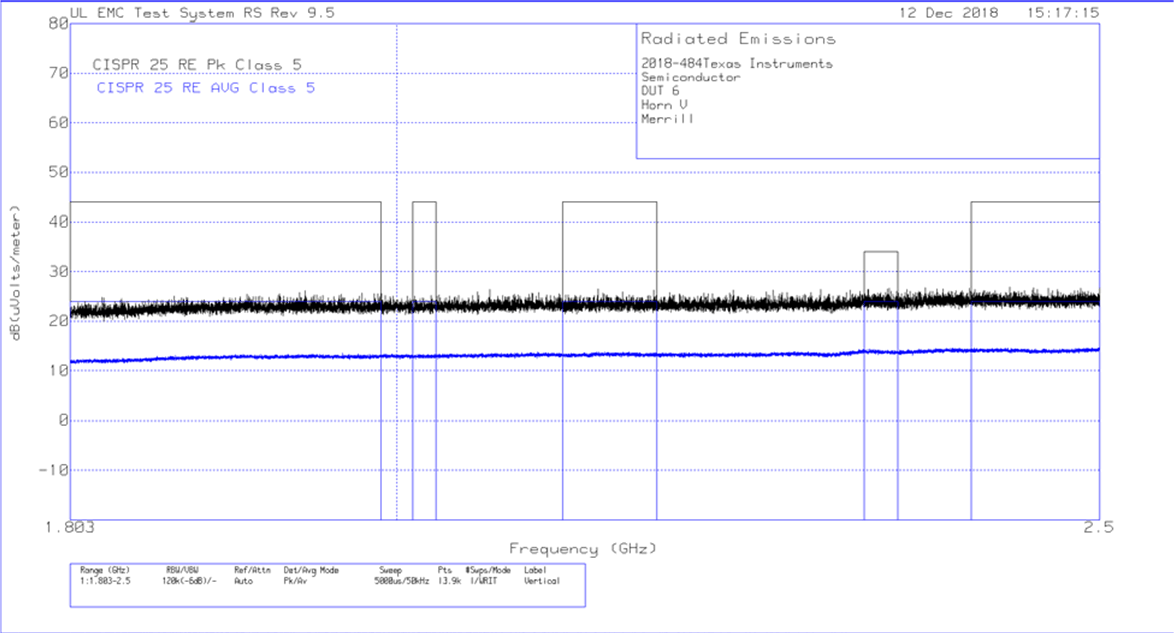

Figure 10-25 Radiated EMI Horn Vertical vs. CISPR25 Limits

Figure 10-27 Recommended Input EMI Filter
