10.2 Layout Example

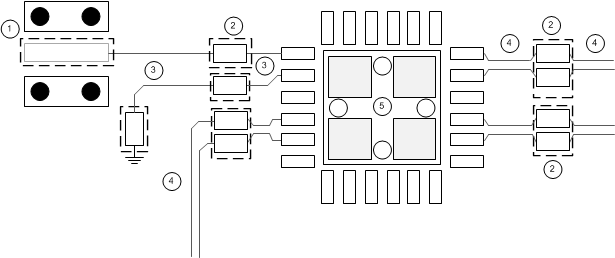

The following example demonstrates the high speed signal trace routing to the LMH1219.
- BNC footprint and anti-pad: Consult BNC manufacturer for proper size.
- Anti-pad under passive components.
- 75-Ω single ended trace. Trace width should be similar to that of the IC landing pad (10 mil).
- 100-Ω coupled trace.
- Vias with solder mask.
Figure 41. LMH1219 PCB Layout Example
