6.8 Typical Characteristics
TA = 25°C and VIN = VDDIO = VDD_CDR = 2.5 V (unless otherwise noted)

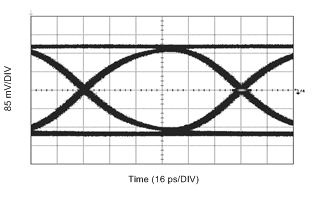

Figure 3. 10.3125 Gbps, IN1: 20 in. FR4 Trace

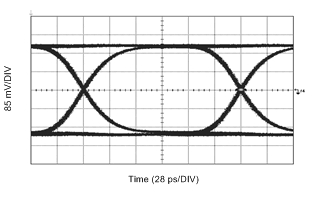

Figure 5. 5.94 Gbps, IN0: 120 m Belden 1694A

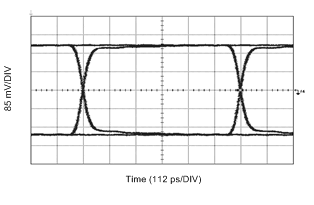

Figure 7. 1.485 Gbps, IN0: 280 m Belden 1694A

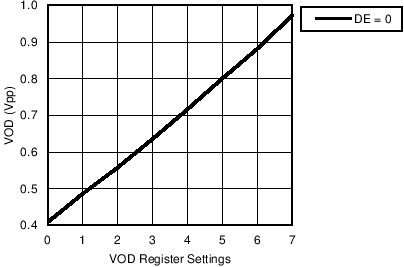

Figure 9. VOD vs. VOD and DEM Register Settings

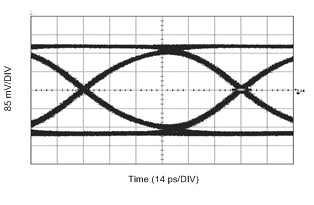

Figure 4. 11.88 Gbps, IN0: 75 m Belden 1694A

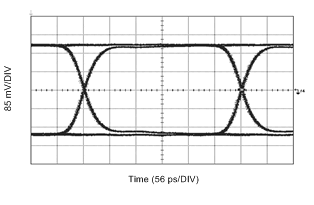

Figure 6. 2.97 Gbps, IN0: 200 m Belden 1694A
Figure 8. 270 Mbps, IN0: 600 m Belden 1694A

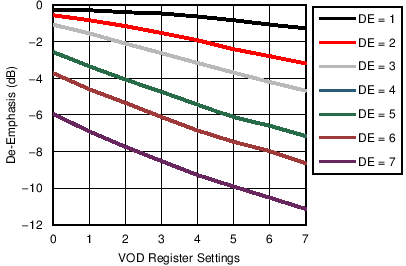

Figure 10. De-Emphasis vs. VOD and DEM Register Settings
